Buy Rohde MO-26.128.01 Machine handle Silver (L x W x H) 145 x 26 x 55 mm 4 pc(s)

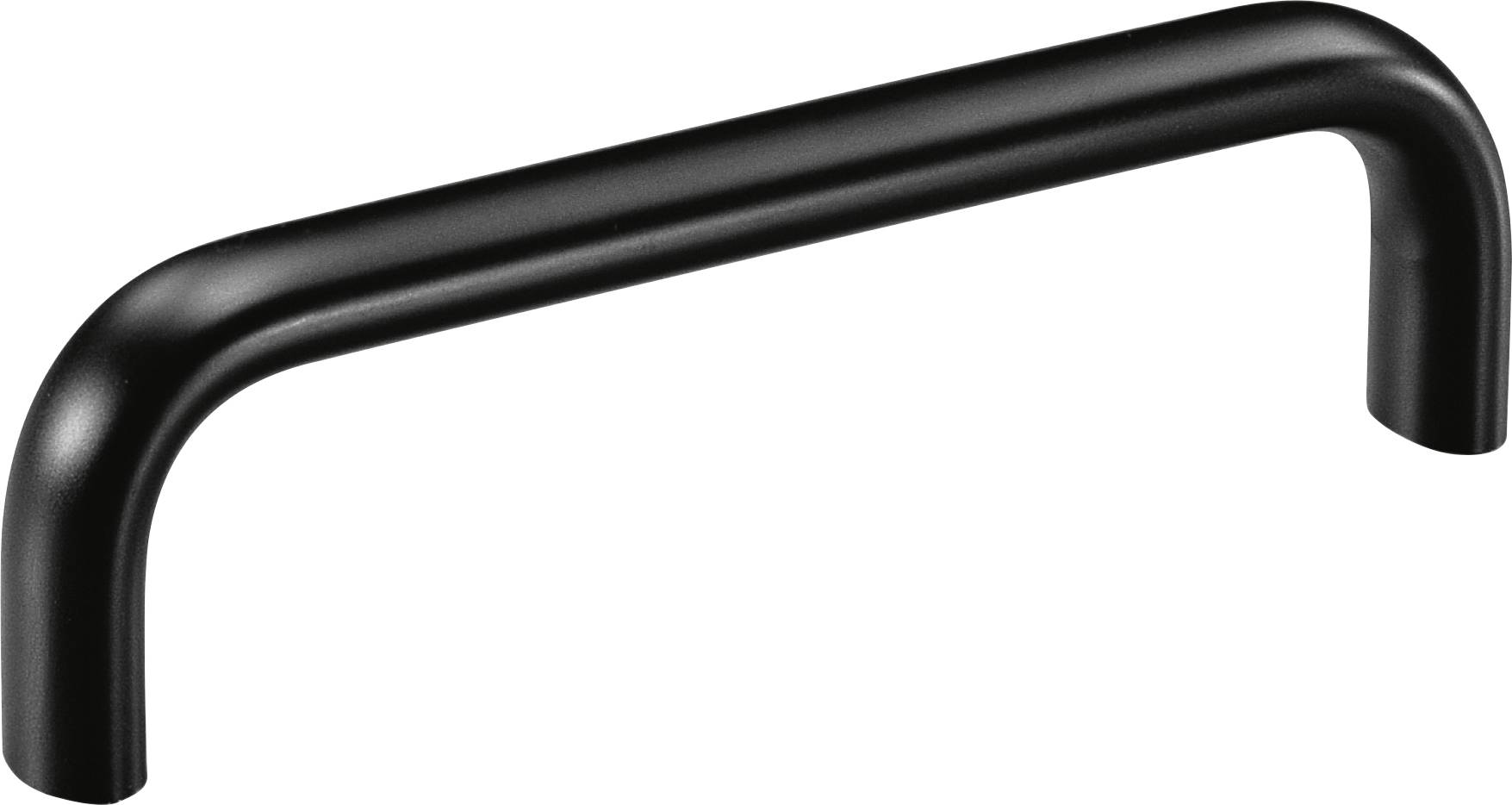

Black, curved handle with a simple design, suitable for furniture or drawers. Rectangular shape with rounded corners.

Image similar

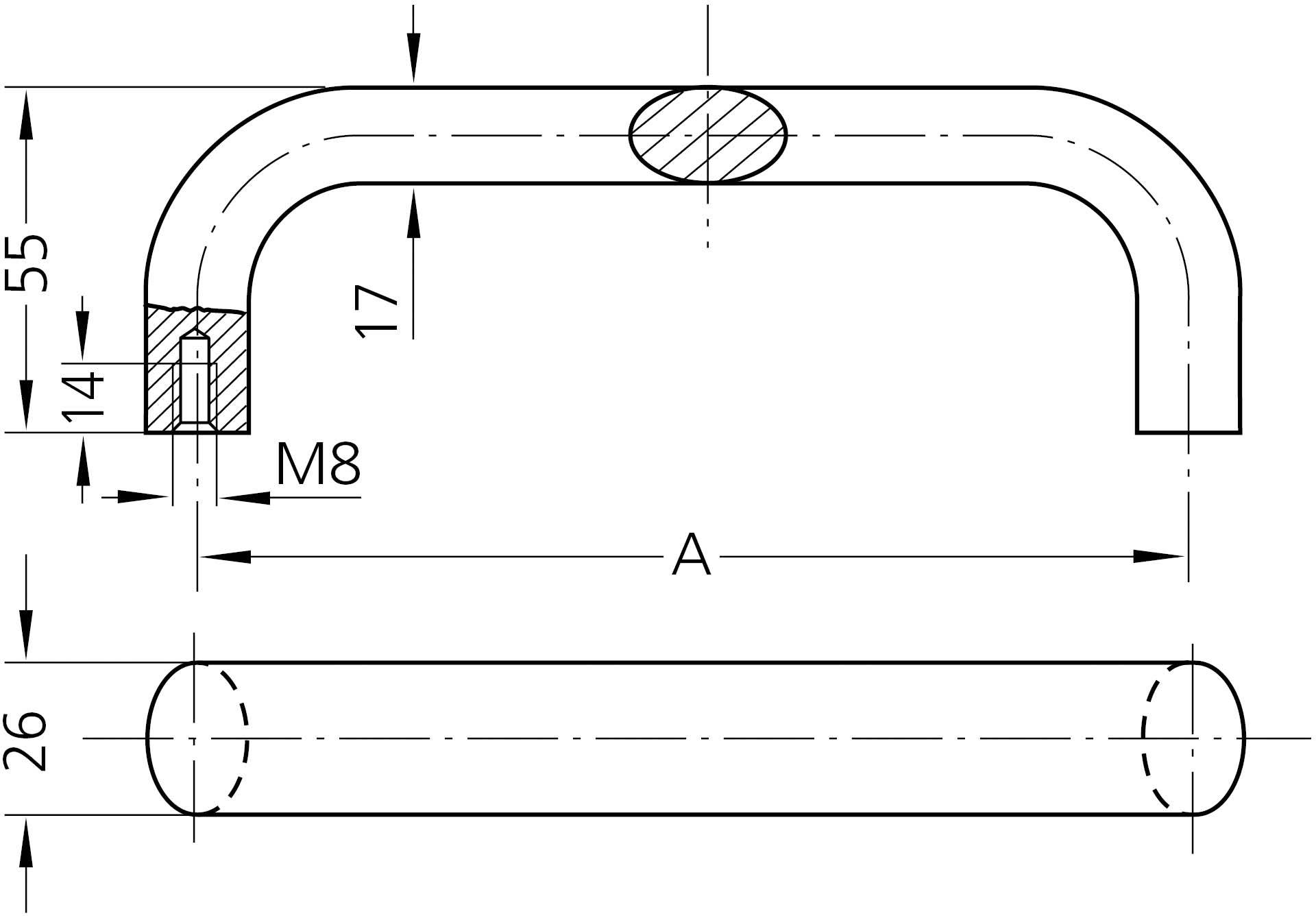

Technical drawing of a U-shaped handle with dimensions: 55 mm height, 26 mm width, M8 thread. Side view shows 17 mm diameter.

1/2

Image similar

Product type

Machine handle

Material

Aluminium

Dim

(L x W x H) 145 x 26 x 55 mm

Width

26 mm

Height

55 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Rohde machine handle, made of oval aluminum

Content: 4 pieces

Technical specifications

Surface treatment: Anodized
Material (material): AlMgSi 0.5
Manufacturer color: silver
Mounting method: Internal thread
Series name: MON-26
Handle type (series): Grip series MO
Hole diameter: M8

Dim: (L x W x H) 145 x 26 x 55 mm

Product type: Machine handle

Material: Aluminium

Width: 26 mm

Height: 55 mm

Length: 145 mm

Hole spacing: 128 mm

Factory colour: Silver

Content: 4 pc(s)

Hole Ø: 8 mm

Max. load capacity: 1000 N

Type: MO-26.128.01

Documents & Downloads

Datasheet

Datasheet 2343920 Rohde MO-26.128.01 Machine handle Silver (L x W x H) 145 x 26 x 55 mm 4 pc(s)

User & Safety Instructions

User & Safety Instructions 2343920 Rohde MO-26.128.01 Machine handle Silver (L x W x H) 145 x 26 x 55 mm 4 pc(s)

Description

For machine, device and
Apparatus construction in two surface qualities.
For screw mounting
from front or rear.

Material and surface:
Oval profile aluminum
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized. Powder-coated with fine structure
in silver or
Black.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.
