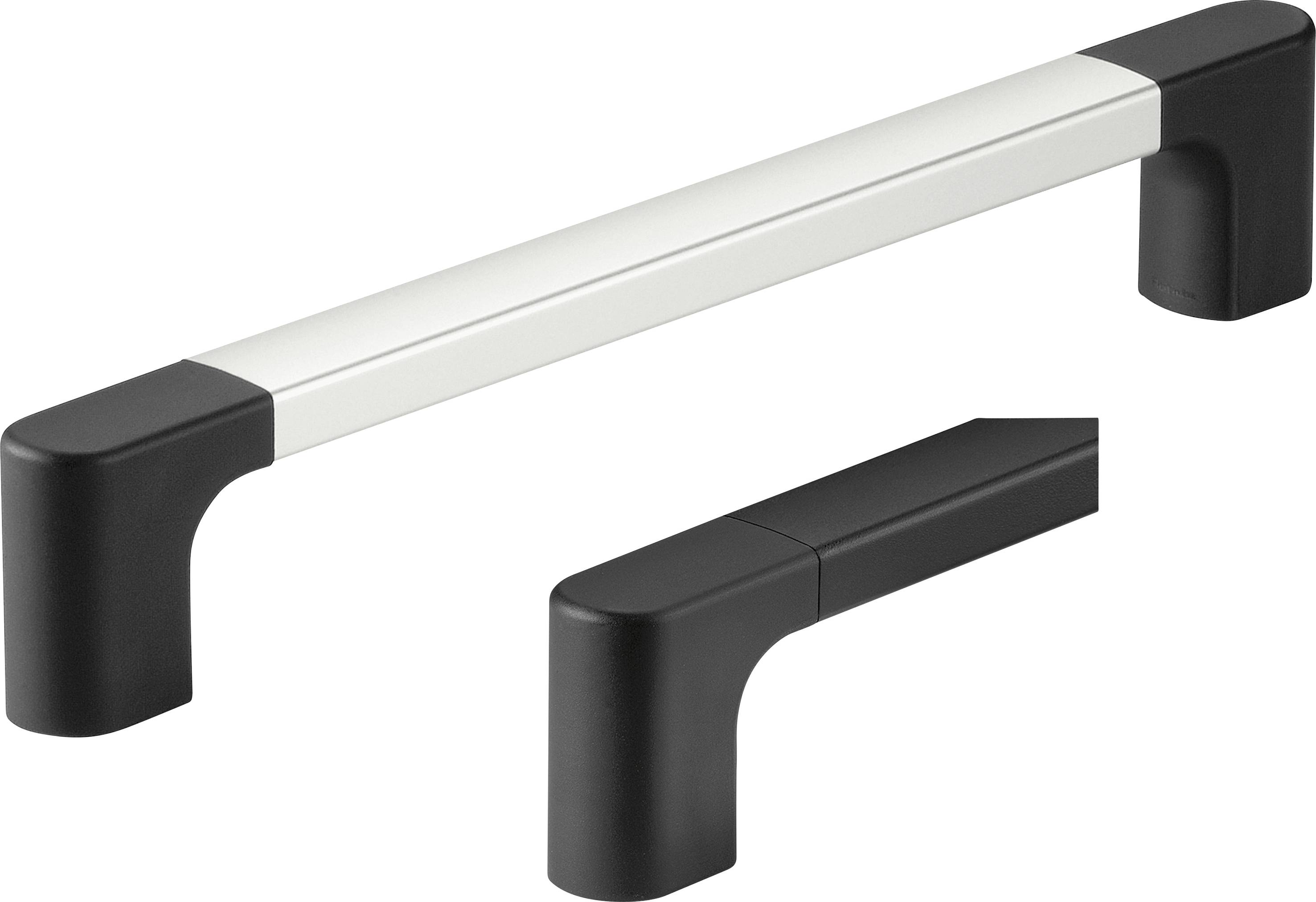

Image similar
1/2

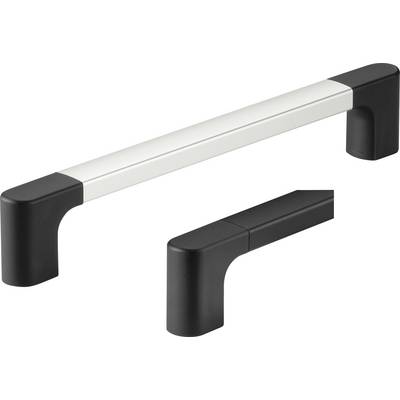

Image similar
Rohde MS-02.300.11 Handle Black, Silver (L x W x H) 360 x 28 x 60 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Handle
Material
Aluminium
Dim
(L x W x H) 360 x 28 x 60 mm
Width
28 mm
Height
60 mm
Datasheet (PDF)
Highlights & Details
Rohde Handle Series MS-02, Steg blasted, satin+natural, anodized colors, PA6 legs
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: MS-02
- Handle type (series): Grip series MS
- Hole diameter: M6
- Dim
(L x W x H) 360 x 28 x 60 mm
- Product type
Handle
- Material
Aluminium
- Width
28 mm
- Height
60 mm
- Length
360 mm
- Hole spacing
300 mm
- Factory colour
Black
Silver
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
MS-02.300.11
Documents & Downloads
Datasheet
Datasheet 2343957 Rohde MS-02.300.11 Handle Black, Silver (L x W x H) 360 x 28 x 60 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343957 Rohde MS-02.300.11 Handle Black, Silver (L x W x H) 360 x 28 x 60 mm 2 pc(s)
Description
With plastic legs
And aluminum profile.
Material and surface:
Handle legs made of glass-ball reinforced
Polyamide PA 6
Black, similar to RAL 9005,
Semi-matt with fine structure.
Threaded sockets made of brass.
Handle bar made of extruded
Aluminum AlMgSi 0.5; matt
and anodized in natural colors.
Alternatively handle bar black powder coated
Similar to RAL 9005.
This text is machine translated.
And aluminum profile.
Material and surface:
Handle legs made of glass-ball reinforced
Polyamide PA 6
Black, similar to RAL 9005,
Semi-matt with fine structure.
Threaded sockets made of brass.
Handle bar made of extruded
Aluminum AlMgSi 0.5; matt
and anodized in natural colors.
Alternatively handle bar black powder coated
Similar to RAL 9005.
This text is machine translated.
