Rohde MV-22.140.01 Universal handle Silver (W x H) 22 mm x 55 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Universal handle
Material
Aluminium

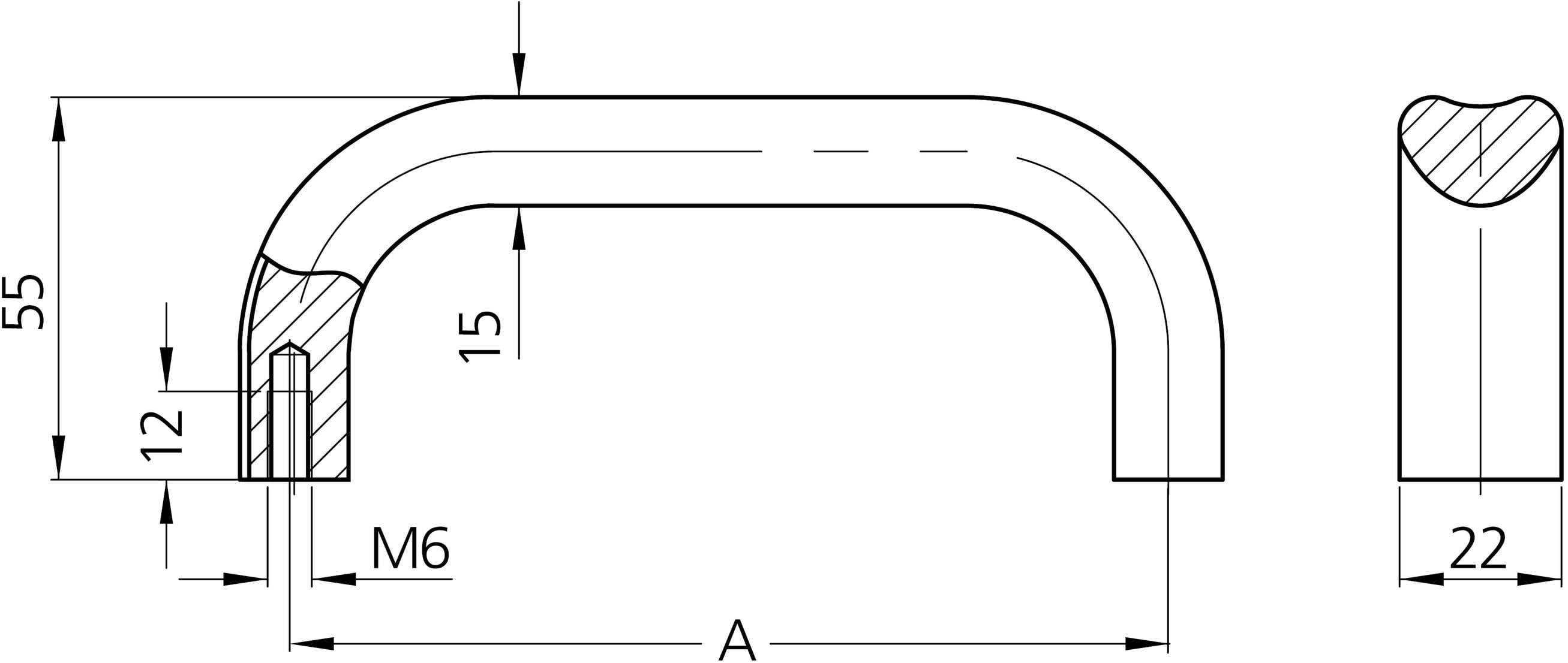

Dim
(W x H) 22 mm x 55 mm
Width
22 mm
Height
55 mm
Datasheet (PDF)
Highlights & Details
Rohde solid aluminum handle, anodized
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: silver
- Mounting method: Internal thread
- Series name: MV-22
- Handle type (series): Grip series MV
- Hole diameter: M6
- Dim
(W x H) 22 mm x 55 mm
- Product type
Universal handle
- Material
Aluminium
- Width
22 mm
- Height
55 mm
- Hole spacing
140 mm
- Factory colour
Silver
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
MV-22.140.01
Documents & Downloads
Datasheet
Datasheet 2343960 Rohde MV-22.140.01 Universal handle Silver (W x H) 22 mm x 55 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343960 Rohde MV-22.140.01 Universal handle Silver (W x H) 22 mm x 55 mm 2 pc(s)
Description
Material and surface:
Solid aluminum handle
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.
