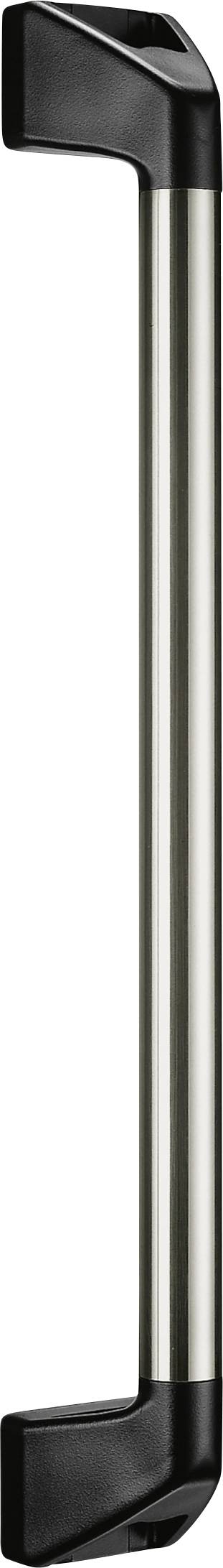

Rohde RE-35.300.EG Rod handle Stainless steel (L x W x H) 350 x 35 x 90 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rod handle
Material
Steel
Dim
(L x W x H) 350 x 35 x 90 mm
Width
35 mm
Height
90 mm
Datasheet (PDF)
Highlights & Details
Rohde stainless steel pipe handle, can be plugged together
- Content: 1 pcs.
Technical specifications
- Surface treatment: Brushed
- Material (material): 1.4301 (304), PA6
- Manufacturer color: Stainless steel
- Mounting method: Internal thread
- Series name: RE-35
- Grip type (series): Grip series RE
- Hole diameter: M10
- Dim
(L x W x H) 350 x 35 x 90 mm
- Product type
Rod handle
- Material
Steel
- Width
35 mm
- Height
90 mm
- Length
350 mm
- Hole spacing
300 mm
- Factory colour
Stainless steel
- Content
1 pc(s)
- Hole Ø
10 mm
- Max. load capacity
1000 N
- Type
RE-35.300.EG
Documents & Downloads
Datasheet
Datasheet 2344131 Rohde RE-35.300.EG Rod handle Stainless steel (L x W x H) 350 x 35 x 90 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344131 Rohde RE-35.300.EG Rod handle Stainless steel (L x W x H) 350 x 35 x 90 mm 1 pc(s)
Description
Push-together tube handles
Made of plastic and stainless steel in
Heavy design, for
Machinery, technical equipment
And doors.
Material and surface:
Handle legs made of heavy-duty
Polyamide PA 6
glass ball reinforced, black,
Similar to RAL 9005, semi-matt
With fine structure.
Pipes ø 35 x 2 mm made of noble steel,
Material no. 1.4301; fine-ground.
Threaded inserts
Stainless steel, material no. 1.4305;
fine-rotated.
Constructive advantages:
Fit the tube to the exact fitting
The plastic stud
Clamping strips; by O-rings
spritz waterproof. Two different
Mounting inserts
It can be screwed on
from the front, from the back and with each other.
This text is machine translated.
Made of plastic and stainless steel in
Heavy design, for
Machinery, technical equipment
And doors.
Material and surface:
Handle legs made of heavy-duty
Polyamide PA 6
glass ball reinforced, black,
Similar to RAL 9005, semi-matt
With fine structure.
Pipes ø 35 x 2 mm made of noble steel,
Material no. 1.4301; fine-ground.
Threaded inserts
Stainless steel, material no. 1.4305;
fine-rotated.
Constructive advantages:
Fit the tube to the exact fitting
The plastic stud
Clamping strips; by O-rings
spritz waterproof. Two different
Mounting inserts
It can be screwed on
from the front, from the back and with each other.
This text is machine translated.

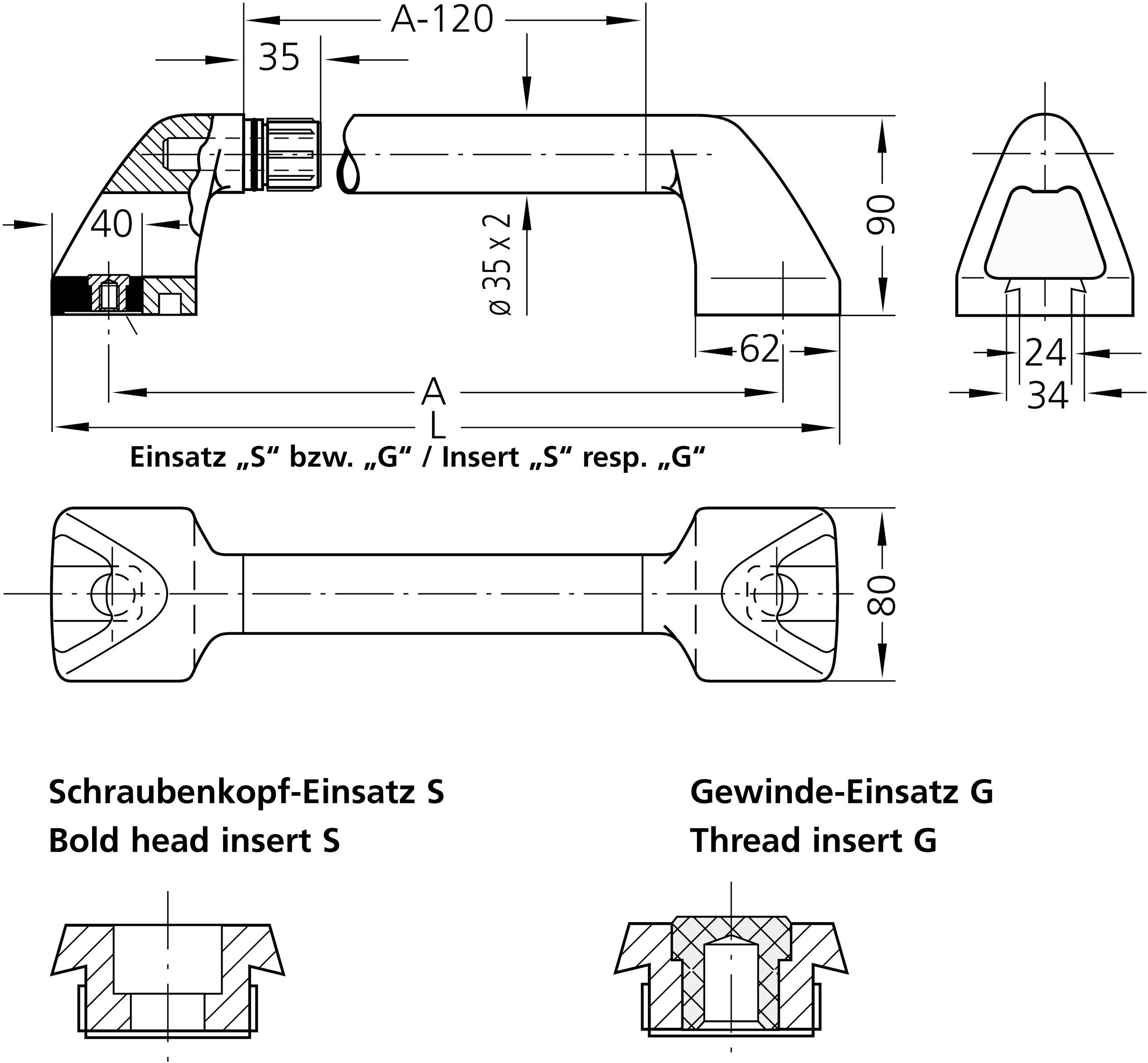

Scope of delivery
- Delivery scope
- Handles with screw head insert
- "S” incl. cylinder screw with
- Hexagon socket made of stainless steel
- M10 x 25 DIN 912, stainless steel nuts DIN 934 and washers DIN 125.
- Handles with threaded insert "G"
- Without screws.
