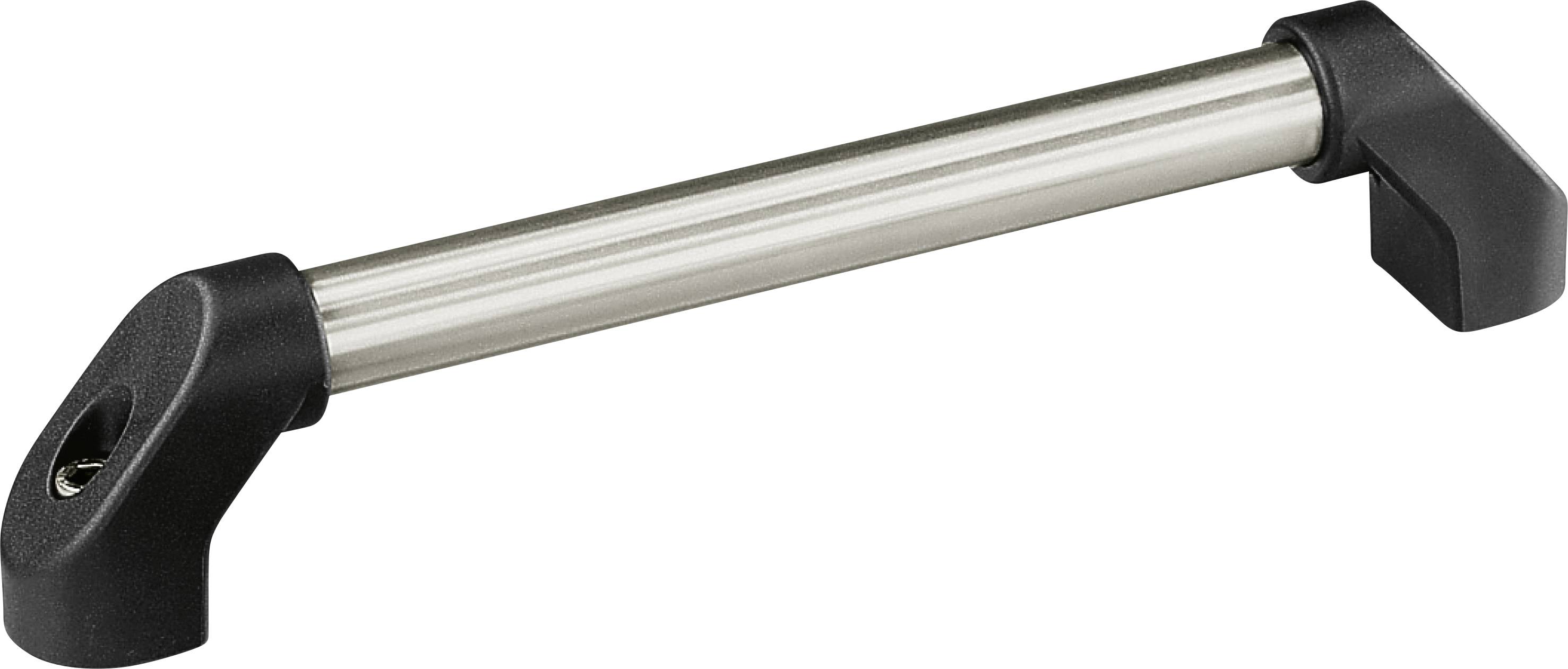

Rohde RS-30.600.37 Machine handle Black, Silver (L x W x H) 644 x 30 x 80 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Machine handle
Material
Steel
Dim
(L x W x H) 644 x 30 x 80 mm
Width
30 mm
Height
80 mm
Datasheet (PDF)
Highlights & Details
Rohde machine handle, can be plugged together, incl. BEF. Material
- Content: 1 pcs.
Technical specifications
- Surface treatment: Brushed
- Material (material): 1.4301 (304), PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: c:Round bore
- Series name: RS-30
- Handle type (series): RS grip series
- Hole diameter: M10
- Dim
(L x W x H) 644 x 30 x 80 mm
- Product type
Machine handle
- Material
Steel
- Width
30 mm
- Height
80 mm
- Length
644 mm
- Hole spacing
600 mm
- Factory colour
Black
Silver
- Content
1 pc(s)
- Hole Ø
10 mm
- Max. load capacity
1000 N
- Type
RS-30.600.37
Documents & Downloads
Datasheet
Datasheet 2344284 Rohde RS-30.600.37 Machine handle Black, Silver (L x W x H) 644 x 30 x 80 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344284 Rohde RS-30.600.37 Machine handle Black, Silver (L x W x H) 644 x 30 x 80 mm 1 pc(s)
Description
RS grip series
Variable grip series in the Rohde-
Design in 2 execution sizes
For the machine and
Plant construction; especially for
Large screw spacing
movement.
Material:
Handle legs and caps
Made of highly resilient polyamide
PA 6, glass-ball reinforced,
Black, similar to RAL 9005,
Semi-matt, with fine structure. Connection pipes made of aluminum,
AIMgSi 0.5.
Constructive advantages:
The handle legs have in the
Tube mounting area 4 clamping strips; when pressing in the
Round tubes are cut off
And ensure a snug fit.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
Design C:
Connection pipe black
Powder-coated with fine structure.
This text is machine translated.
Variable grip series in the Rohde-
Design in 2 execution sizes
For the machine and
Plant construction; especially for
Large screw spacing
movement.
Material:
Handle legs and caps
Made of highly resilient polyamide
PA 6, glass-ball reinforced,
Black, similar to RAL 9005,
Semi-matt, with fine structure. Connection pipes made of aluminum,
AIMgSi 0.5.
Constructive advantages:
The handle legs have in the
Tube mounting area 4 clamping strips; when pressing in the
Round tubes are cut off
And ensure a snug fit.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
Design C:
Connection pipe black
Powder-coated with fine structure.
This text is machine translated.
Scope of delivery
- Delivery scope
- RS-20 including black
- Zinc-plated socket head screws
- (Chrome VI free) with hexagon socket
- M8 x 30 DIN 912 and galvanized
- DIN 934 nuts with
- Under washers DIN 125.
- RS-30 as RS-20, but with
- Screws M10 x 45.
