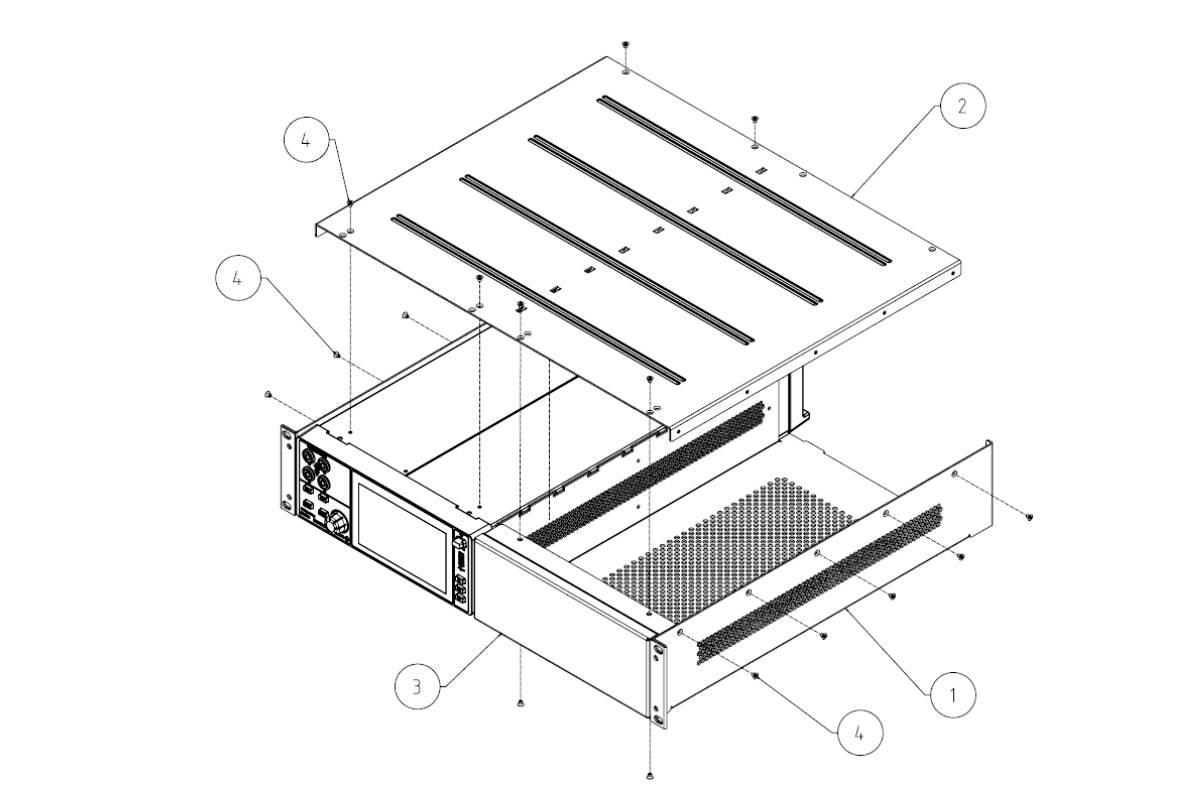

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Rohde & Schwarz 3638.7813.02 HZN96 Fitting kit 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 368.91 / piece)
€ 368.91
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Fitting kit
- Compatible with
Rohde & Schwarz
- Height
2 U
- Type
HZN96
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2368751 Rohde & Schwarz 3638.7813.02 HZN96 Fitting kit 1 pc(s)
Description
It is intended for installation of the following devices and models:
· R&S®SMCV100B Vector Signal generator (1432.7000.02)
· R&S®NGL201 1-channel power supply 60W (3638.3376.02)
· R&S®NGL202 2-channel power supply 120W (3638.3376.03)
· R&S®NGM201 1-channel power supply 60W (3638.4472.02)
· R&S®NGM202 2-channel power supply 120W (3638.4472.03)
The R&S HZN96 Rack Adapter 2HU is designed for the installation of devices of the R&S SMCV100B Vector Signal Generator or the R&S NGx Series in 19 inch systems. The dimensions of the installation kit are according to the standard for 19 inch systems DIN 60297-3-101.
This text is machine translated.
· R&S®SMCV100B Vector Signal generator (1432.7000.02)
· R&S®NGL201 1-channel power supply 60W (3638.3376.02)
· R&S®NGL202 2-channel power supply 120W (3638.3376.03)
· R&S®NGM201 1-channel power supply 60W (3638.4472.02)
· R&S®NGM202 2-channel power supply 120W (3638.4472.03)
The R&S HZN96 Rack Adapter 2HU is designed for the installation of devices of the R&S SMCV100B Vector Signal Generator or the R&S NGx Series in 19 inch systems. The dimensions of the installation kit are according to the standard for 19 inch systems DIN 60297-3-101.
This text is machine translated.
Scope of delivery
- The R&S HZN96 Rack Adapter 2HU is supplied with a blind cover and a closed cover. All screws required for installation are in the
- Included in the delivery.
