Buy Rohde & Schwarz R&S®HMP4040COM Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 384 W remote controlled, programmabl

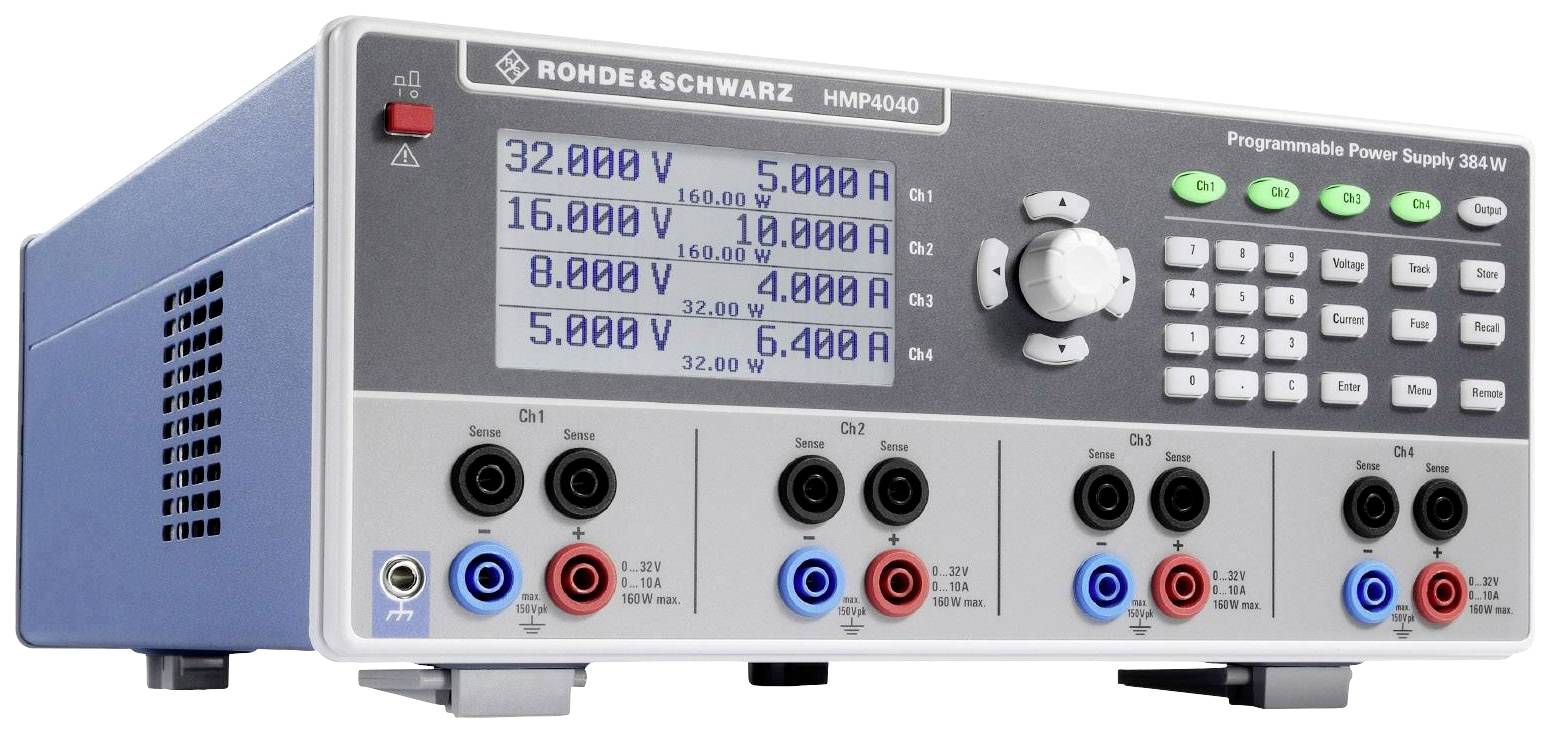

Laboratory power supply with four channels, displaying various voltage and current values. Buttons and connections for settings and measurements.

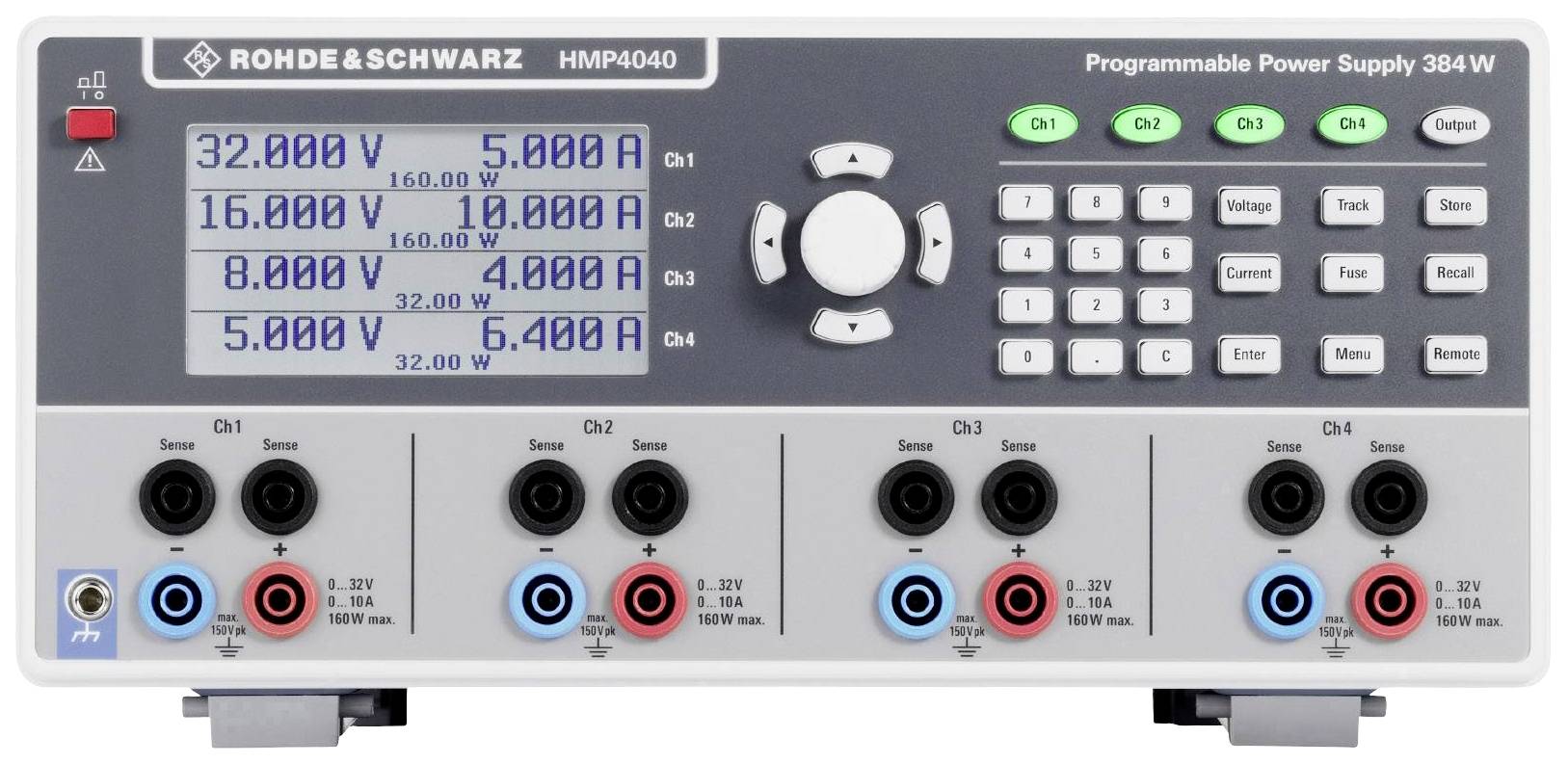

The image shows a programmable multi-channel power supply. The display indicates voltage and current for each channel.

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,936.97 / piece)

€ 2,936.97

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Rohde & Schwarz HMP4040COM 4-CH DC-power supply 32V/10A inc. HO732 Dual interface (USB/Ethernet)

No. of outputs 4 x
32 (max.) / 10 A (max.)
32 V (max.) / 10 A (max.)
32 V (max.) / 10 A (max.)
32 V (max.) / 10 A (max.)
384 W
remote controlled, programmable

Technical specifications

Load regulation voltage: ±(% of output + offset) < 0.01 % + 2 mV
Load regulation Current: ±(% of output + offset) < 0.01 % + 250 μA
Setting accuracy voltage: ±(% of output + offset) < 0.05 % + 5 mV
Setting accuracy current: ±(% of output + offset) < 0.1 % + 5 mA
Sense function for each channel

Type: R&S®HMP4040COM

Product type: Bench PSU (adjustable voltage)

No. of outputs: 4 x

: 384 W

Technology: Linear regulated PSU

Features: remote controlled
programmable

Dim: (L x W x H) 285 x 405 x 136 mm

: Manufacturer's standards (no certificate)

Weight: 12.8 kg

Output voltage (max.): 32 V

Output voltage 2 (max.): 32 V

Output voltage 3 (max.): 32 V

Output voltage 4 (max.): 32 V

Max. output current: 10 A

Output current 2 (max.): 10 A

Output current 3 (max.): 10 A

Output current 4 (max.): 10 A

Load balance: 0.01 %

Width: 405 mm

Height: 136 mm

Length: 285 mm

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

No. of outputs

Output voltage 3 (range)

Output current

Rohde & Schwarz R&S®HMP4040COM Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 384 W remote controlled, programmable No. of outputs 4 x

Item no:3130894

This article

384 W

Manufacturer's standards (no certificate)

32 (max.)

4 x

32 V (max.)

10 A (max.)

Rohde & Schwarz HMP2030 Bench PSU (adjustable voltage) 0 - 32 0 - 5 A 188 W Serial remote controlled, programmable No. of outputs 3 x

Item no:2112730

188 W

Manufacturer's standards (no certificate)

0 - 32

3 x

0 - 32 V

0 - 5 A

Rohde & Schwarz HMP4030 Bench PSU (adjustable voltage) 0 - 32 0 - 10 A 384 W remote controlled, programmable No. of outputs 3 x

Item no:2112731

384 W

Manufacturer's standards (no certificate)

0 - 32

3 x

0 - 32 V

0 - 10 A

Rohde & Schwarz HMP2020 Bench PSU (adjustable voltage) 0 - 32 0 - 10 A 188 W remote controlled, programmable No. of outputs 2 x

Item no:2112732

188 W

Manufacturer's standards (no certificate)

0 - 32

2 x

0 - 10 A

Rohde & Schwarz HMP4040 Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 384 W remote controlled, programmable No. of outputs 4 x

Item no:2112733

384 W

Manufacturer's standards (no certificate)

32 (max.)

4 x

10 A (max.)

Rohde & Schwarz HMP2020 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 0 - 10 A 188 W remote controlled, programmable No. of outputs 2 x

Item no:2181241

188 W

ISO standards

0 - 32

2 x

0 - 10 A

Rohde & Schwarz HMP2020 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 32 0 - 10 A 188 W remote controlled, programmable No. of outputs 2 x

Item no:2181242

188 W

DAkkS standards

0 - 32

2 x

0 - 10 A

Rohde & Schwarz HMP2030 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 0 - 5 A 188 W remote controlled, programmable No. of outputs 3 x

Item no:2181243

188 W

ISO standards

0 - 32

3 x

0 - 32 V

0 - 5 A

Rohde & Schwarz HMP2030 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 32 0 - 5 A 188 W remote controlled, programmable No. of outputs 3 x

Item no:2181271

188 W

DAkkS standards

0 - 32

3 x

0 - 32 V

0 - 5 A

Rohde & Schwarz HMP4030 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 0 - 10 A 384 W USB , LAN remote controlled, programmable No. of outputs 3 x

Item no:2181292

384 W

ISO standards

0 - 32

3 x

0 - 32 V

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3130894 Rohde & Schwarz R&S®HMP4040COM Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 384 W remote controlled, programmabl

User & Safety Instructions

User & Safety Instructions 3130894 Rohde & Schwarz R&S®HMP4040COM Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 384 W remote controlled, programmabl

Description

Programmable 4-channel power supply HMP4040 from Rohde & Schwarz with 32V/10A each. The HMP family of power supplies from the company Rohde & Schwarz is developed for professional use. The robust devices with Hohem efficiency possess a lot of functions and are best suitable for complex applications through programmable outputs.

This text is machine translated.

Features

Switch control technology with linear readjustment
Isolated, ungrounded outputs
All outputs are overload and short circuit proof
Parallel and serial operation
Constant voltage and constant current operation
Tracking and link functions
Protective functions for the device and measurement object
Modern device concept – small, compact and quiet

Scope of delivery

incl. super smash bros. Power cable
