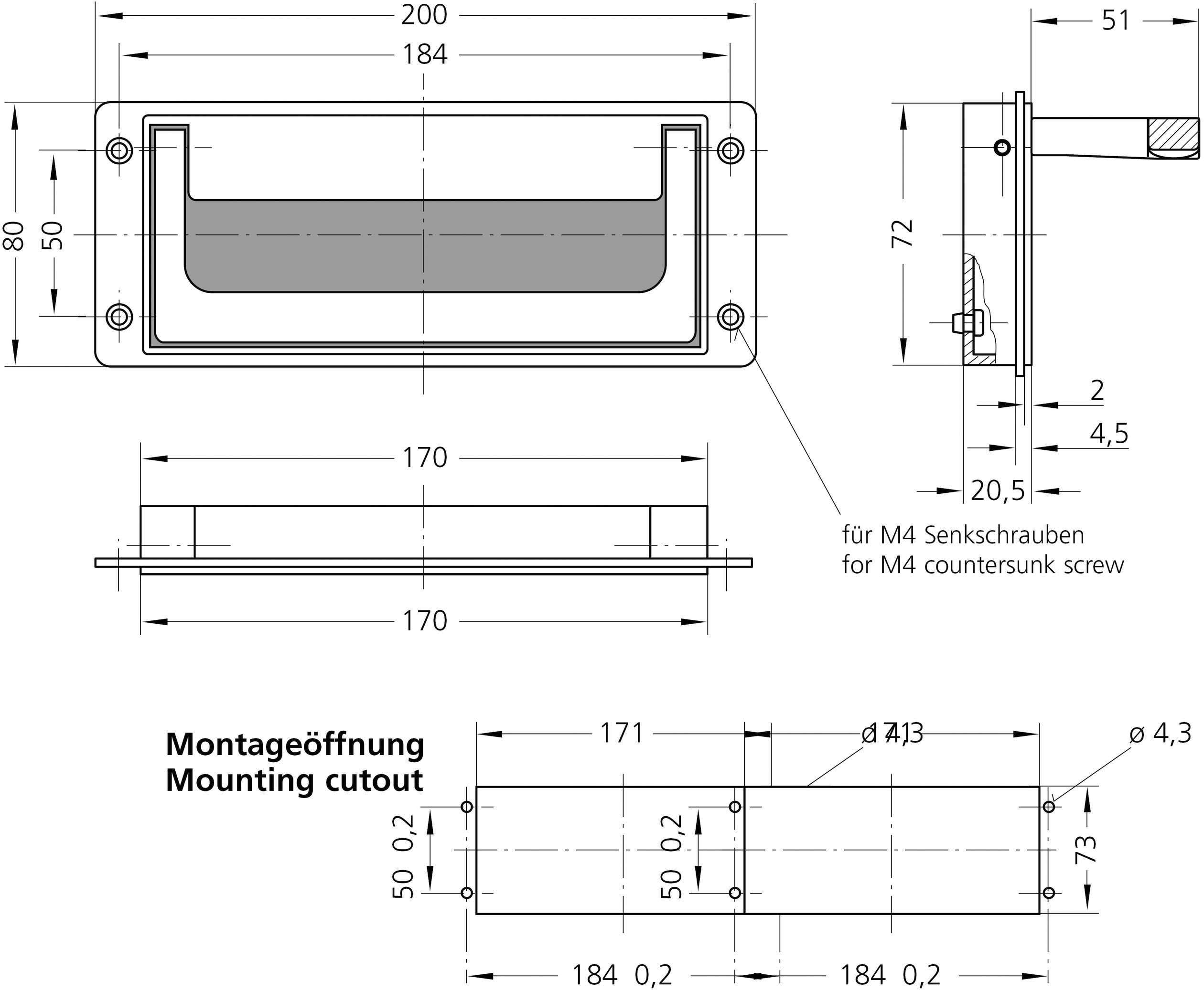

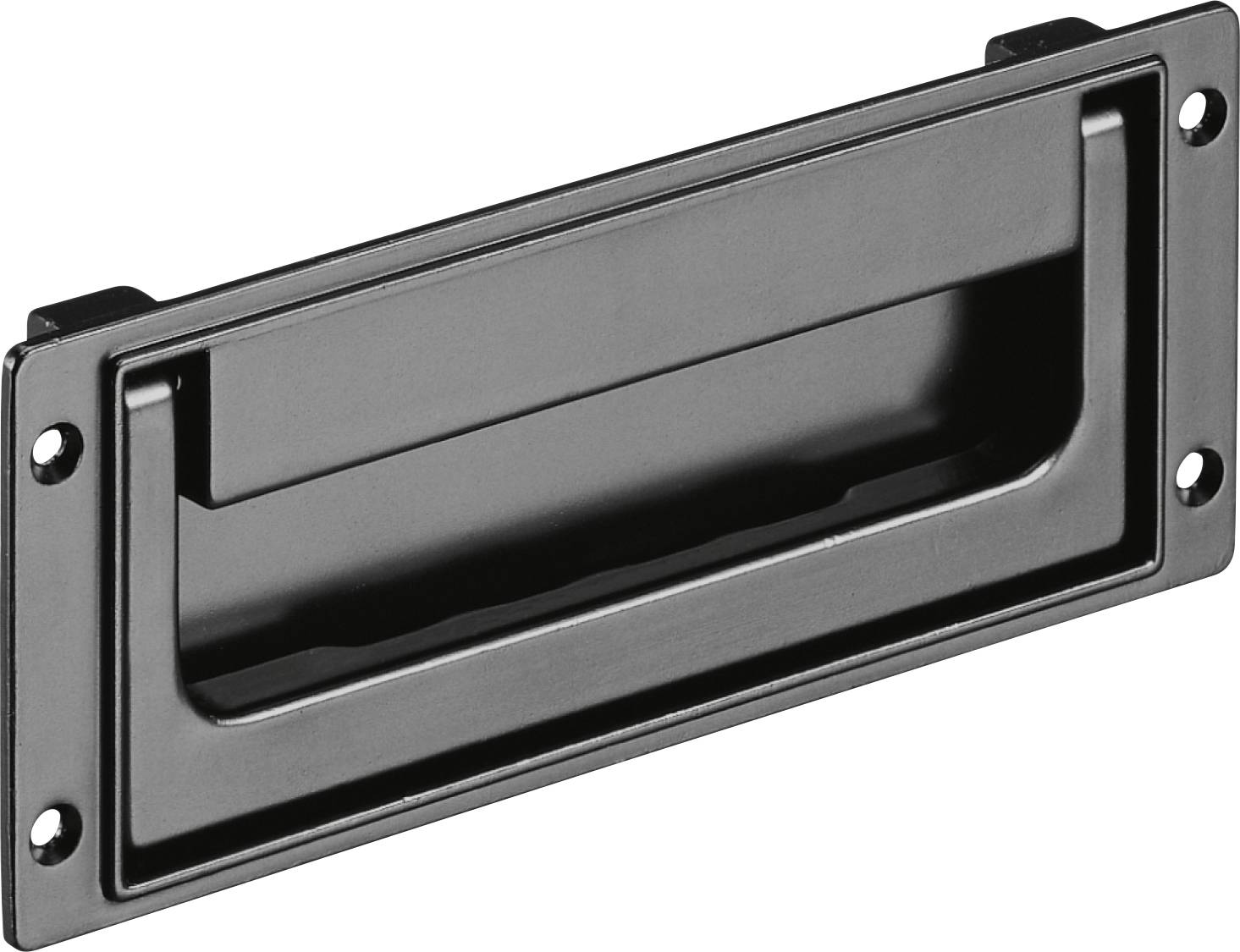

Rohde SK-50.S184.7035 Folding handle Light grey (L x W x H) 200 x 80 x 20.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Aluminium
Dim
(L x W x H) 200 x 80 x 20.5 mm
Width
80 mm
Height
20.5 mm
Datasheet (PDF)
Highlights & Details
Rohde tray-folding handle, made of aluminum, light gray powder coated
- Content: 1 pcs.
Technical specifications
- Surface treatment: Powder coated
- Material (material): GD-AlSi9Cu3
- Manufacturer color: Light gray
- Mounting method: c:Round bore
- Series name: SK-50
- Handle type (series): Folding handle SK
- Hole diameter: M4
- Dim
(L x W x H) 200 x 80 x 20.5 mm
- Product type
Folding handle
- Material
Aluminium
- Width
80 mm
- Height
20.5 mm
- Length
200 mm
- Hole spacing
184 mm
- Factory colour
Light grey
- Content
1 pc(s)
- Hole Ø
4 mm
- Max. load capacity
500 N
- Type
SK-50.S184.7035
Documents & Downloads
Datasheet
Datasheet 2344322 Rohde SK-50.S184.7035 Folding handle Light grey (L x W x H) 200 x 80 x 20.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344322 Rohde SK-50.S184.7035 Folding handle Light grey (L x W x H) 200 x 80 x 20.5 mm 1 pc(s)
Description
Shell handle SK
Are modern in design
designed and will be everywhere
Used where demands are
after more solid and more attractive
Execution exists.
Design features:
With the same housing cut
In front of and behind the housing wall
mountable. Natural finger profiling
On the back of the
Folding handle.
Also in folded state
For lifting a device
usable.
Type SK.50.S and SK-79.S
With ratcheting mechanism in peace and quiet
Working position.
Type SK.50.R and SK-79.R
With return spring from the
Operating position in rest position.
Material:
Diecast aluminium
GD-AISI 9 Cu 3.
Standard versions:
Bowl and handle
Black RAL 9005,
Light gray RAL 7035 or
Gray white RAL 9002 powder coated,
semi-matt.
This text is machine translated.
Are modern in design
designed and will be everywhere
Used where demands are
after more solid and more attractive
Execution exists.
Design features:
With the same housing cut
In front of and behind the housing wall
mountable. Natural finger profiling
On the back of the
Folding handle.
Also in folded state
For lifting a device
usable.
Type SK.50.S and SK-79.S
With ratcheting mechanism in peace and quiet
Working position.
Type SK.50.R and SK-79.R
With return spring from the
Operating position in rest position.
Material:
Diecast aluminium
GD-AISI 9 Cu 3.
Standard versions:
Bowl and handle
Black RAL 9005,
Light gray RAL 7035 or
Gray white RAL 9002 powder coated,
semi-matt.
This text is machine translated.
