Rohde SK-79.S118.9002 Folding handle Grey-white (L x W x H) 130 x 91 x 20.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Aluminium
Dim

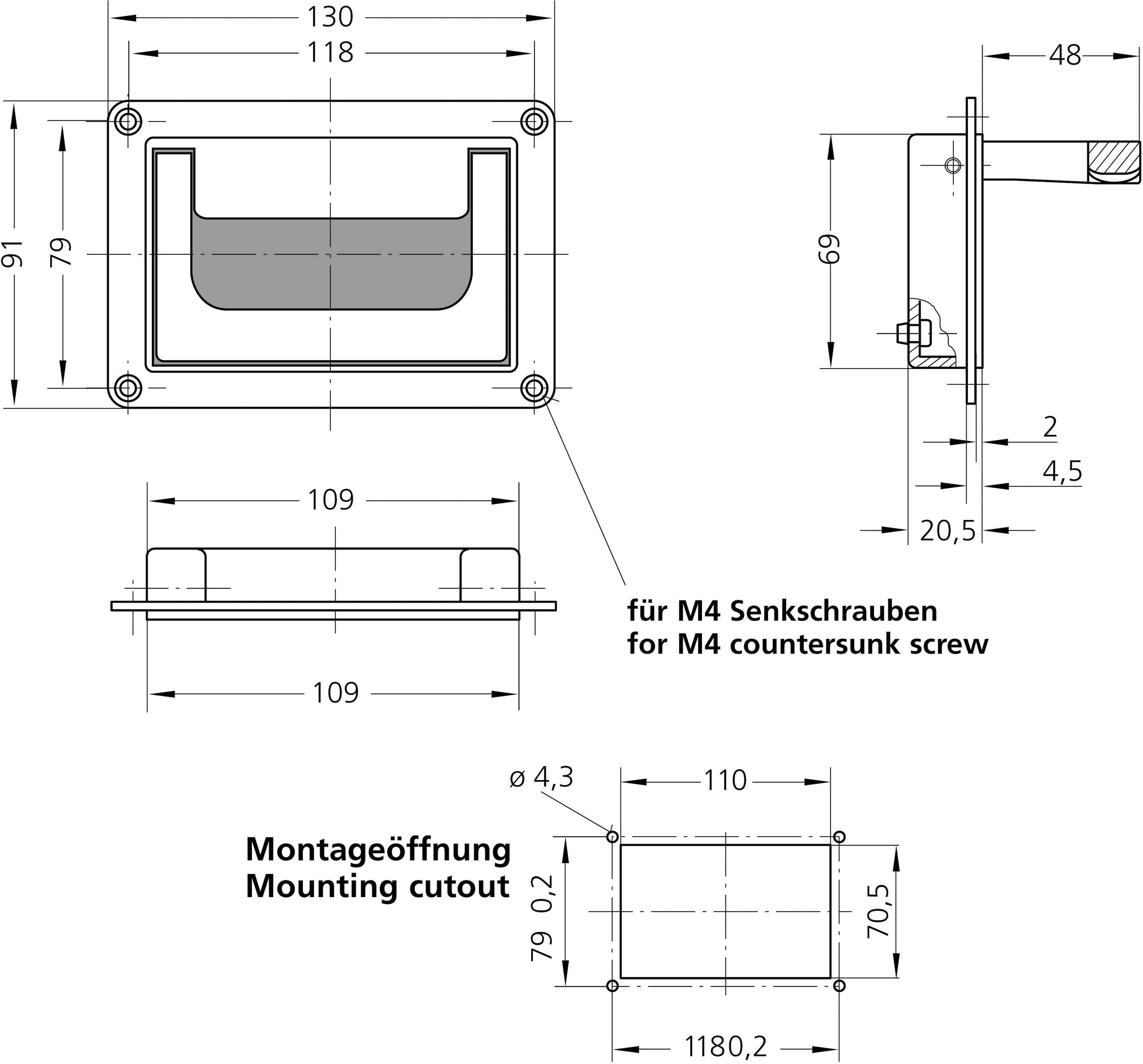

(L x W x H) 130 x 91 x 20.5 mm
Width
91 mm
Height
20.5 mm
Datasheet (PDF)
Highlights & Details
Rohde tray-folding handle made of aluminum min., gray-white powder coated, RAL 9002
- Content: 1 pcs.
Technical specifications
- Surface treatment: Powder coated
- Material (material): GD-AlSi9Cu3
- Manufacturer color: Gray-white
- Mounting method: c:Round bore
- Series name: SK-79
- Handle type (series): Folding handle SK
- Hole diameter: M4
- Dim
(L x W x H) 130 x 91 x 20.5 mm
- Product type
Folding handle
- Material
Aluminium
- Width
91 mm
- Height
20.5 mm
- Length
130 mm
- Hole spacing
118 mm
- Factory colour
Grey-white
- Content
1 pc(s)
- Hole Ø
4 mm
- Max. load capacity
500 N
- Type
SK-79.S118.9002
Documents & Downloads
Datasheet
Datasheet 2344329 Rohde SK-79.S118.9002 Folding handle Grey-white (L x W x H) 130 x 91 x 20.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344329 Rohde SK-79.S118.9002 Folding handle Grey-white (L x W x H) 130 x 91 x 20.5 mm 1 pc(s)
Description

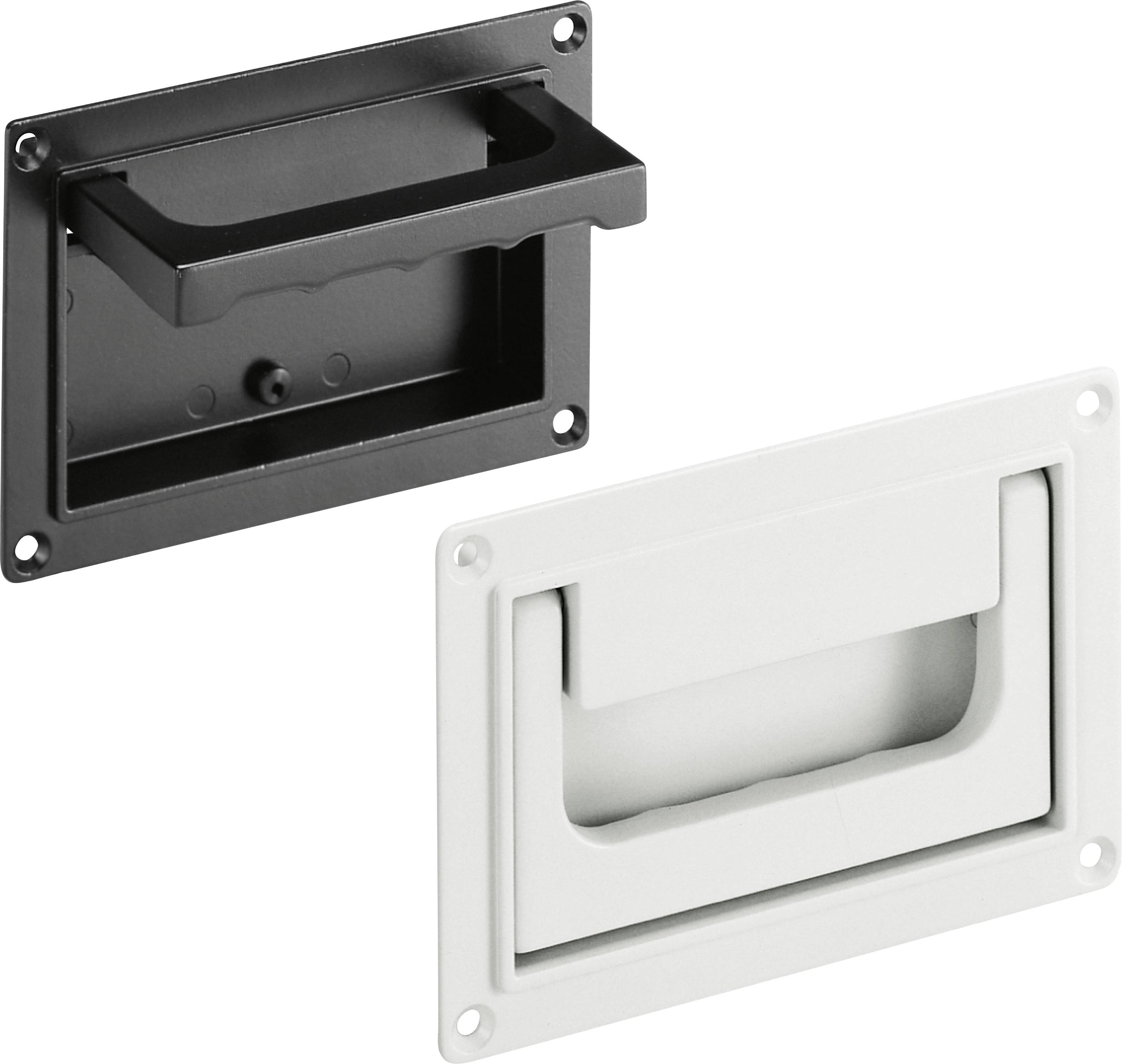

Rohde folding handles SK
are
designed according to modern design and
are used wherever demands
for a solid and attractive design exist.
Design features:
Can be mounted in front of and behind the housing wall with the same housing cut. Natural finger profiling
on the back of
the folding handle.
Can also
be used to lift a device when it is folded in.
Type SK.50.S and SK-79.S
with snap-on button in rest and
working position.
Type SK.50.R and SK-79.R
with return spring from
the working position to the rest position.
Material
: Die-cast aluminum
GD-AISI 9 Cu 3.
Standard versions:
Shell and handle
black RAL 9005
, light gray RAL 7035 or
gray white RAL 9002 powder coated
, semi-matt.
This text is machine translated.
