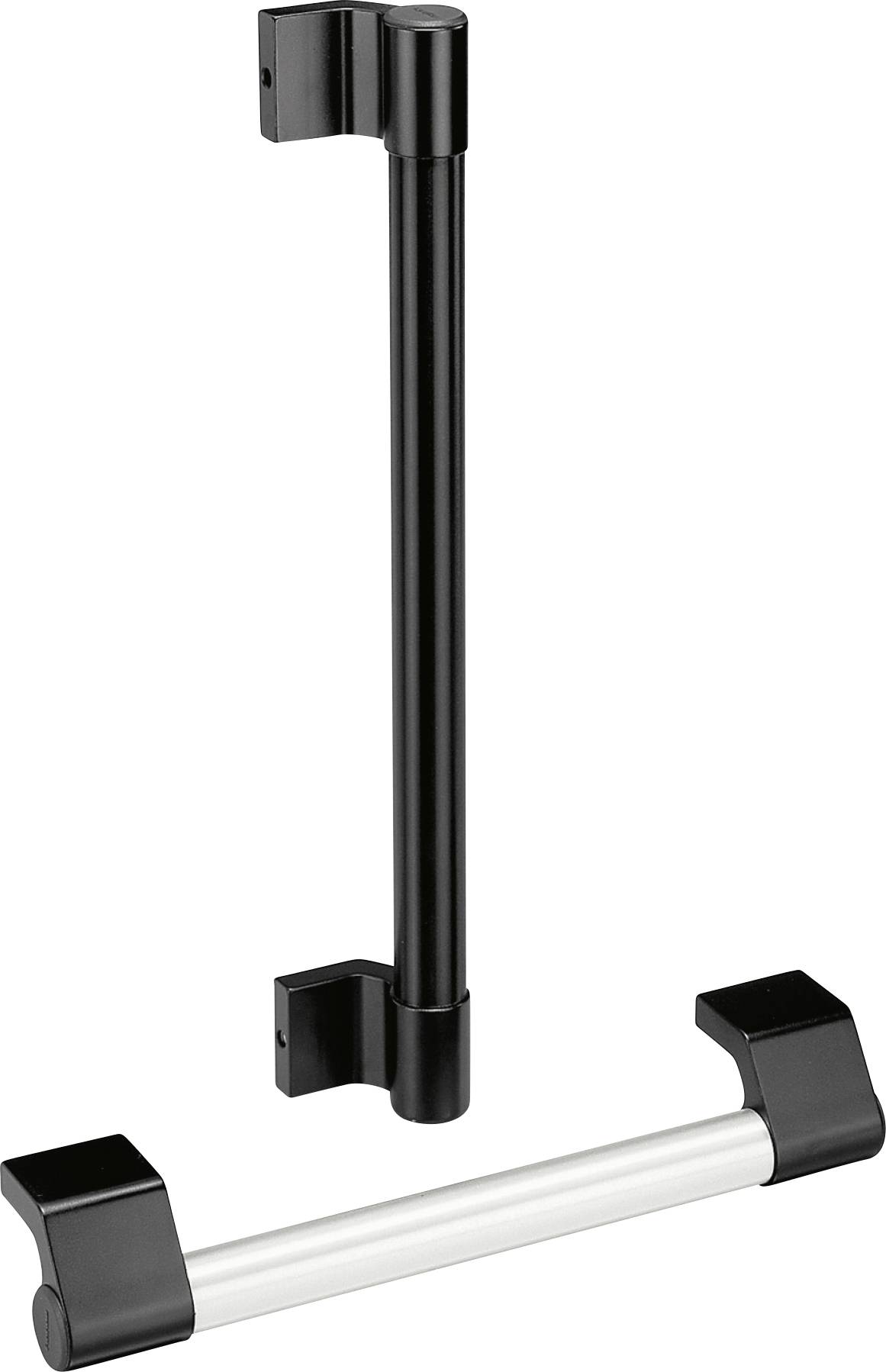

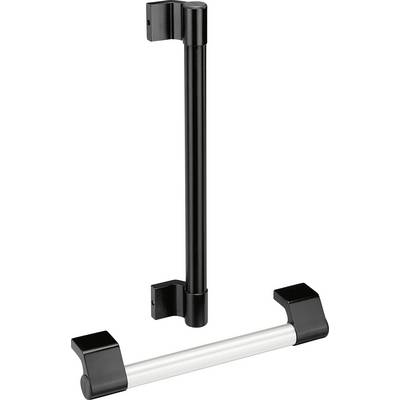

Rohde W5-30.R350.S01 Universal handle Black, Silver (L x W x H) 400 x 30 x 66.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 400 x 30 x 66.5 mm
Width
30 mm
Height
66.5 mm
Datasheet (PDF)
Highlights & Details
Rohde handle W5 with wide legs, and pipe 30 x 1.5 mm, arms black/pipe colorless
- Content: 1 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: W5-30
- Handle type (series): Grip system W5
- Hole diameter: M8
- Dim
(L x W x H) 400 x 30 x 66.5 mm
- Product type
Universal handle
- Material
Aluminium
- Width
30 mm
- Height
66.5 mm
- Length
400 mm
- Hole spacing
350 mm
- Factory colour
Black
Silver
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
W5-30.R350.S01
Documents & Downloads
Datasheet
Datasheet 2344596 Rohde W5-30.R350.S01 Universal handle Black, Silver (L x W x H) 400 x 30 x 66.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344596 Rohde W5-30.R350.S01 Universal handle Black, Silver (L x W x H) 400 x 30 x 66.5 mm 1 pc(s)
Description
Grip system W5
Like grip system W1, however
With wider legs.
This is also available
System completely pre-assembled
Handles or handle legs
Or pipes as individual parts.
Material and surface:
Handle legs made of extruded
Aluminum AlMgSi 0.5;
matt glossy black anodized.
Side insert made of polyamide
PA 6, glass-ball reinforced,
Black, viewing areas with
Fine structure.

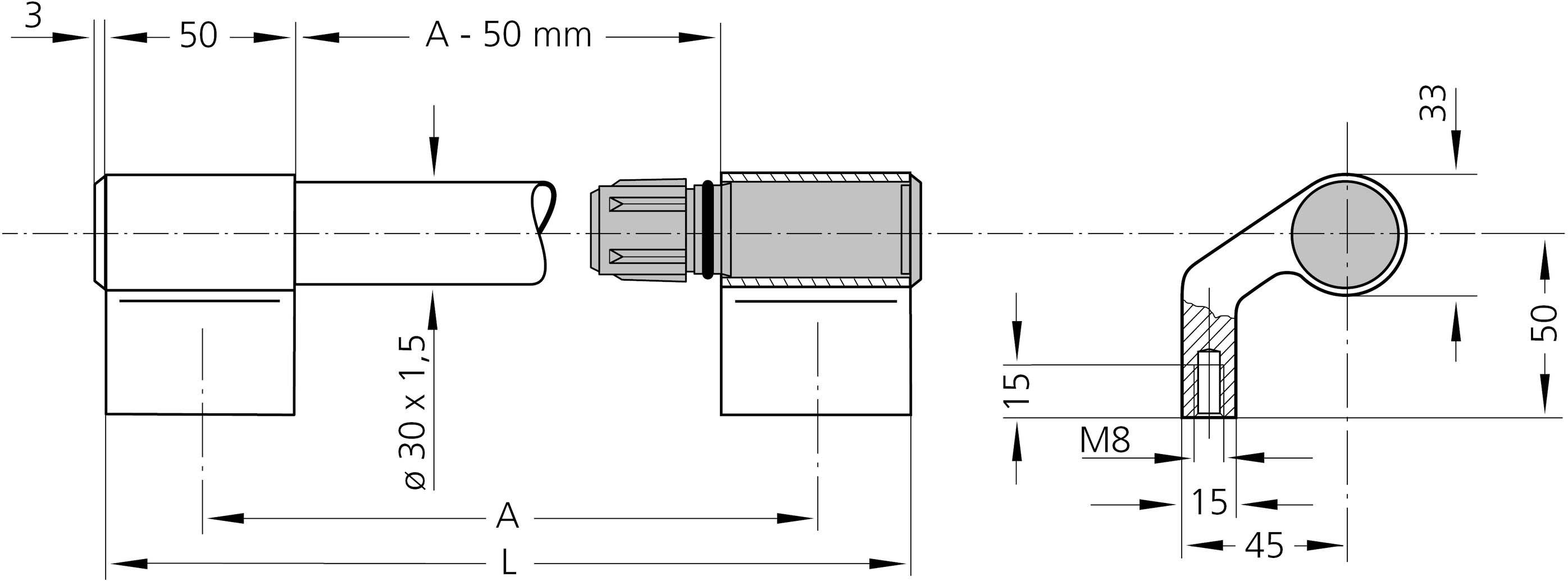

Connection pipes made of ø 30 x
1.5 mm aluminum AlMgSi 0.5;
fine-ground and anodized in
2 colors or with
Corrugated black plastic cover or black
Powder-coated, with fine structure.
Design features:
Suitable for any handle -
lengths when connecting arms are used.
Firmer and splash-proof
Pipe seat.
This text is machine translated.
Like grip system W1, however
With wider legs.
This is also available
System completely pre-assembled
Handles or handle legs
Or pipes as individual parts.
Material and surface:
Handle legs made of extruded
Aluminum AlMgSi 0.5;
matt glossy black anodized.
Side insert made of polyamide
PA 6, glass-ball reinforced,
Black, viewing areas with
Fine structure.
Connection pipes made of ø 30 x
1.5 mm aluminum AlMgSi 0.5;
fine-ground and anodized in
2 colors or with
Corrugated black plastic cover or black
Powder-coated, with fine structure.
Design features:
Suitable for any handle -
lengths when connecting arms are used.
Firmer and splash-proof
Pipe seat.
This text is machine translated.
