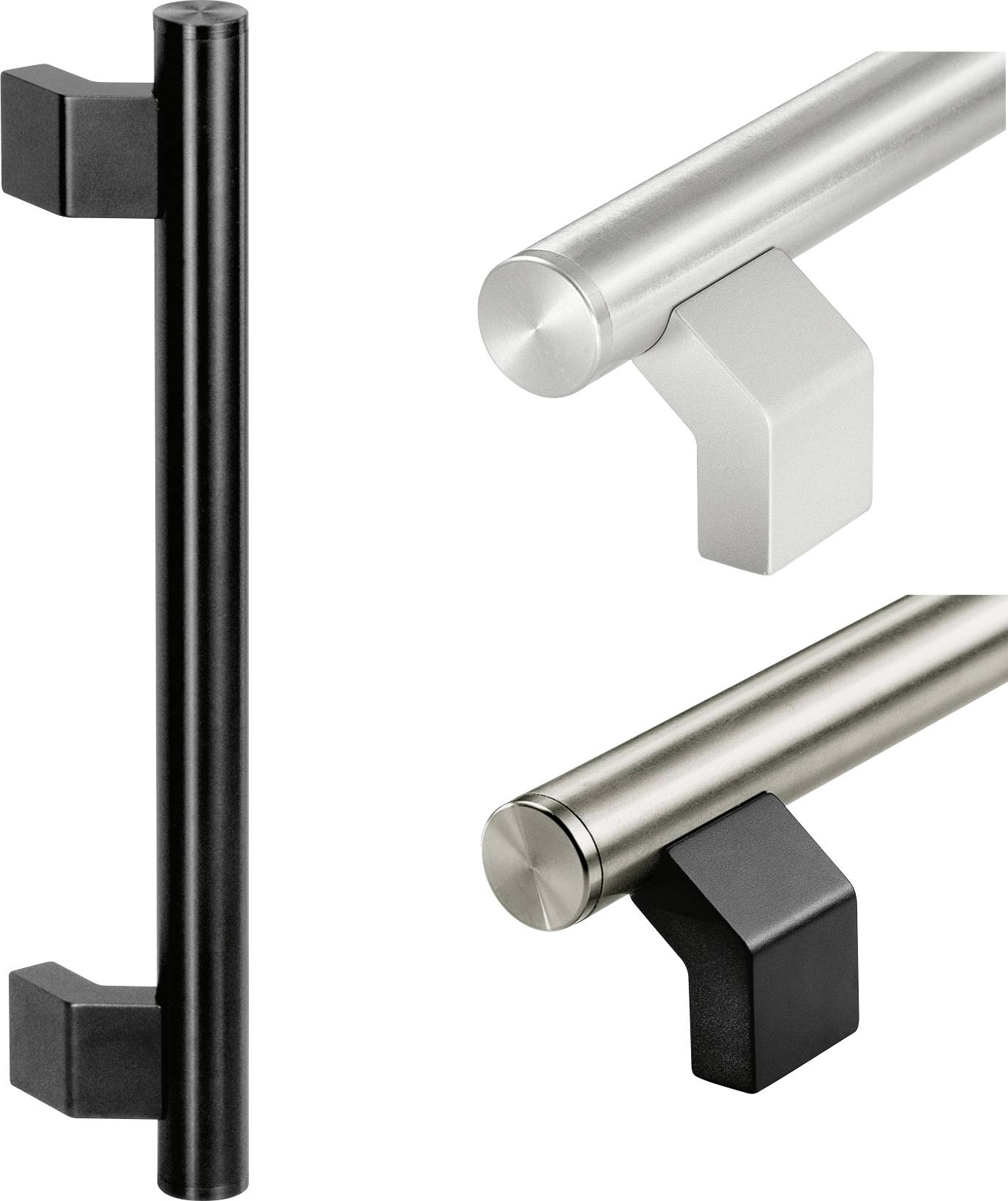

Rohde WR-30.500.37 Rod handle Black, Silver (L x W x H) 590 x 30 x 70 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rod handle
Material
Steel
Dim
(L x W x H) 590 x 30 x 70 mm
Width
30 mm
Height
70 mm
Datasheet (PDF)
Highlights & Details
Rohde angled pipe handle, pipe holder aluminum black elox./, pipe+end caps made of stainless steel
- Content: 1 pcs.
Technical specifications
- Execution variant: B
- Surface treatment: Brushed
- Material (material): AlMgSi 0.5, 1.4301 (304)
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: WR-30
- Grip type (series): WR grip series
- Hole diameter: M8
- Dim
(L x W x H) 590 x 30 x 70 mm
- Product type
Rod handle
- Material
Steel
- Width
30 mm
- Height
70 mm
- Length
590 mm
- Hole spacing
500 mm
- Factory colour
Black
Silver
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
WR-30.500.37
Documents & Downloads
Datasheet
Datasheet 2344640 Rohde WR-30.500.37 Rod handle Black, Silver (L x W x H) 590 x 30 x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344640 Rohde WR-30.500.37 Rod handle Black, Silver (L x W x H) 590 x 30 x 70 mm 1 pc(s)
Description
WR. Handle series
Angle pipe handles in different
Material combinations.
Material and surface:
Type A:
Pipe holder, connecting pipe and
Extruded End Caps -
Tem Aluminum AIMgSi 0.5.
Mounting sleeves made of anodized
Aluminum, clamping screws
And stainless steel peg.
Matt-gloss anodized tube holder,
Fine-ground connecting pipes
and anodized.
Handle design in natural colors
and black.
Type B:
Pipe holder made of extruded
Aluminum AlMgSi 0.5; matt glossy
black anodized.
Connection tube and end cap pen
Made of stainless steel, inner fixing
parts such as design A.
This text is machine translated.
Angle pipe handles in different
Material combinations.
Material and surface:
Type A:
Pipe holder, connecting pipe and
Extruded End Caps -
Tem Aluminum AIMgSi 0.5.
Mounting sleeves made of anodized
Aluminum, clamping screws
And stainless steel peg.
Matt-gloss anodized tube holder,
Fine-ground connecting pipes
and anodized.
Handle design in natural colors
and black.
Type B:
Pipe holder made of extruded
Aluminum AlMgSi 0.5; matt glossy
black anodized.
Connection tube and end cap pen
Made of stainless steel, inner fixing
parts such as design A.
This text is machine translated.
