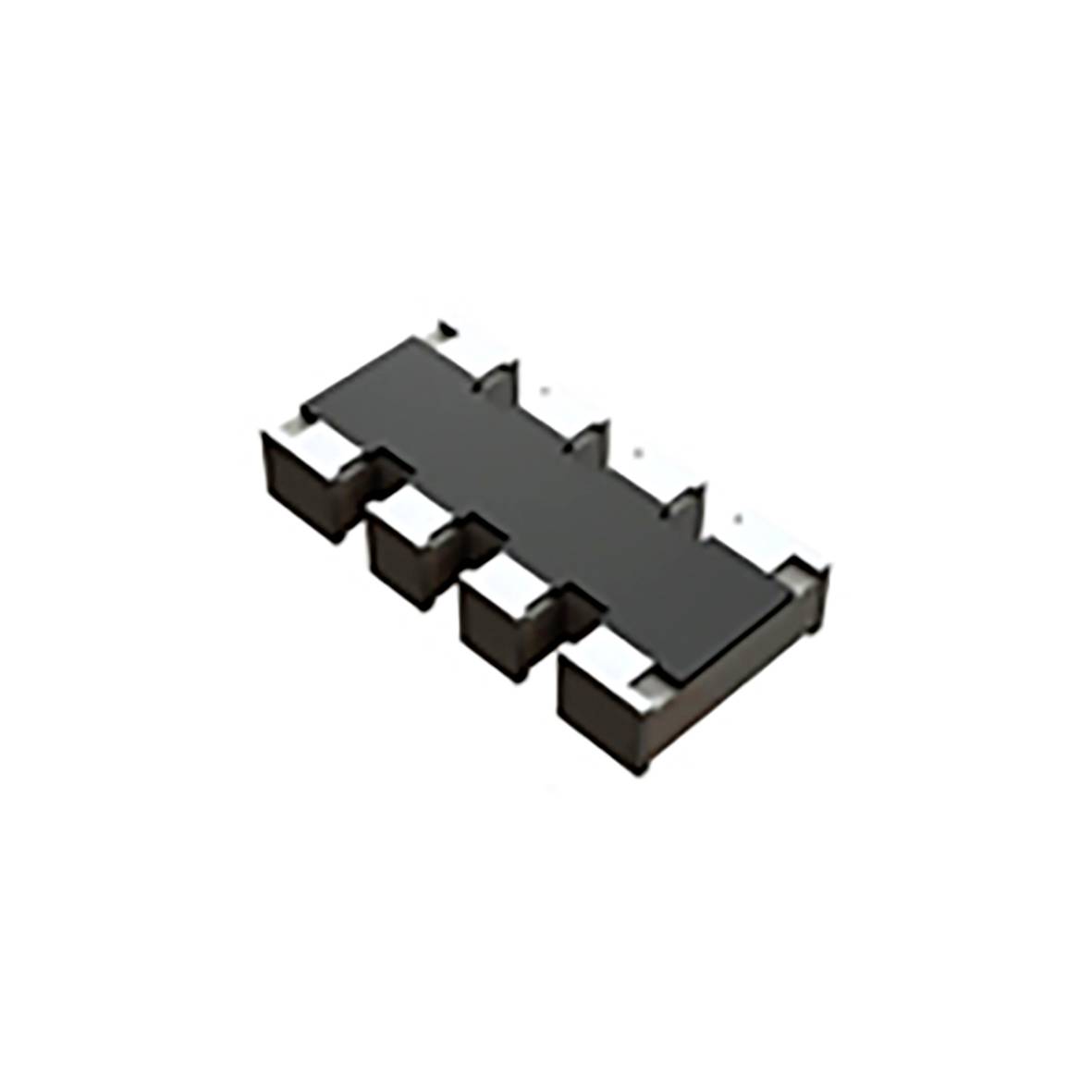

ROHM Semiconductor MNR04M0APJ472 Resistor ladder 4.7 kΩ SMD 0402 0.063 W 1 pc(s)
Part number:
Item no:
Product type
Resistor ladder
Type
SMD
Resistance
4.7 kΩ
Power rating
0.063 W
Tolerance ±
5 %
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series: MNR04
- Design 0402
- Delivery type: Belt
- Solder-able 260 ° / 10s
- Resistance tolerance: ±5 %
- Connections 4
- Rated power: 0.063 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 50 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- Insulation voltage 100 V
- Number of resistors: 4
- Qualification: AEC-Q200
- Product type
Resistor ladder
- Type
SMD
- Type
0402
- Resistance
4.7 kΩ
- Power rating
0.063 W
- Tolerance ±
5 %
- Temperature coefficient
200 ppm/°C
- CS
2 mm
- Length
2 mm
- Width
0.2 mm
- Height
0.45 mm
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 0.2 x 0.45 mm
- Type
MNR04M0APJ472
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- Insulation resistance
10 MΩ
- Certification marks
ISO9001, IATF16949
Documents & Downloads
Datasheet
Datasheet 3464962 ROHM Semiconductor MNR04M0APJ472 Resistor ladder 4.7 kΩ SMD 0402 0.063 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464962 ROHM Semiconductor MNR04M0APJ472 Resistor ladder 4.7 kΩ SMD 0402 0.063 W 1 pc(s)
Description
SMD thick film resistor networks 4x0
This text is machine translated.
This text is machine translated.
Features
- • SMD resistor networks
- • For high mounting density
- • Convex connections
- • Housing with 8 connections with 4 insulated resistors
- • ISO9001 / IATF16949 certified
- • Equal AEC-Q200
- • Original packaging: 10,000 pieces on belt with 2 mm pitch (coil Ø 180 mm, 7-inch)
