Roline 1 port KVM extender HDMI Keyboard 4096 x 2160 Pixel
EAN:
Part number:
Item no:
Highlights & Details

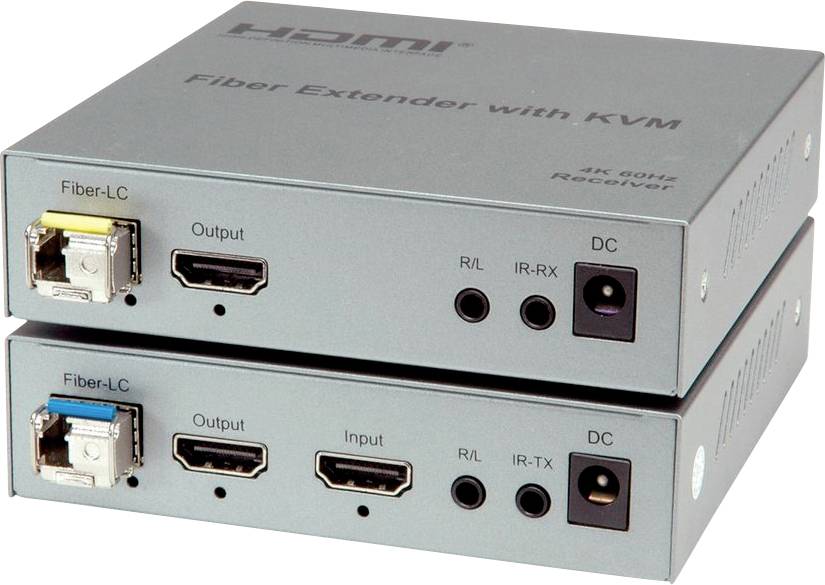

Roline KVM extender
- Transmitter and Receiver
- Wired Maximum possible transmission distance: 20000 m.
- Resolution (maximum, digital) 3840 x 2160 pixels
- Material: Metallic
- Transmitter video connection type HDMI
- Receiver local video connection type: HDMI
Technical specifications
- Product type
KVM extender
- No. of switchable PCs
1 pc(s)
- Video via
HDMI
- Video resolution
4096 x 2160 Pixel
- Controller
Keyboard
- No. of USB 2.0 ports
2 x
- Distributor/switch features
Ultra HD compatibility
- Power supply (LOV)
mains-powered
- Weight
1256 g
- Length
106 mm
- Width
106 mm
- Height
17 mm
- Port
1 port
- Dim
(L x W x H) 106 x 106 x 17 mm
- Cable design
Round
- Version
Cable
- Frame rate
60 Hz
- Cable use
C13/C14 appliances
- Material
Metal
- Type
Transmitter and Receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Receiver depth
10.6 cm
- Receiver height
1.7 cm
- Receiver width
10.6 cm
- Transmitter depth
10.6 cm
- Transmitter height
1.7 cm
- Transmitter width
10.6 cm
- Receiver weight
273 g
- Maximum digital resolution
3840 x 2160 p
- Package weight
1 kg
- Transmitter weight
273 g
- Maximum transfer distance
20000 m
- AC adapter output current
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629148 Roline 1 port KVM extender HDMI Keyboard 4096 x 2160 Pixel
Description
Unlimited control over extreme distances: The Roline KVM extension over fiber optic cable.
Do not make any compromises in the range and picture quality! With the ROLINE KVM extension you can control your computer system from a distance of up to 20 kilometers comfortably from a remote console.
This powerful system seamlessly transmits high-resolution HDMI 4K video signals (3840x2160 @60Hz), USB signals for mouse and keyboard, and HD audio through a bi-directional single fiber optic cable (fiber optic). This provides not only for an extremely stable signal transmission, but also keeps the costs low.
This text is machine translated.
Do not make any compromises in the range and picture quality! With the ROLINE KVM extension you can control your computer system from a distance of up to 20 kilometers comfortably from a remote console.
This powerful system seamlessly transmits high-resolution HDMI 4K video signals (3840x2160 @60Hz), USB signals for mouse and keyboard, and HD audio through a bi-directional single fiber optic cable (fiber optic). This provides not only for an extremely stable signal transmission, but also keeps the costs low.
