Roline 14.01.3641 HDMI™, RJ45, Infrared HDMI over IP Extender via local IP network 120 m
EAN:
Part number:
Item no:
ROLINE 14.01.3641 audio/video power amplifier AV transmitter & receiver
Highlights & Details
- AV-transmitter & receiver 1920 x 1080 pixels
- Maximum possible transmission range: 120 m.
- 60 Hz
- Cable connected
- Power source: Direct current
Technical specifications
- Product type
HDMI over IP Extender
- Transfer type
via local IP network
- Interfaces (input)
HDMI™
RJ45
Infrared
- Interfaces (output)
HDMI™
RJ45
Infrared
- Resolution (max.)
1920 x 1080 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
0.75
- No. of outputs
1 x
- No. of inputs
1 x
- Power supply (LOV)
via PSU
- Cable design
Round
- Version
Cable
- Display resolution
1920 x 1080 Pixel
- Frame rate
60 Hz
- Cable use
C13/C14 appliances
- Material
Metal
- Type
AV-transmitter & -receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- AC adapter included
yes
- Quantity per pack
1 Stück(e)
- Bandwidth
4.95 Gbit/s
- Manual
yes
- Operating voltage
5 V
- Receiver dimensions (WxDxH)
58 x 99 x 25 mm
- Receiver weight
143 g
- Storage temperature (T-T)
-10 - 80 °C
- Package weight
750 g
- HDMI in
1
- Number of HDMI outputs
1
- Transmitter dimensions (WxDxH)
58 x 99 x 25 mm
- Transmitter weight
148 g
- Maximum transfer distance
120 m
- Mounting brackets included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629168 Roline 14.01.3641 HDMI™, RJ45, Infrared HDMI over IP Extender via local IP network 120 m
Description

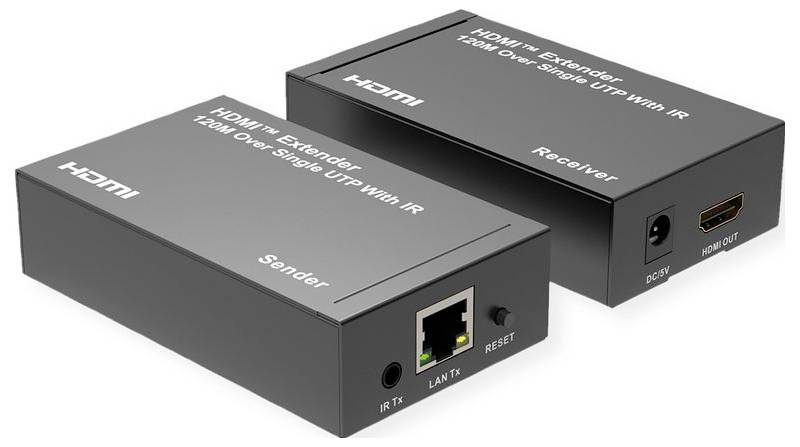

This HDMI extension - consisting of transmitter and receiver - uses TCP/IP for the transmission of HDMI signals via an existing network. Thereby, the full HD-HDMI-signal can be extended up to 120 m via a network cable.
