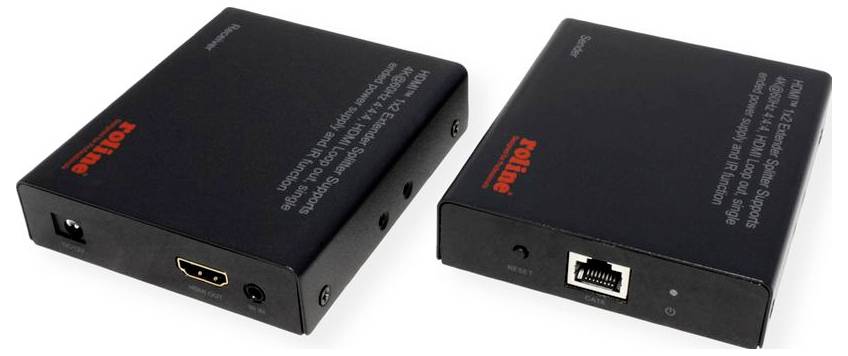

Roline 14.01.3643 1-to-2 HDMI extender set 3840 x 2160 p Black
EAN:
Part number:
Item no:
Highlights & Details
ROLINE 14.01.3643 audio/video power amplifier AV transmitter & receiver
- AV-transmitter & receiver 3840 x 2160 pixels
- Maximum possible transmission range: 70 m.
- 60 Hz
- HDCP
- Cable connected
- Power source: Direct current
Technical specifications
- Product type
HDMI extender set
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
HDMI™
Infrared
- No. of outputs
2 x
- Interfaces (output)
HDMI™
RJ45
Infrared
- Resolution (max.)
3840 x 2160 p
- Power supply (LOV)
via PSU
- Factory colour
Black
- Port
1-to-2
- Display resolution
3840 x 2160 Pixel
- Playback of
DTS
LPCM
- Frame rate
60 Hz
- HDCP
Yes
- HDR support
Yes
- Material
Metal
- Type
AV-transmitter & -receiver
- Transfer type
Corded
- Operating temperature (T-T)
0 - 50 °C
- AC adapter included
yes
- Colour depth
12 Bit
- Quantity per pack
1 Stück(e)
- Bandwidth
6 Gbit/s
- Manual
yes
- Operating voltage
12 V
- Receiver dimensions (WxDxH)
88 x 100 x 23 mm
- Receiver weight
199 g
- Package weight
500 g
- HDMI in
1
- Number of HDMI outputs
2
- Transmitter dimensions (WxDxH)
88 x 100 x 23 mm
- Transmitter weight
201 g
- Maximum transfer distance
70 m
- Mounting brackets included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629170 Roline 14.01.3643 1-to-2 HDMI extender set 3840 x 2160 p Black
Description
This ROLINE HDMI extender and splitter combines the extension and splitter functions, as it simultaneously distributes the input of the HDMI signal to the local and the output up to 70 m away - perfect for digital signage applications, which need HDMI video in high quality up to 4K@60Hz 4:4:4. It can also transmit infrared signals from remote controls - Ideal to control your video source from your video destination. It has a single power supply, so that both the transmitter and the receiver can be operated via a single 12-V power supply.
