Roline 19.08.0015 eMobility charging cable 5.00 m Flame-retardant
EAN:
Part number:
Item no:
ROLINE E-Auto charging cable type 2, 3-phase, 480VAC (3P+N+E), 16 A, 11 kW,5.00 m
Highlights & Details
- Enables easy/fast charging at public charging stations and private wall-mounted boxes (Wallbox)
- Suitable for charging electric and hybrid vehicles
- Mode 3 / Type 2 car charging cable
- Connections: Type 2 on both sides
- For all electric cars with type 2 connection
- Ergonomic plug and coupling
- Humidity protection (IP65 - when connected, IP54 - unconnected cable with attached protective caps)
- 16 A / 3-PHASE (480 V AC)
- Maximum charging power 11 kW
Technical specifications
- Product type
eMobility charging cable
- Type A
Type 2
- Type B
Type 2
- No. of phases
3-phase
- Charging mode
Mode 3
- Cable length
5.00 m
- Cable features
Flame-retardant
- Nominal voltage
480 V
IP65
IP54
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
11 kW
- Charging current
16 A
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017742 Roline 19.08.0015 eMobility charging cable 5.00 m Flame-retardant
Description
Type 2 charging cable for electric and hybrid cars with 11 kW, 3-phase, 480 V AC
This text is machine translated.
This text is machine translated.
Features
- Manufacturer: ROLINE
- Product group: Power cord
- Product type: Electric car charging cable
- Colour, black
- Length: 5.00 m
- Delivery: E-car charging cable, carrying bag
- Charge output: 11 kW
- Input voltage 480 V, 50 Hz
- Current 16 A
- Number of phases: 3-phase
- Supported charging technology: Mode-3
- Page 1 Type of connector: Type 2
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: Type 2
- Page 2 Type of connection: Female (female)
- Cable LSOH: Flame-retardant
- Protection type (IP code) IP65, IP54
- Mains connection IEC 62196-2 type 2, plug 3Ph.
- Min. Operating temperature -30 °C
- Max. operating temperature: 50 °C
- Height: 40 mm
- Width 390 mm
- Depth: 390 mm
- Weight: 2.1 kg.
- Packaging height 40 mm
- Package width 390 mm
- Packaging depth 390 mm
- Package weight: 2.15 kg
Scope of delivery

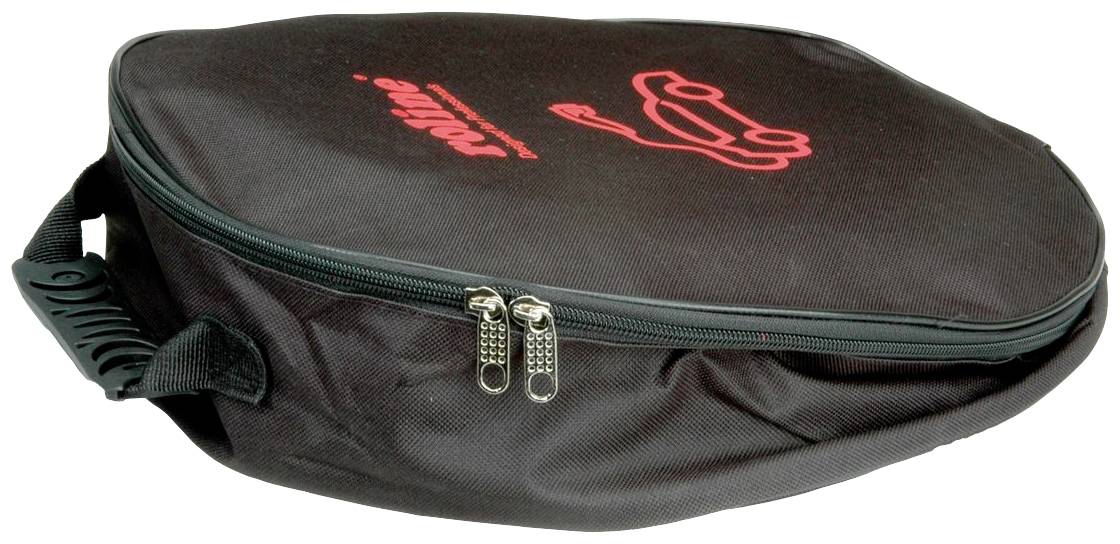

- E-car charger cable, carry bag
