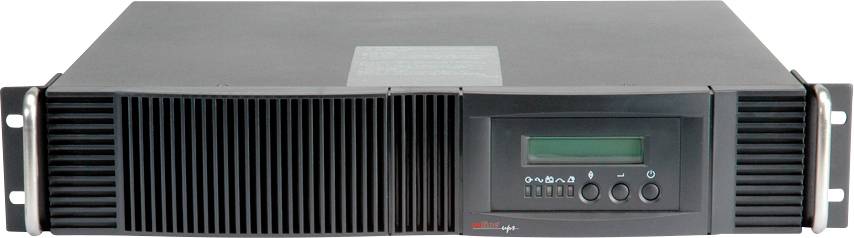

Roline 19" UPS 1000 VA
EAN:
Part number:
Item no:
ROLINE ProSecure III 1000 RM2HE - online UPS, 19" rack version, black
Technical specifications
- Voltage range 160 - 230 V
- Rack mounting
- Product type
19" UPS
- Nominal power
1000 VA
- Bridging time normal load
9 min
- Bridging time, max load
3 min
- No. of outputs
4 x
- Output
IEC C13 socket
- Features
USB port
Serial port
2U
- Dim
(W x H x D) 428 x 88 x 425 mm
- Weight
18.3
- Width
428 mm
- Height
88 mm
- Depth
425 mm
- Type
19.40.1069
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342490 Roline 19" UPS 1000 VA
Description
The microprocessor-controlled PROSECURE III in real ONLINE technology (double converter) for all voltage protection types
This text is machine translated.
This text is machine translated.
Features
- IEC 6240-3 CLASS 1 (VFI-SS-111)
- Use cases: Data centers, highly available database servers, or environments with major voltage problems
- Multilingual LCD front display
- RS232 port with monitoring software
- USB port
- Advanced battery management (ABM)
- Shutdown and reboot scheduling
- Controllable load segments
- LAN/Fax/Modem protection
- HOT SWAP batteries
- Card slot for SNMP or relay card
- Automatic diagnosis and battery check
- Manual bypass, adjustable
- Online output voltage can be set
- power factor correction
- EMI/RFI noise filter
- Real sine output with < 3% THD
- Short circuit and overload protection
