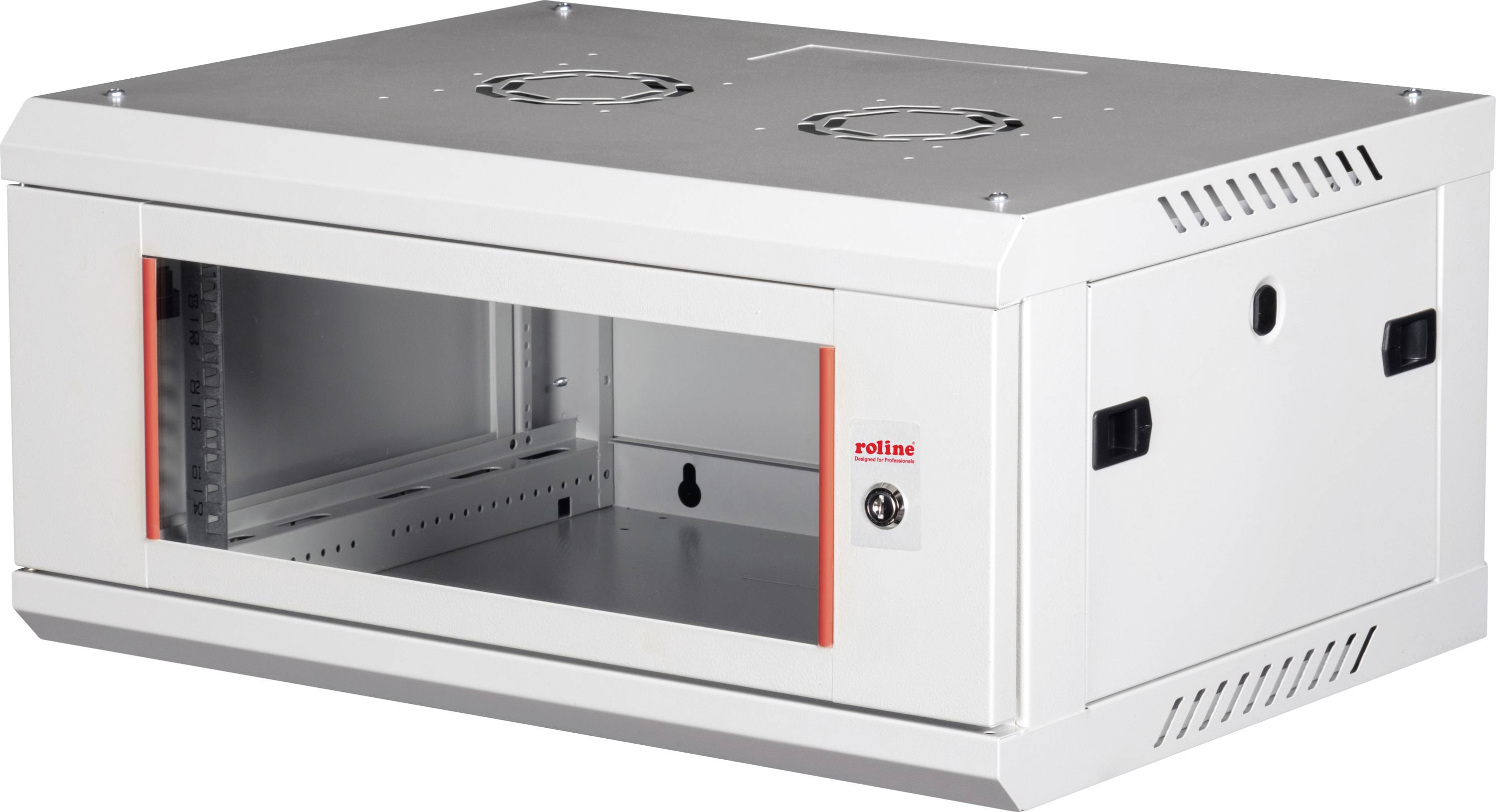

A metal server rack with a transparent front panel, locks on the side, and ventilation fans on top.

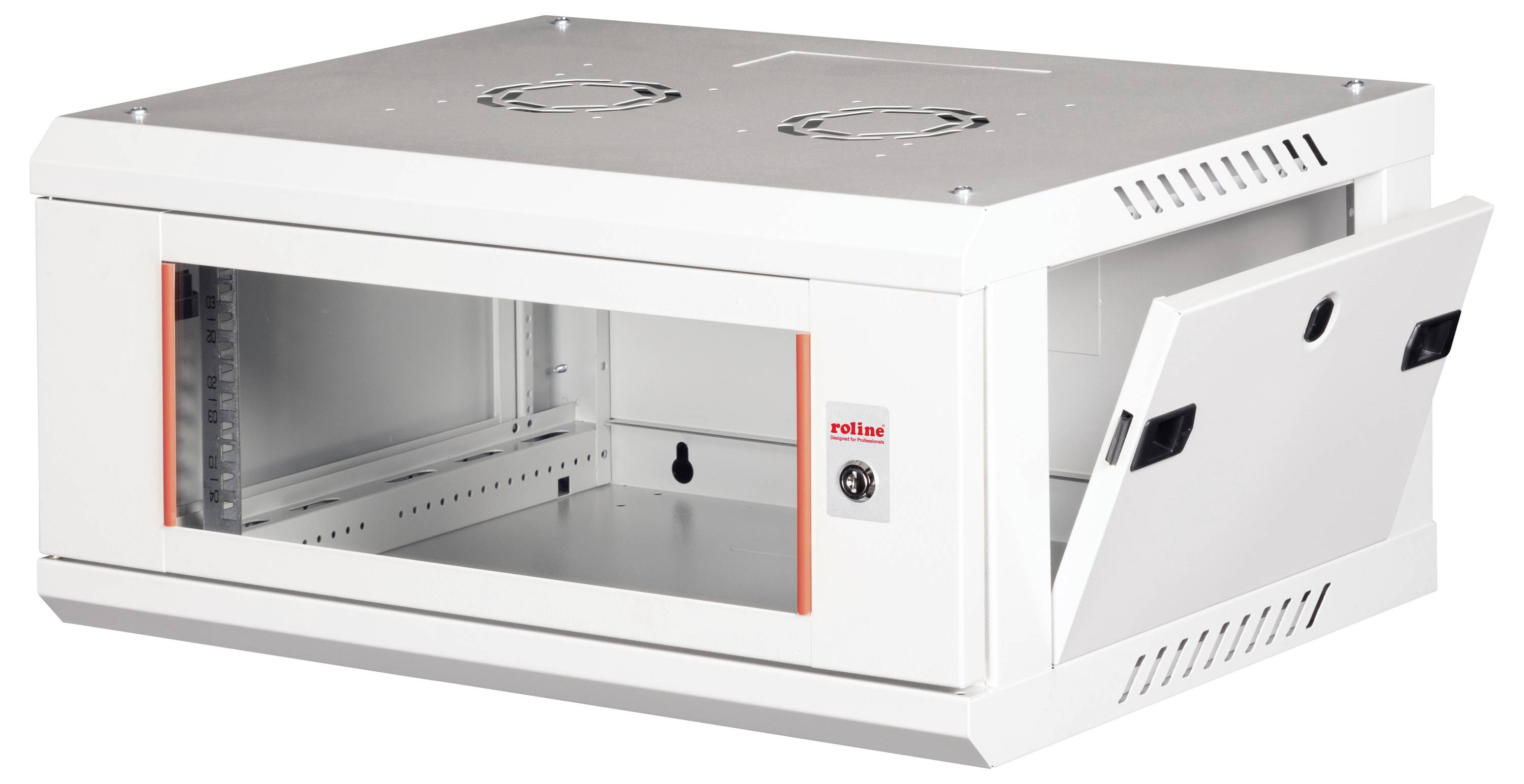

A medium-sized white metal cabinet with a transparent front door, ventilation fans on top, and an open side panel, used for storing electronics.

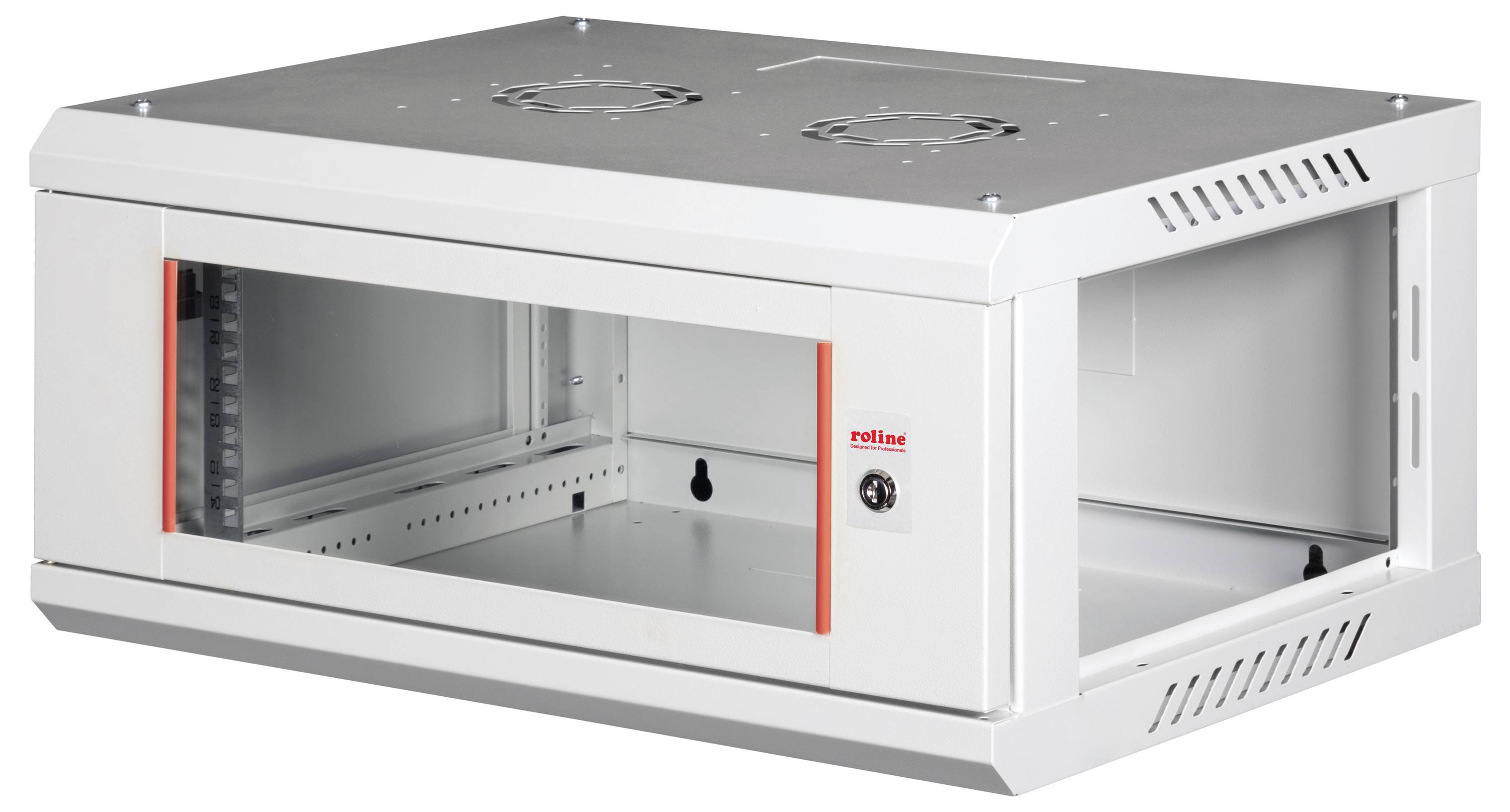

A metal server cabinet with transparent front, ventilation holes on top, and side access panels, designed for housing electronic equipment.

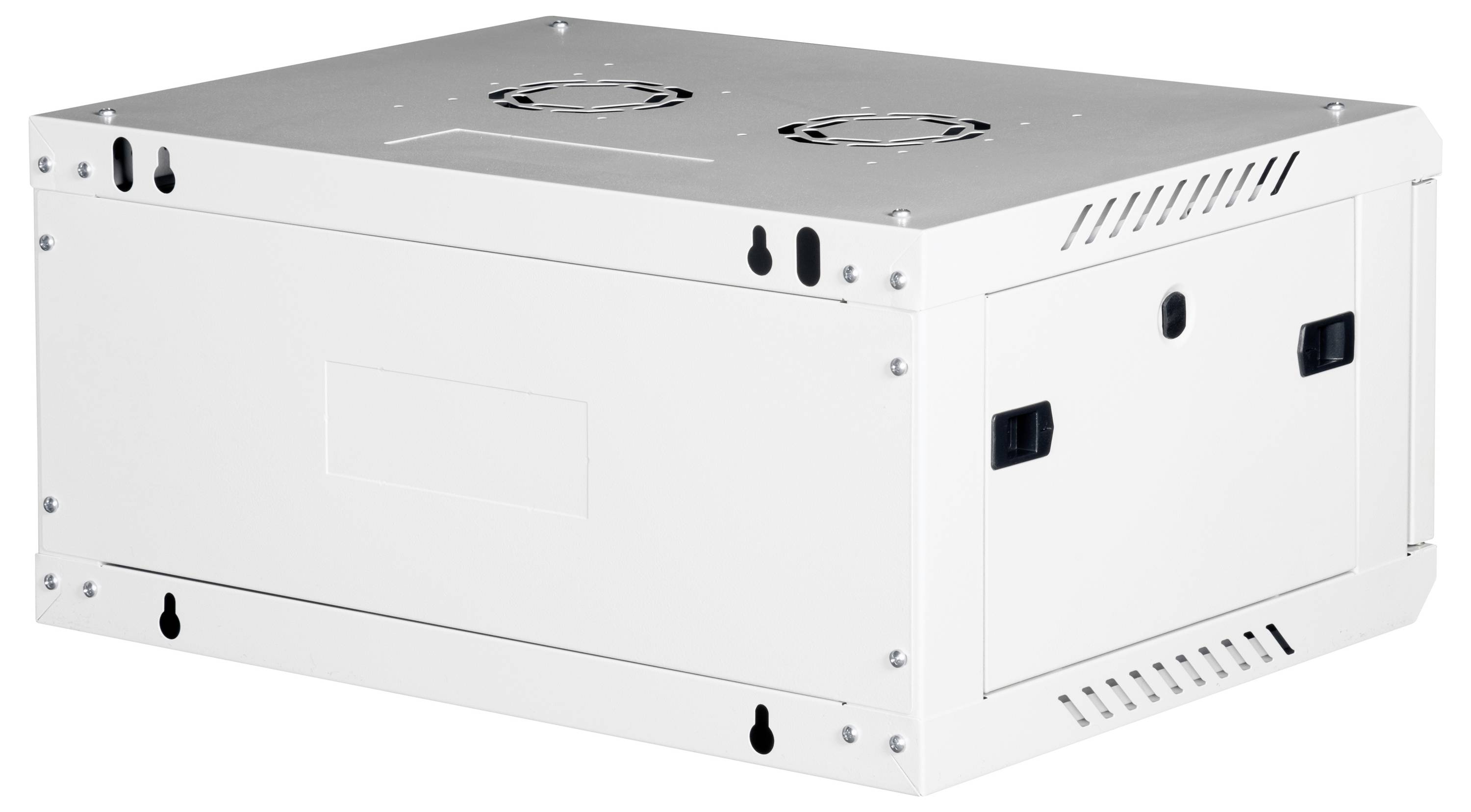

A white metal server rack box with ventilation slots and handles on the sides.

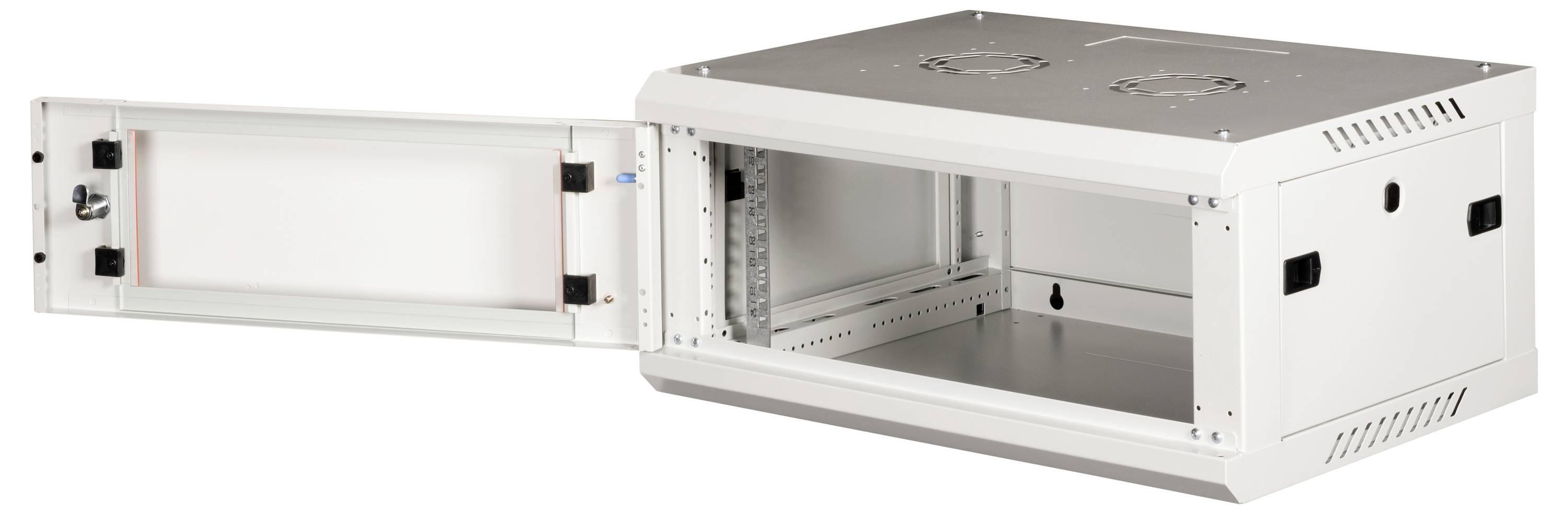

'A white metal server rack with an open side panel, showing interior mounting brackets and ventilation slots. It's designed for network equipment.'

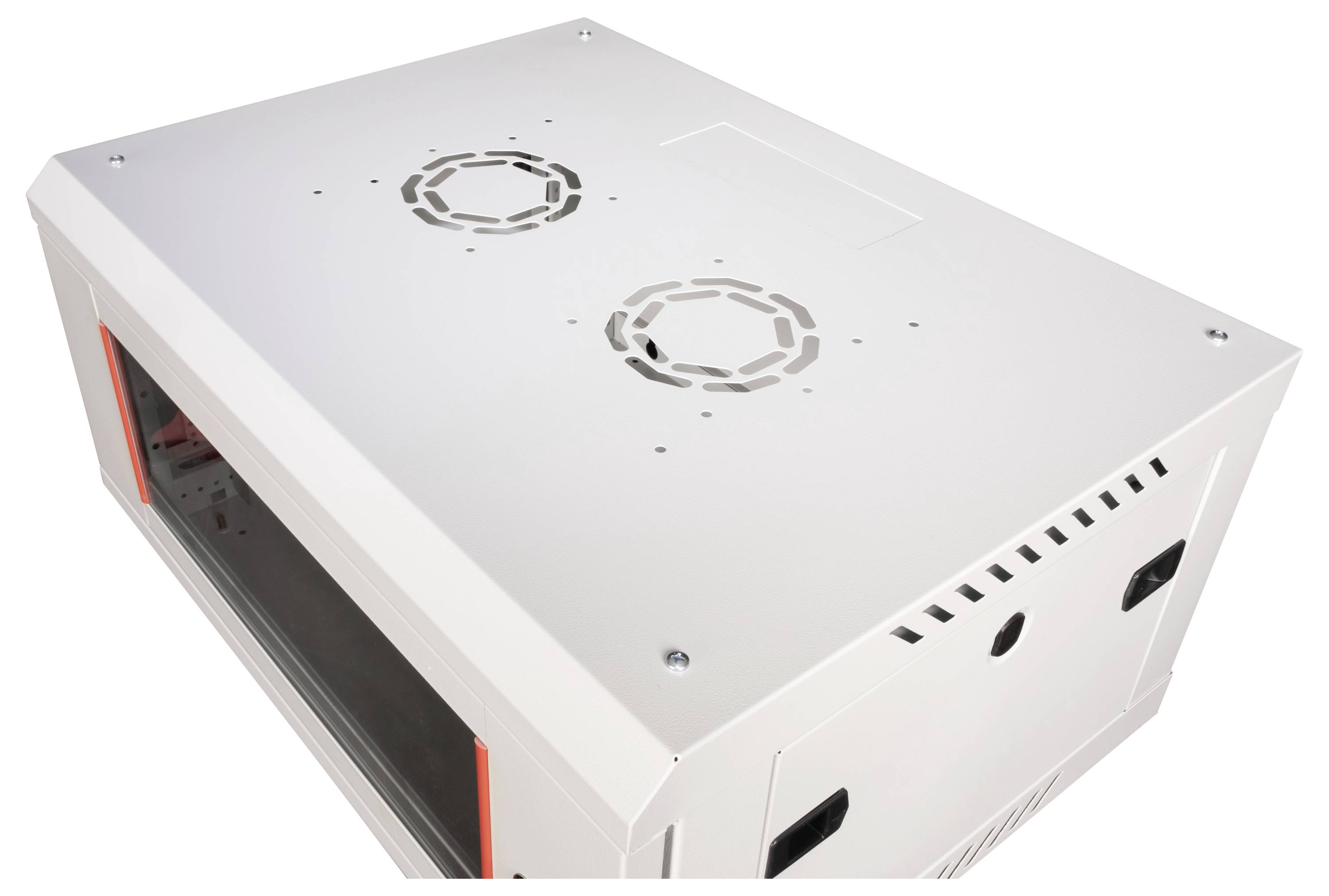

A white rectangular metal enclosure with ventilation holes on top and visible red trim on the side, likely for housing electronic components.

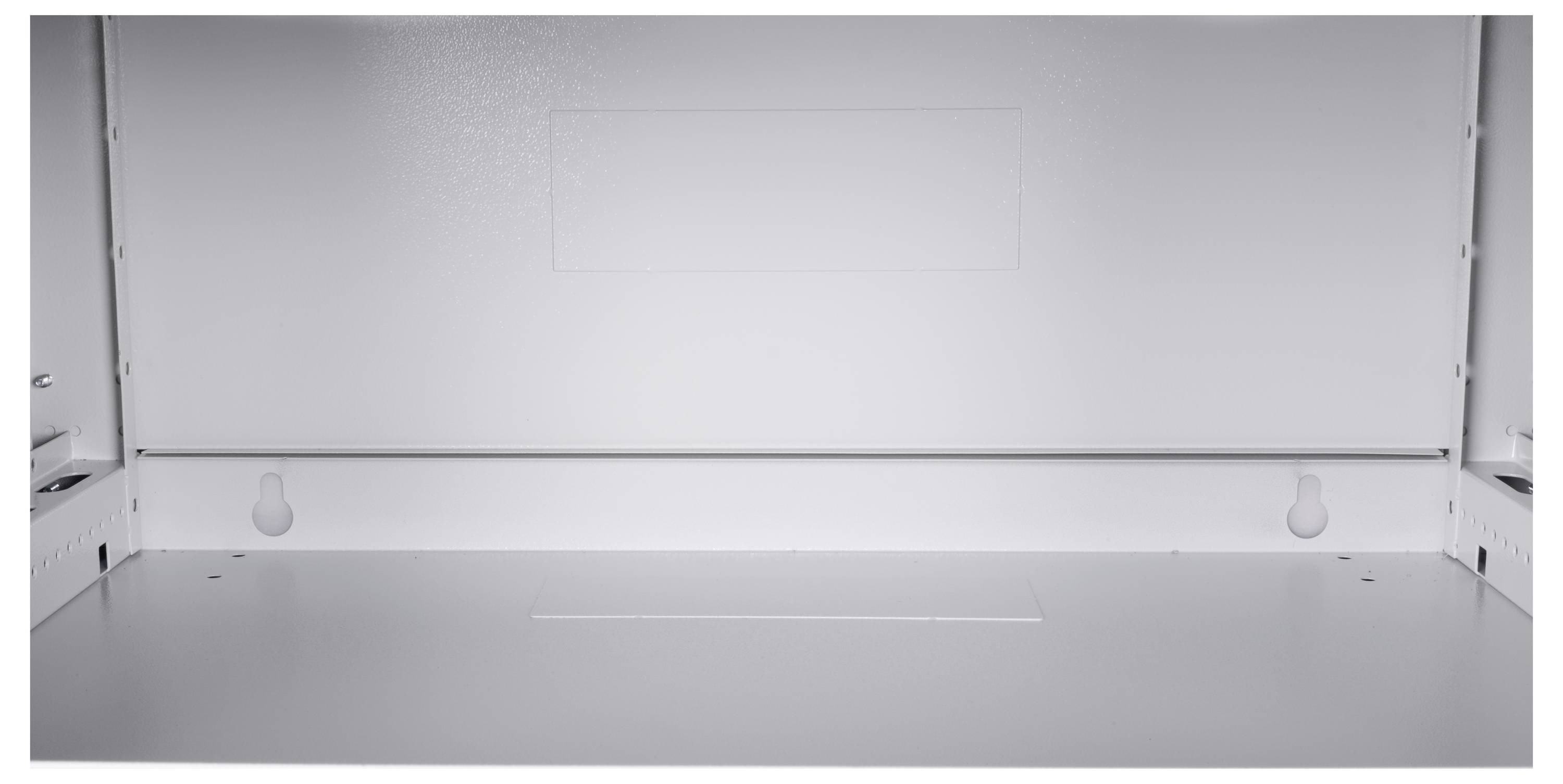

An empty, white metal cabinet interior with two small circular notches on the back wall, appearing clean and minimalistic.

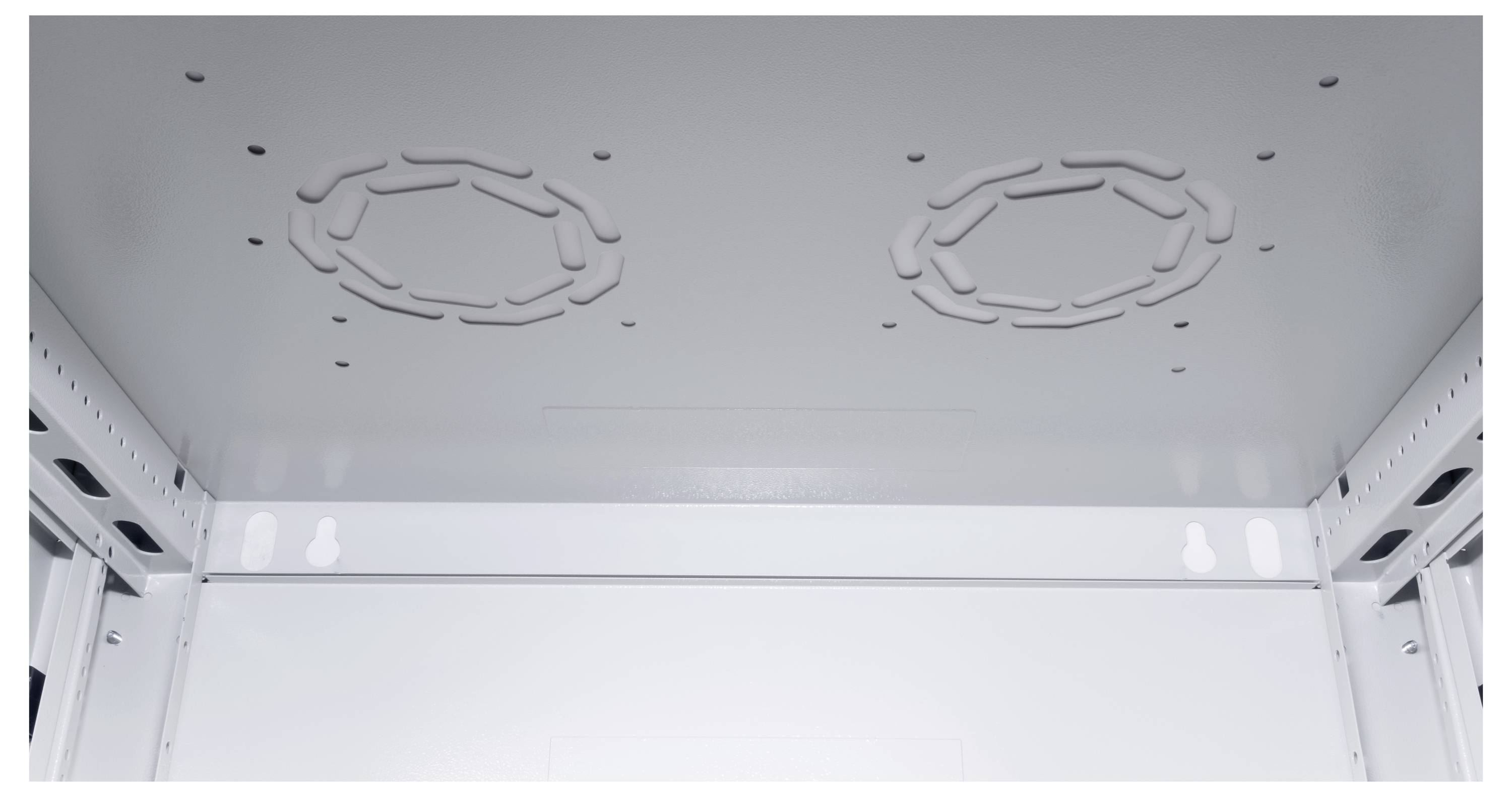

Interior ceiling view of a metal enclosure showing ventilation or cable access ports.

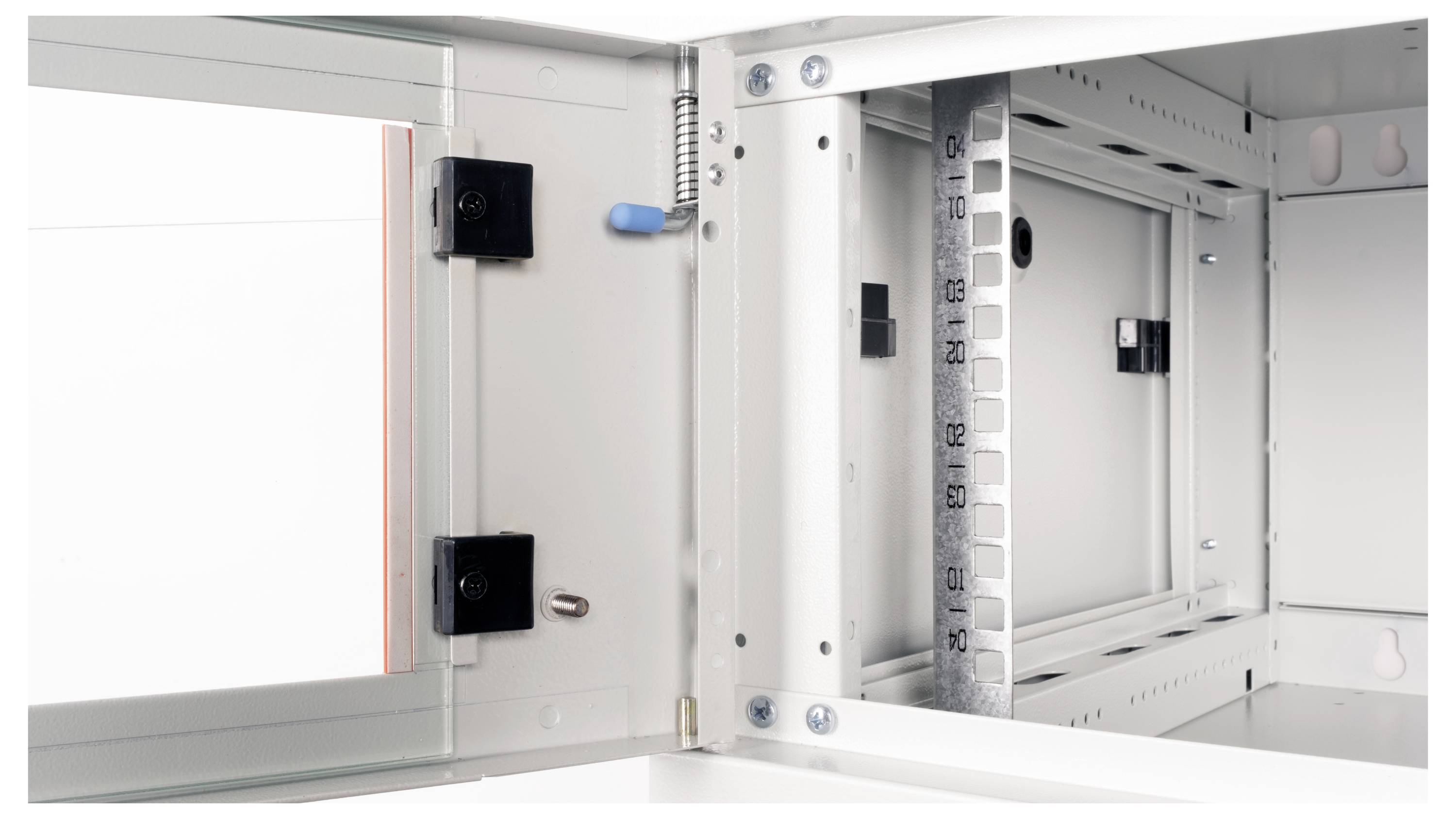

An open metallic electrical enclosure showing its interior, featuring latches, a measuring ruler, and a hinge with a spring mechanism.

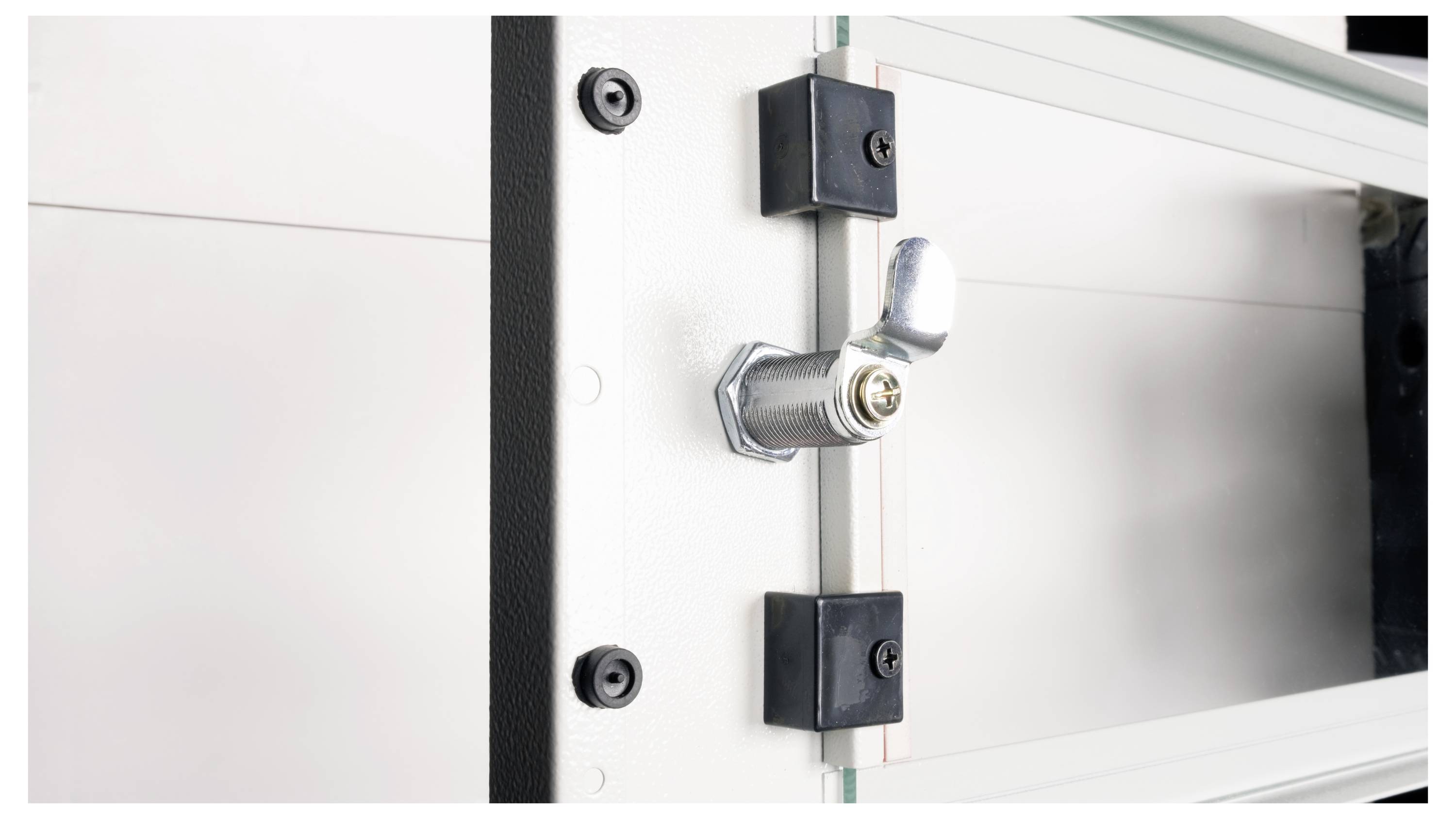

Close-up of a metal latch mechanism on a white surface, featuring screws and black fasteners, illustrating its secure attachment design.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ROLINE 19" wall housing basic plus 4He

Highlights & Details

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 4 U

Width: 600 mm

Height: 290 mm

Depth: 450 mm

Material: Steel

Dim: (W x H x D) 600 x 290 x 450 mm

Weight: 9800 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Cable length: 0 cm

Version: Cable

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414656 Roline 19" wall cabinet (W x H x D) 600 x 290 x 450 mm 4 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 450 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the acquisition of a fan module is made possible by a punched area in the roof. Inside a pair of galvanized profile rails with height units of 483 mm (19 ") is installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.
