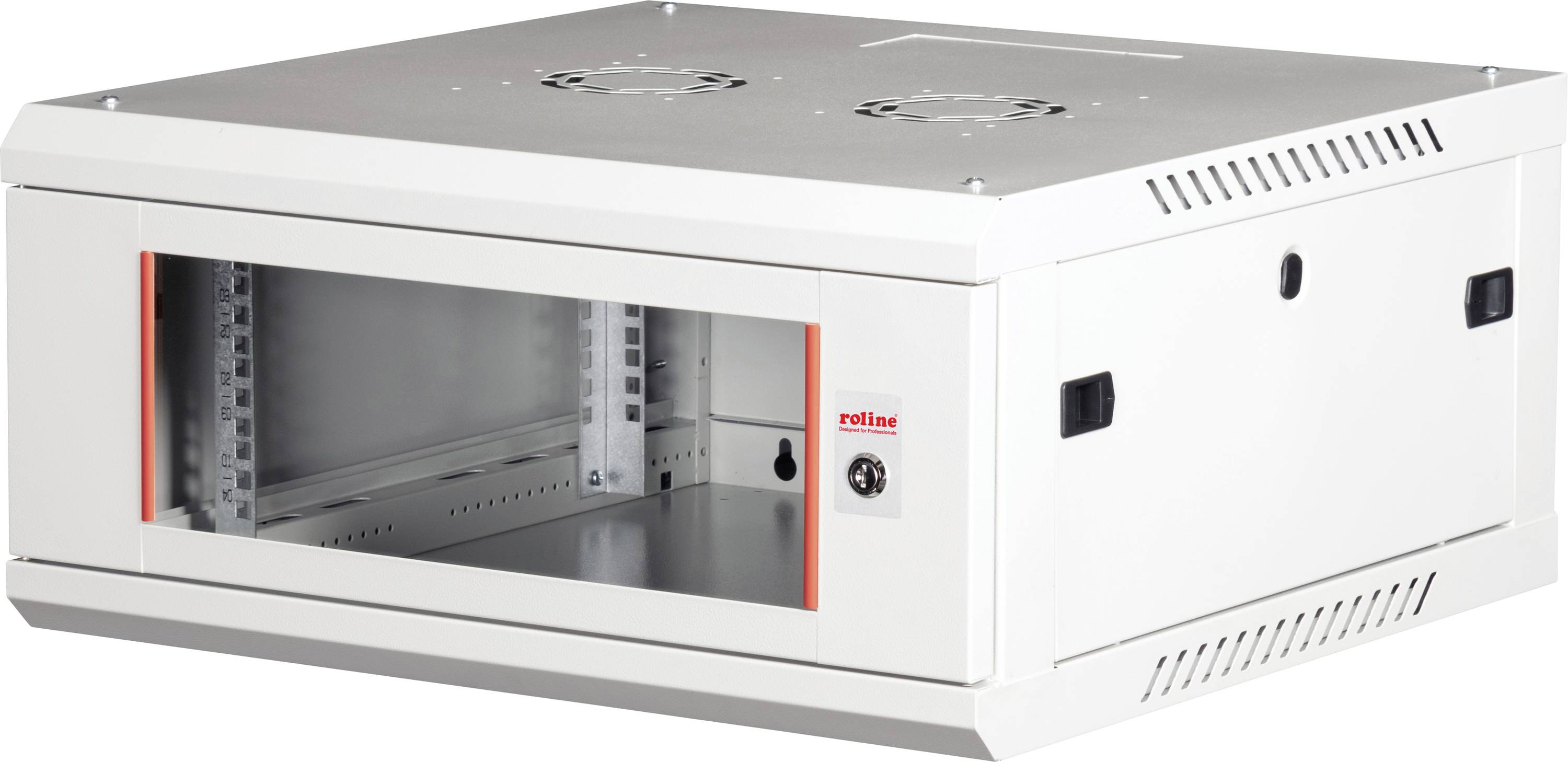

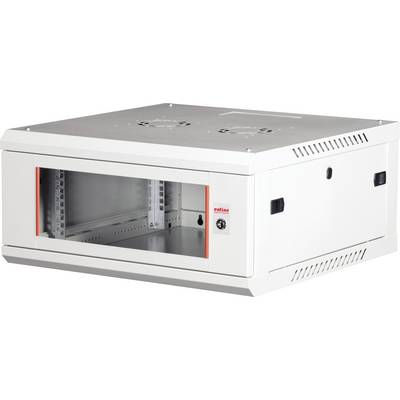

A white wall-mounted server rack with a glass front panel, showcasing internal slots for networking equipment, and a lockable door.

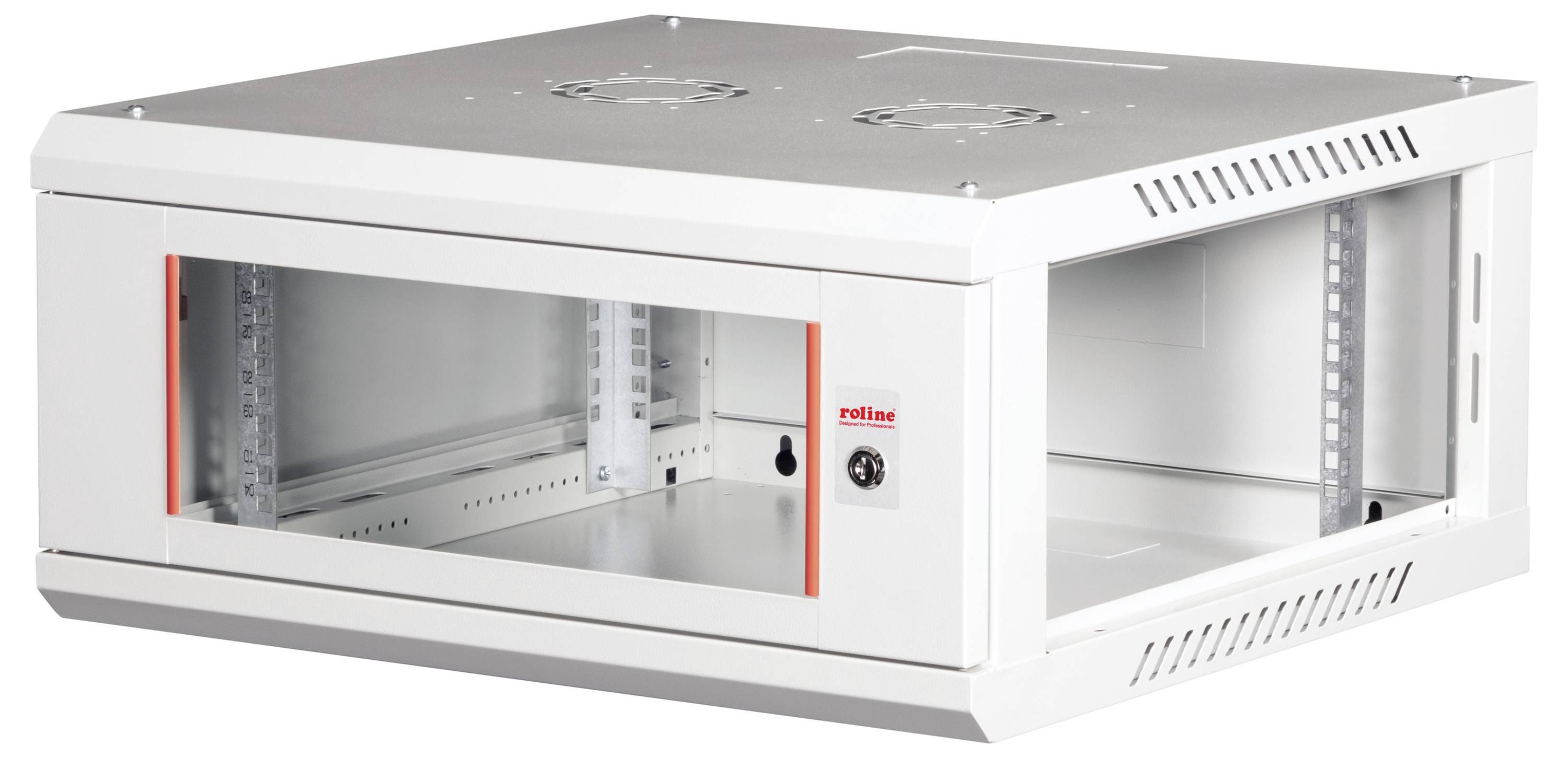

A small, white wall-mounted network cabinet with a glass door and ventilation slots on the sides, used for housing electronic equipment.

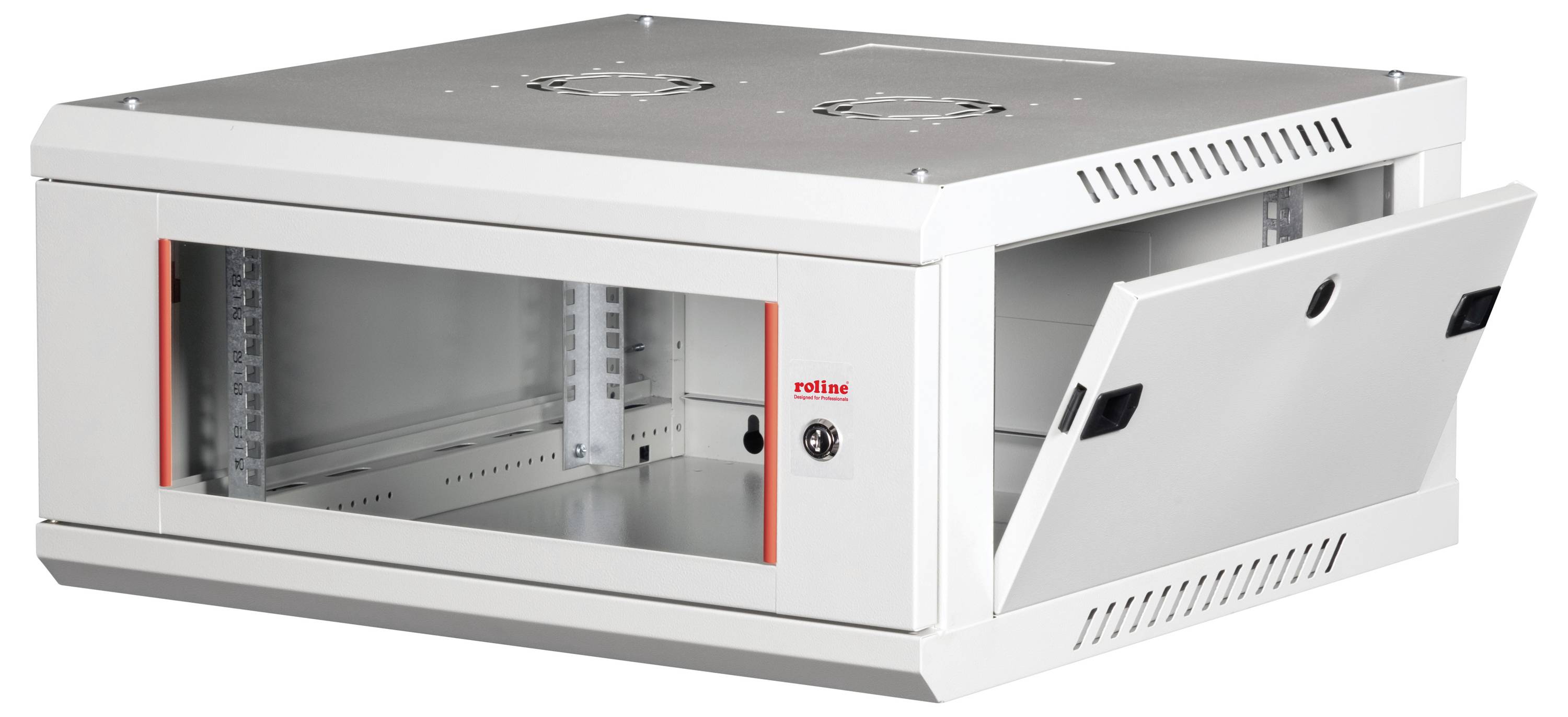

White server rack cabinet with a glass window and open side panel. Features a key lock and ventilation fans on top, for network equipment.

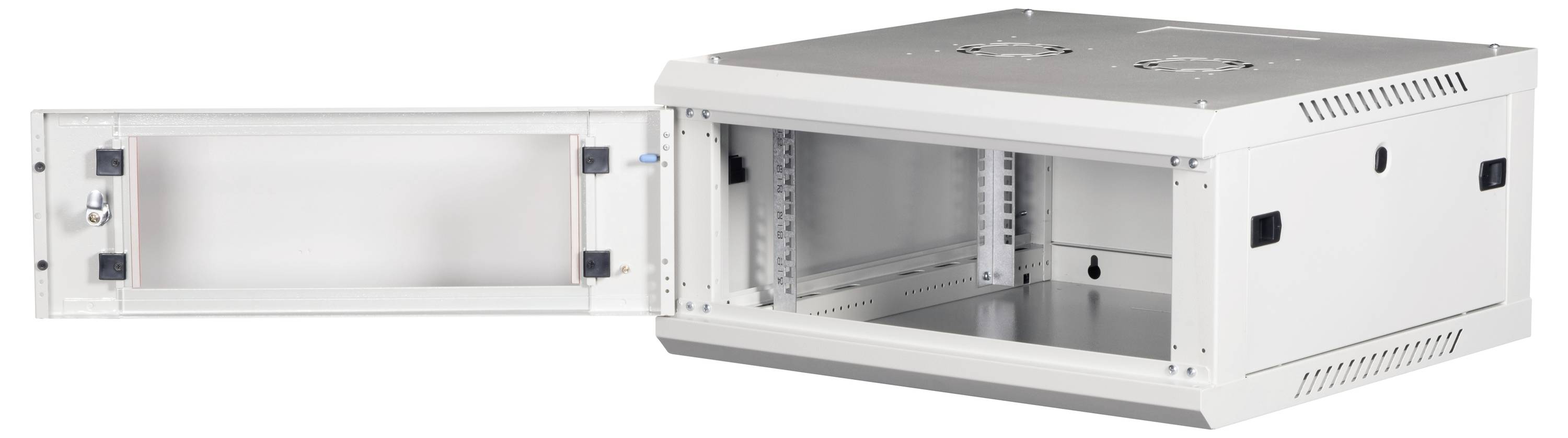

An open, empty metal server rack with a side panel door on the left, showing interior mounting rails and ventilation holes.

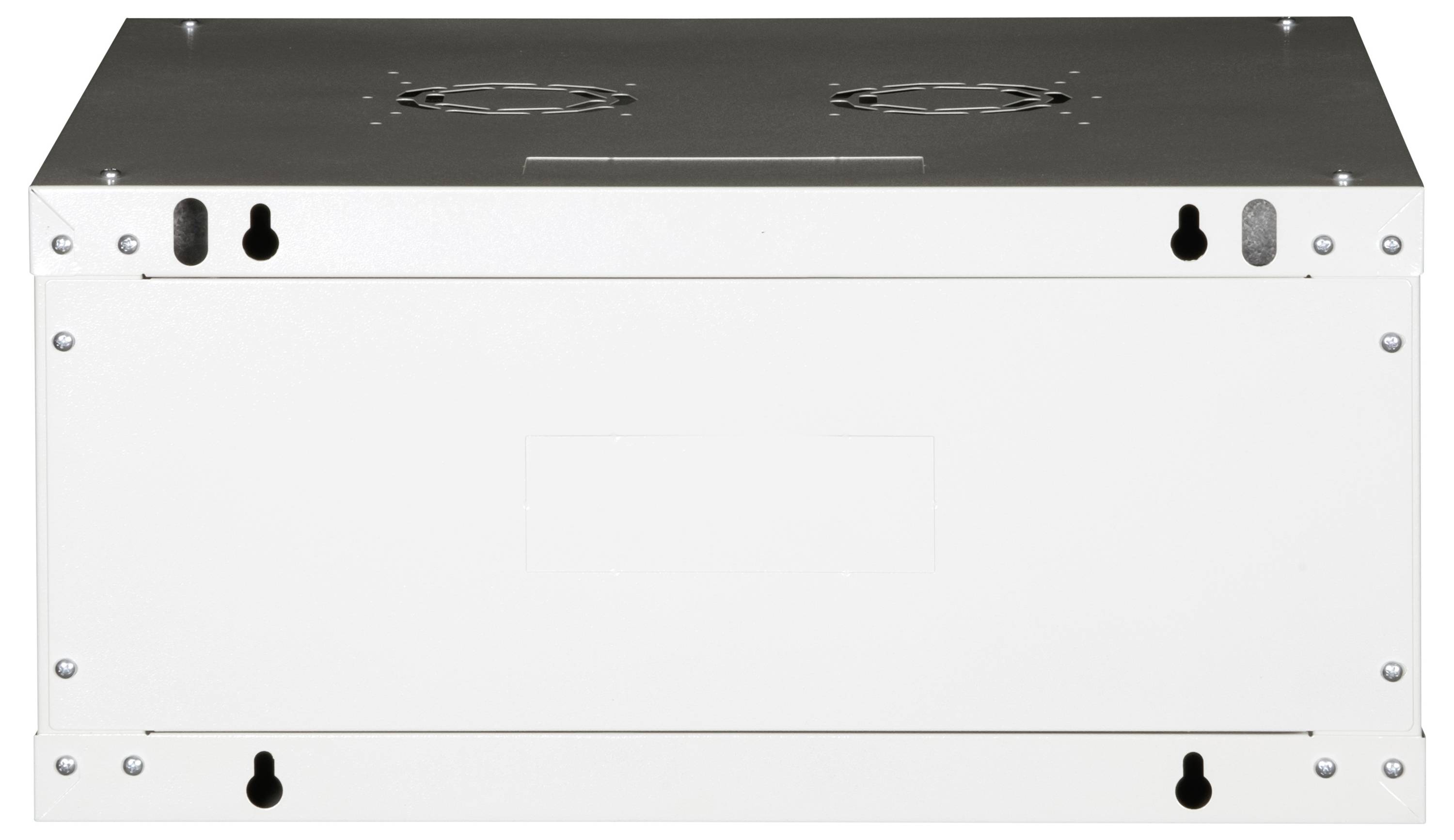

A rectangular metal box viewed from the back, featuring ventilation holes and mounting slots, likely for electronic or electrical use.

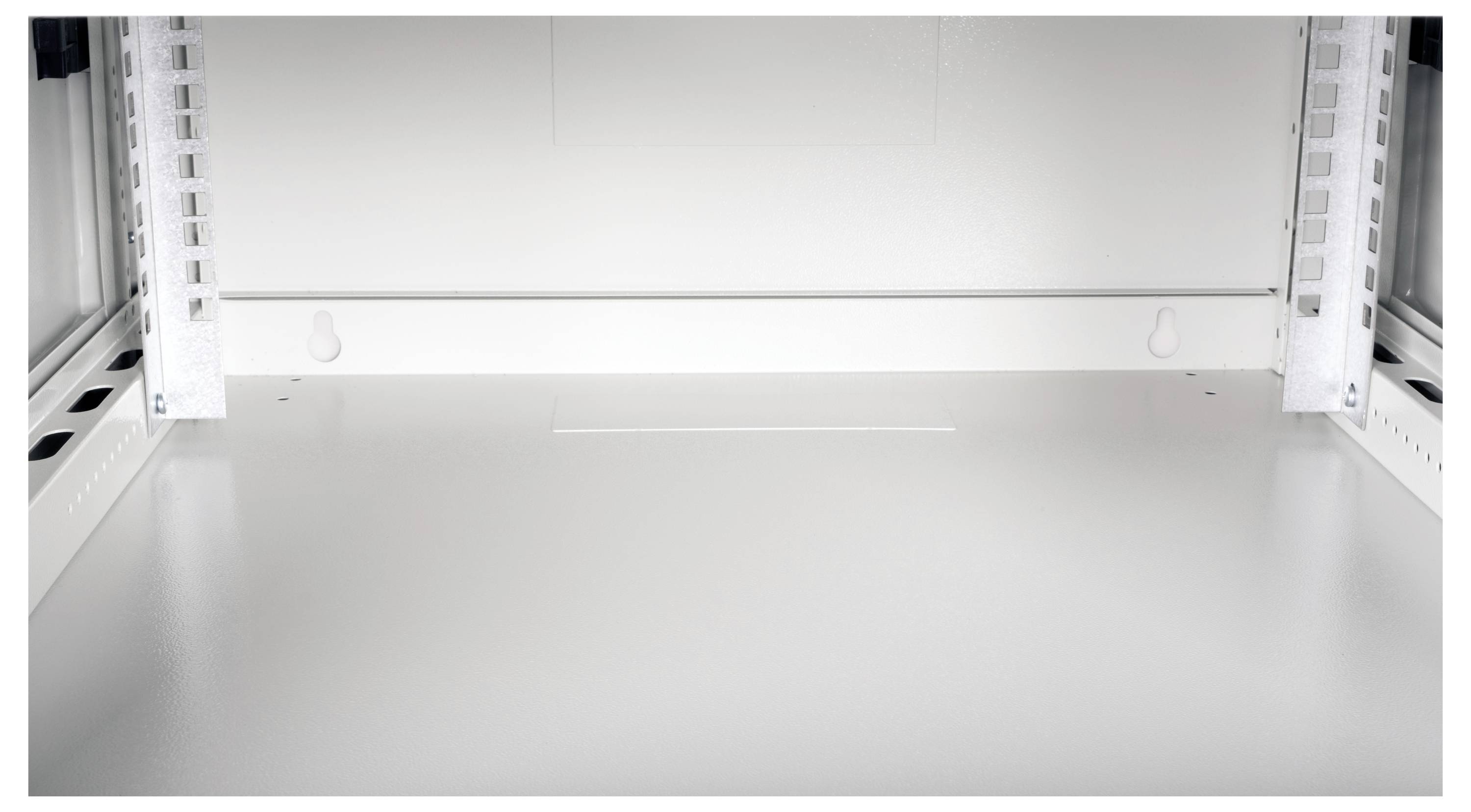

Empty, white, industrial storage rack with clean metallic surfaces, vertical support beams on either side, and no visible items.

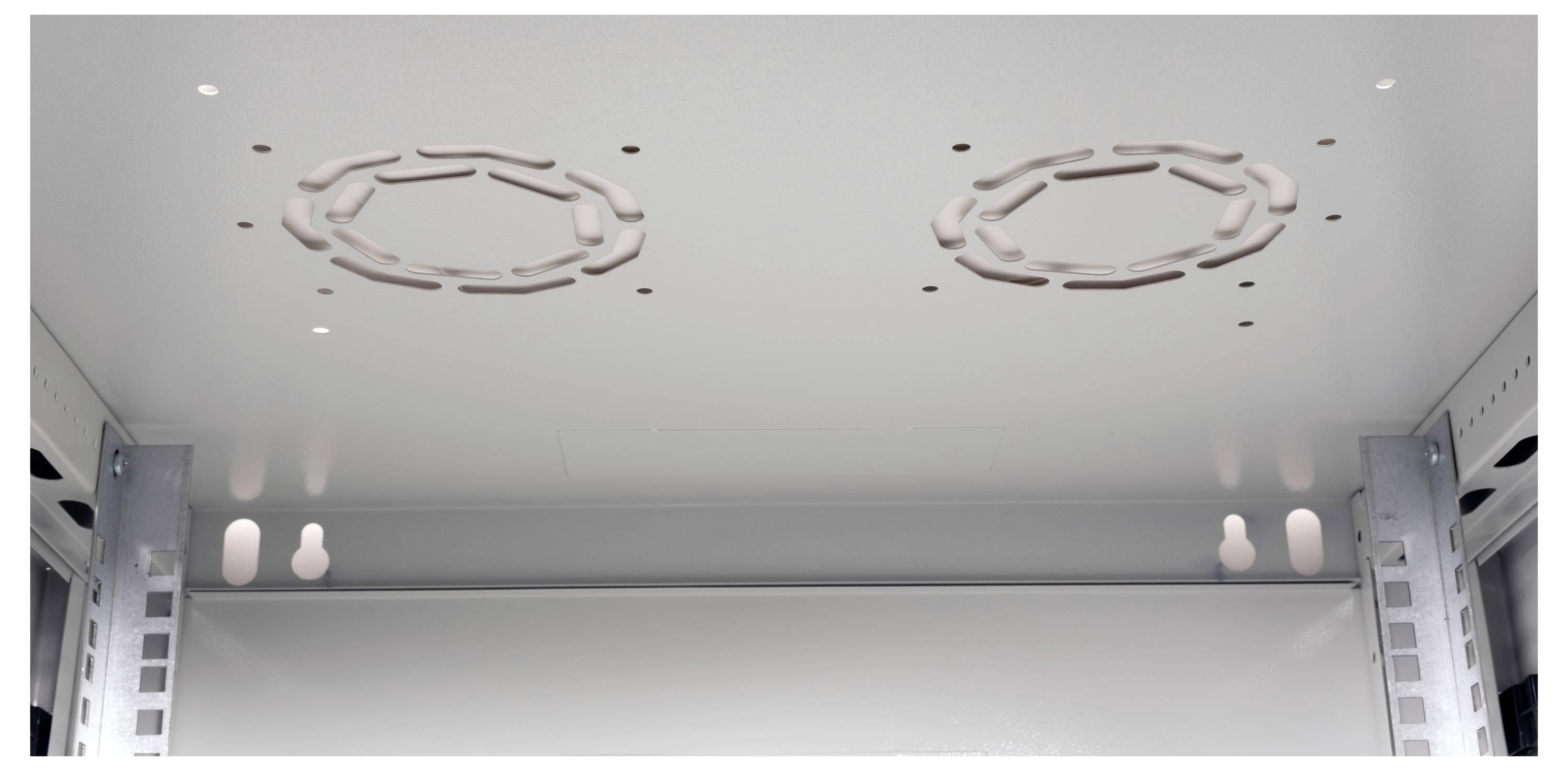

A white room with two circular patterns on the ceiling, reflecting light. The walls and ceiling are smooth with minimalistic design.

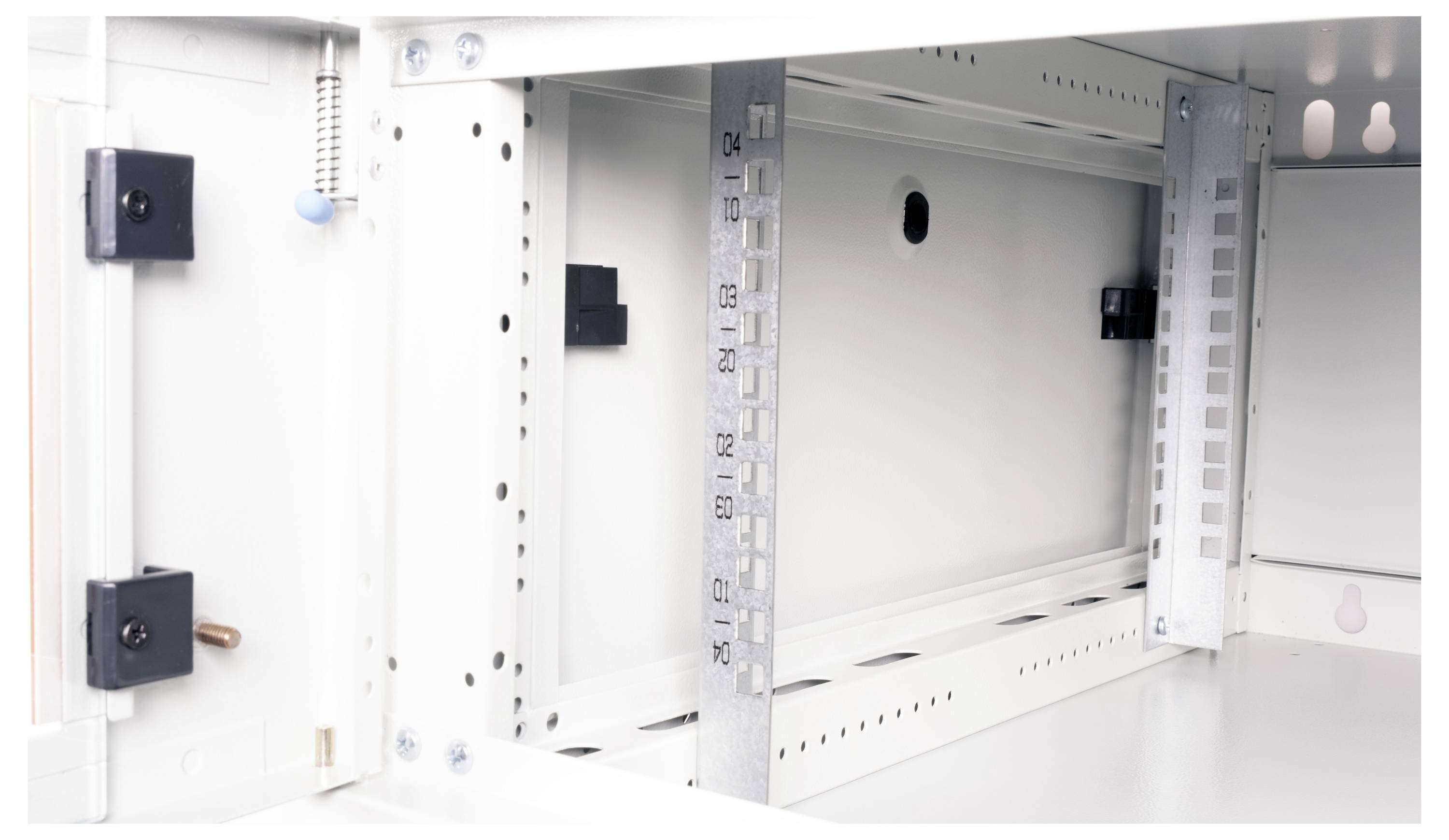

Inside view of a white electrical panel box showing mounting brackets and perforated metal strips for cable management.

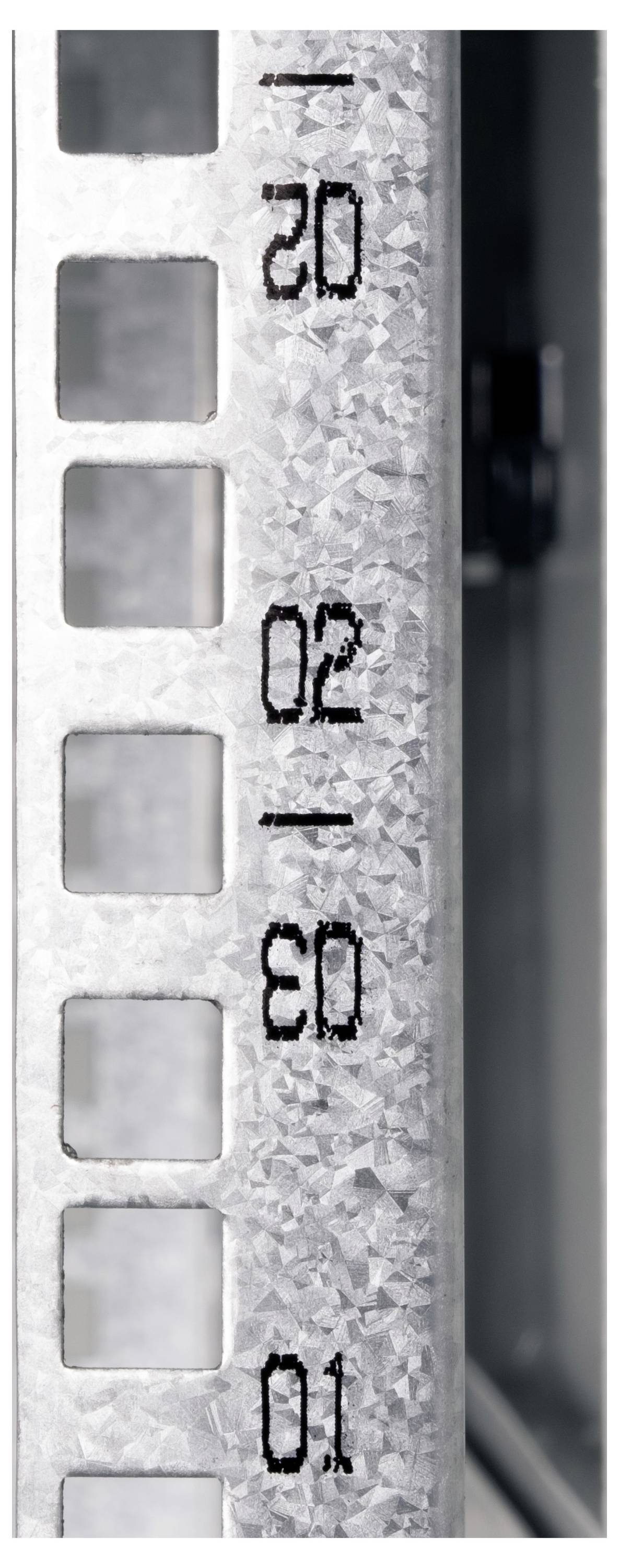

Close-up image of a metallic structure with numbered markings '01', '02', '03', and grid-like cutouts along its edge.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ROLINE 19" wall housing basic plus 4He

Highlights & Details

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 4 U

Width: 600 mm

Height: 290 mm

Depth: 600 mm

Dim: (W x H x D) 600 x 290 x 600 mm

Weight: 12250 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Version: Cable

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414668 Roline 19" wall cabinet (W x H x D) 600 x 290 x 600 mm 4 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 600 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the intake of a fan module is enabled by a punched area in the roof. Inside two pairs of galvanized profile rails with height units of 483 mm (19 ") are installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.
