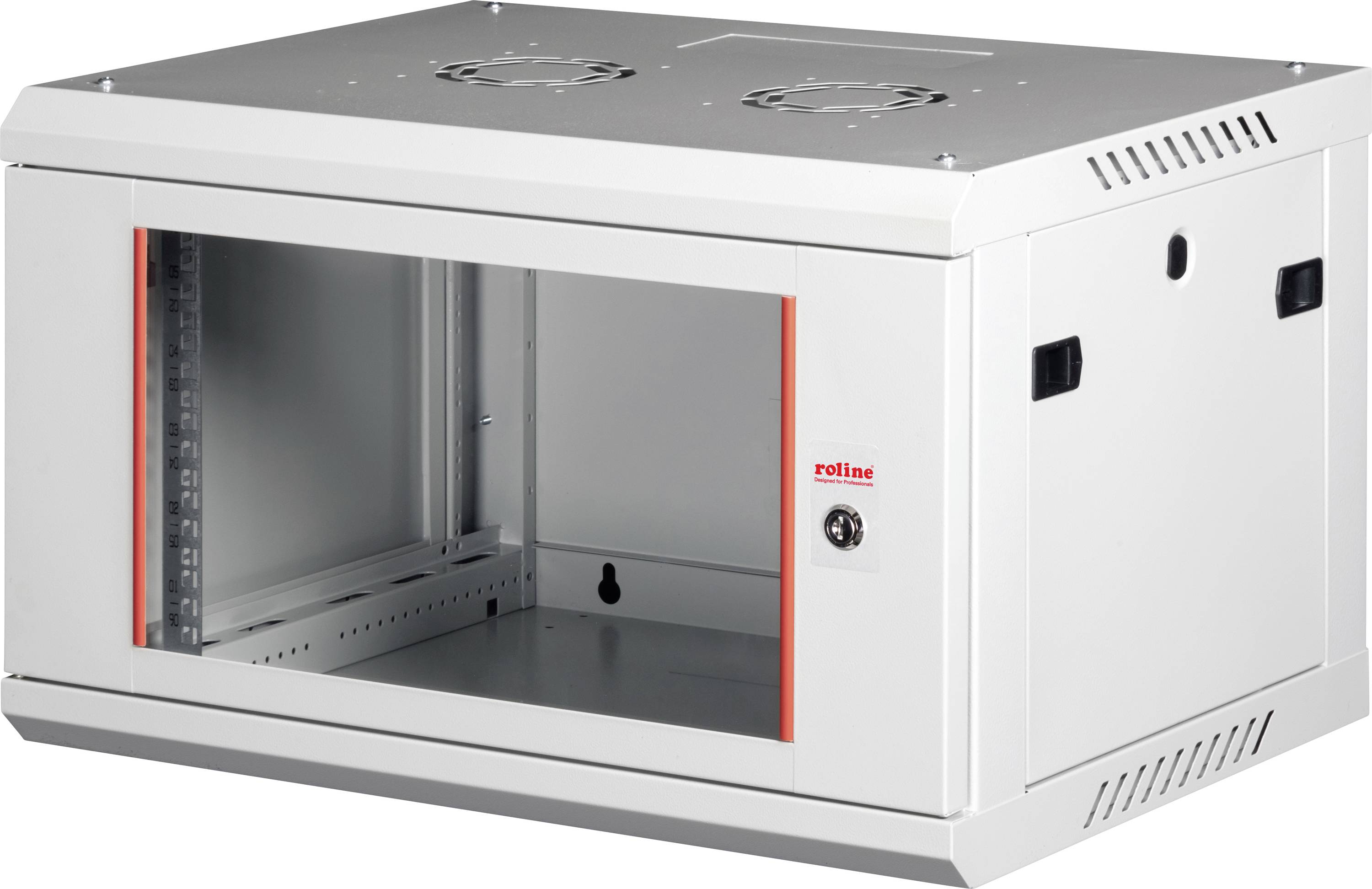

A wall-mounted server rack cabinet with a glass front door, ventilation slots, and a lock, used for organizing and securing network equipment.

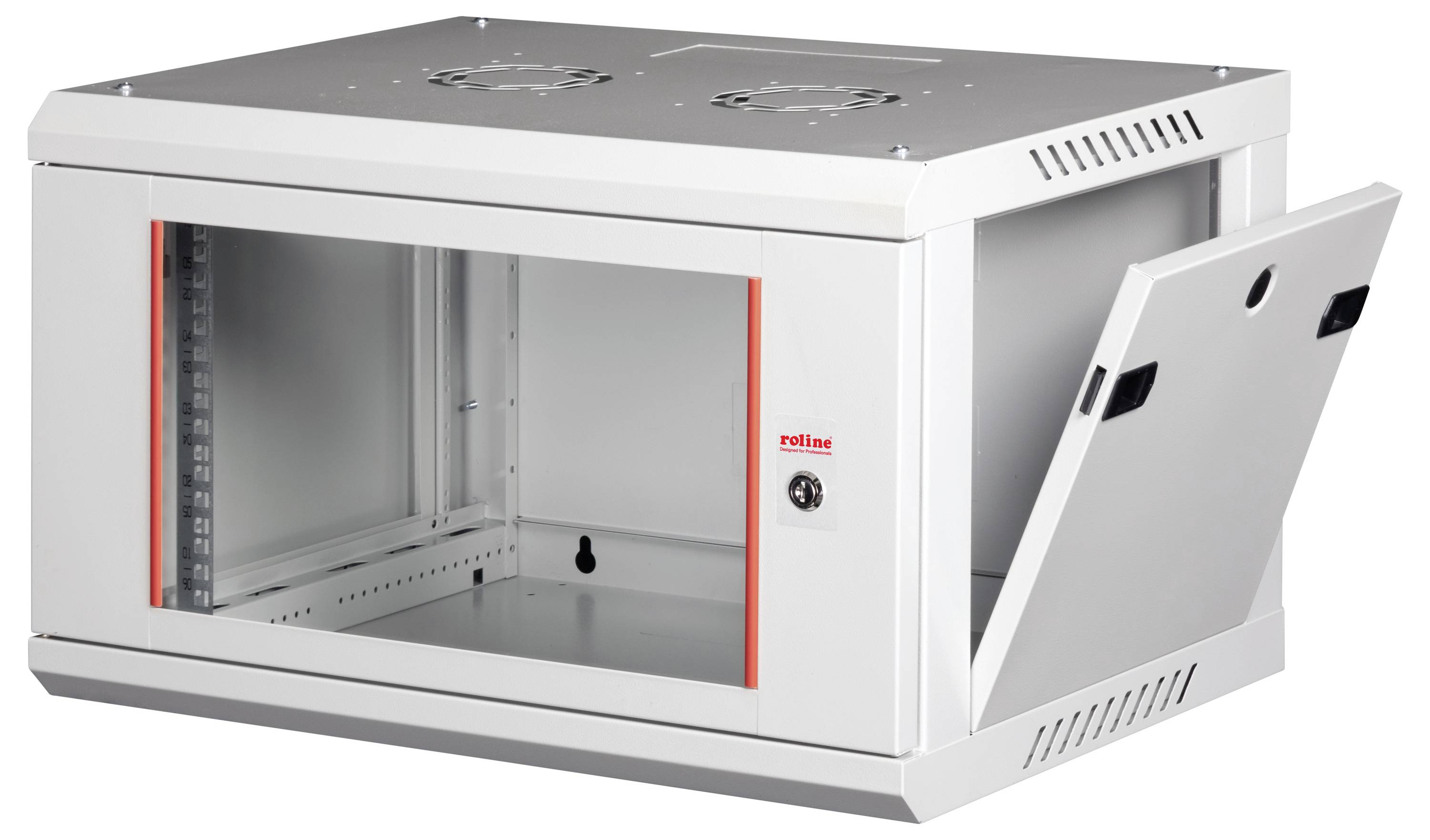

A wall-mounted server rack cabinet with a glass front door, partially open, showing internal mounting rails and ventilation slots.

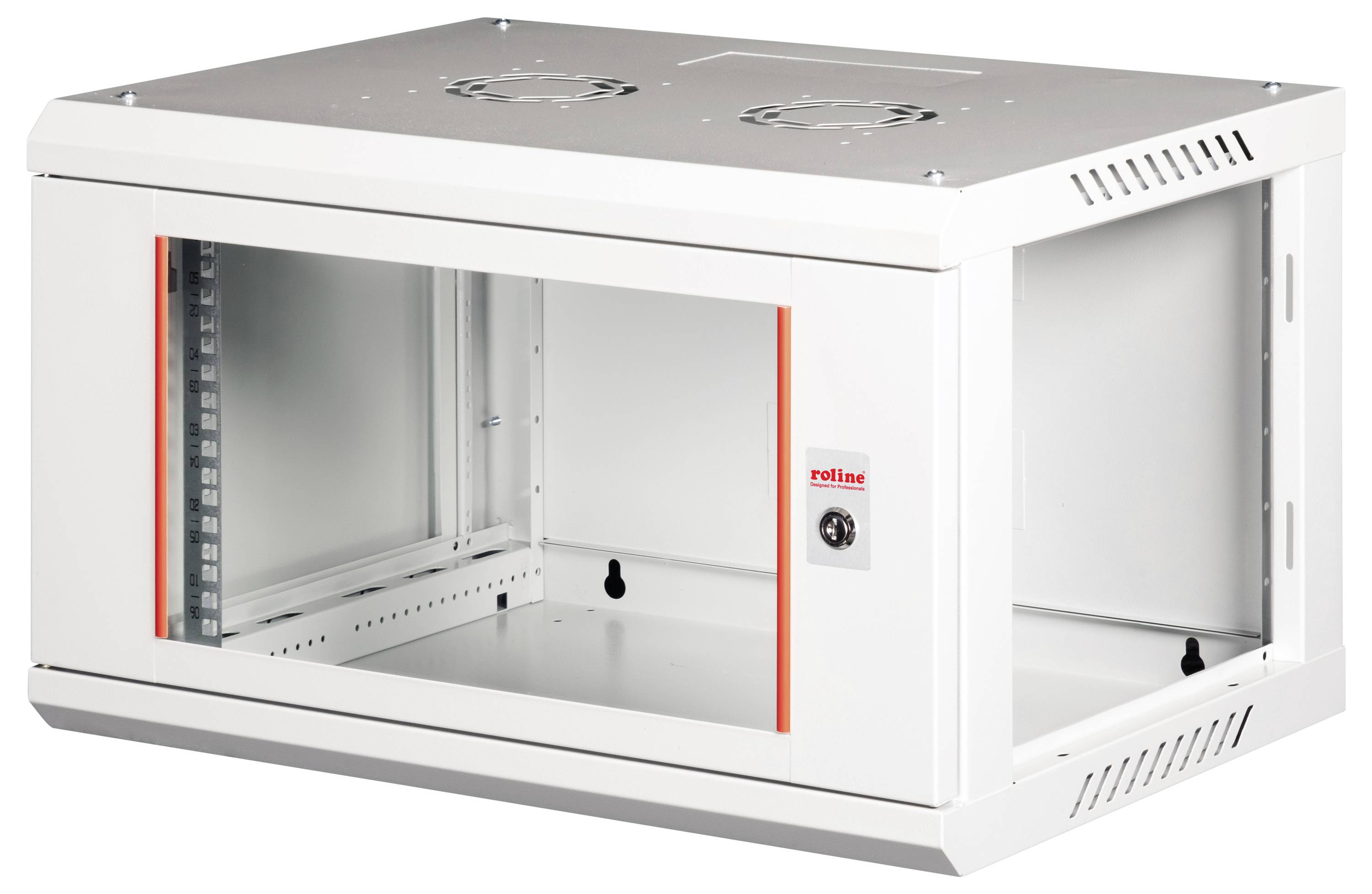

A white, rectangular network server cabinet with a transparent front door, ventilation fans on top, and a secure lock on the side.

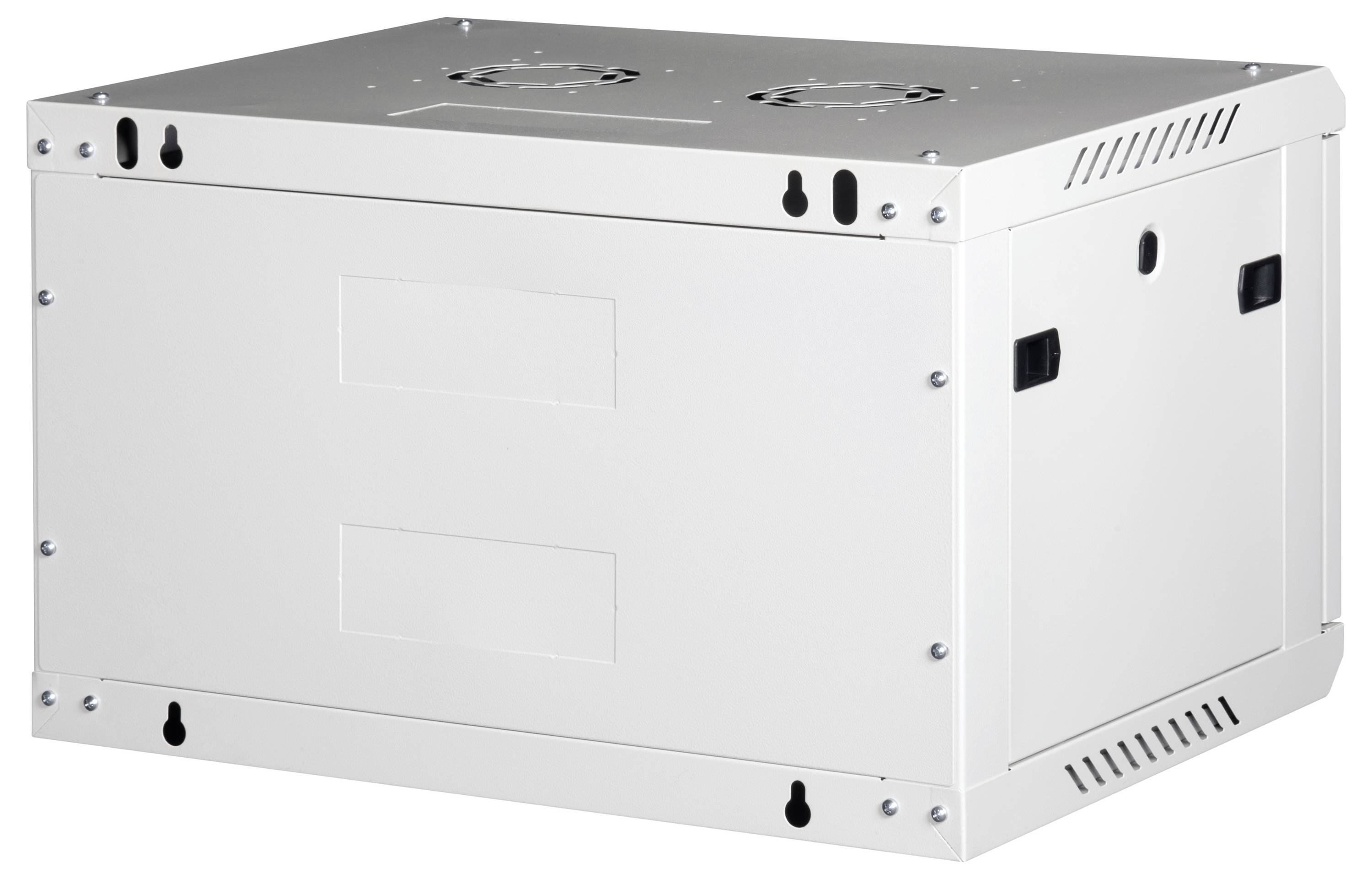

A white metal box with ventilation slots and mounting holes, used for housing electronic equipment.

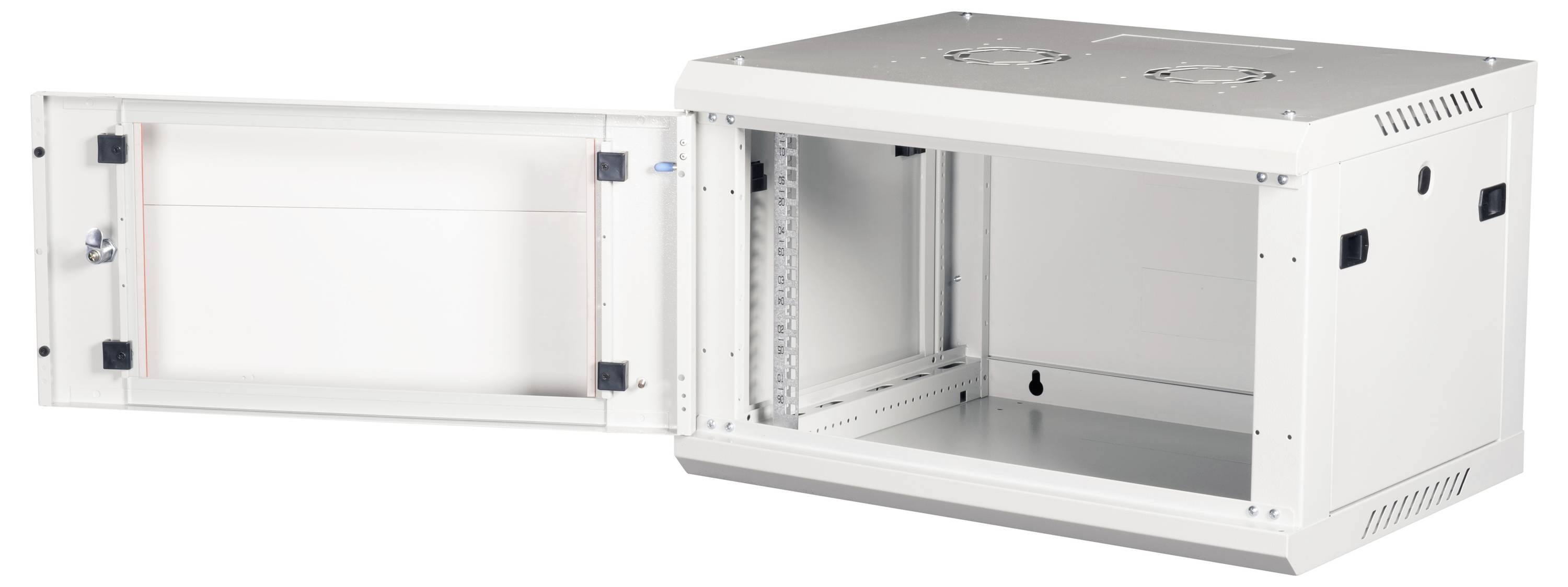

A white metal network cabinet with an open front door, showing interior shelving and ventilation slots, used for housing electronic equipment.

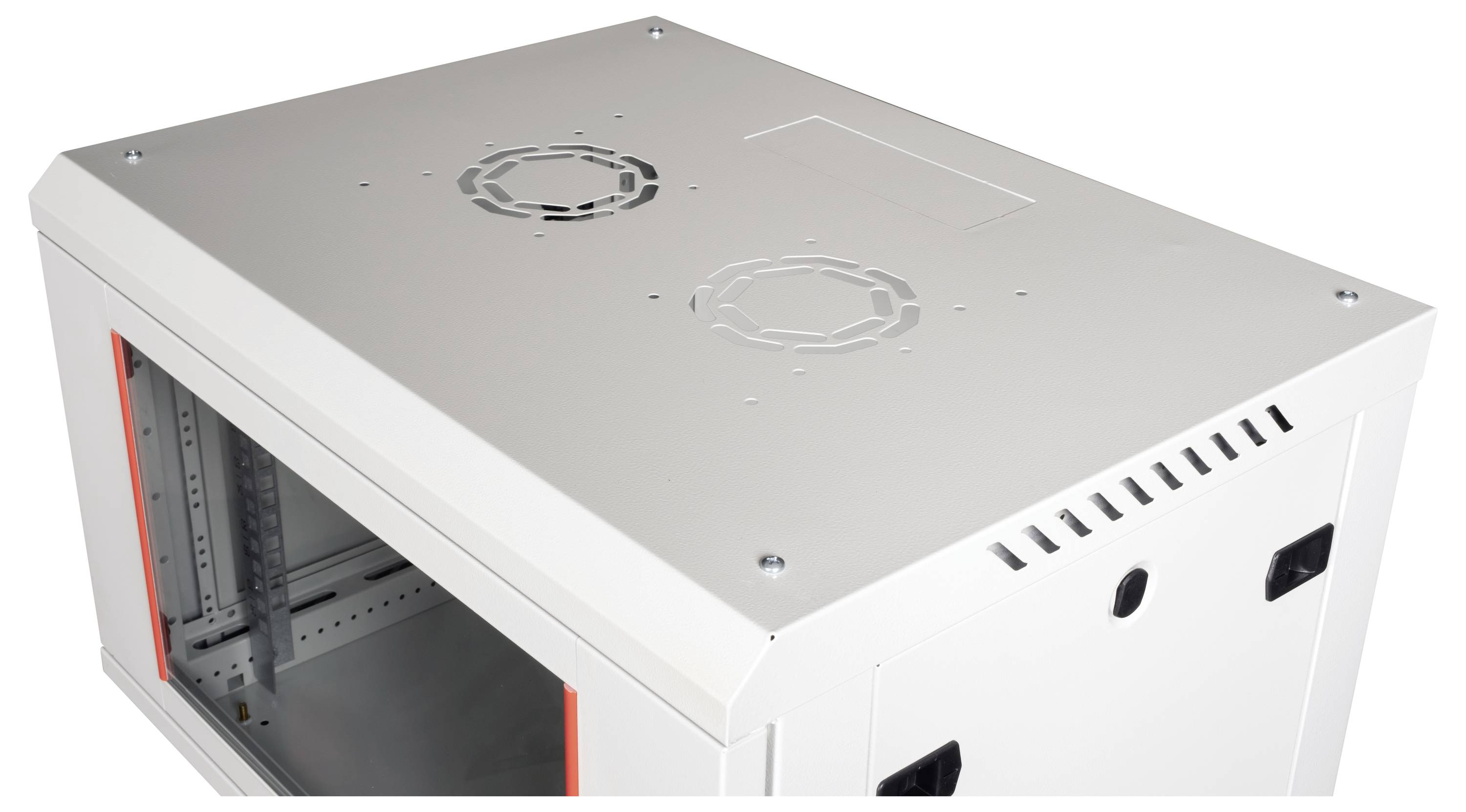

A white metal cabinet with a glass door and cooling vents on top, designed for housing electronic equipment or servers.

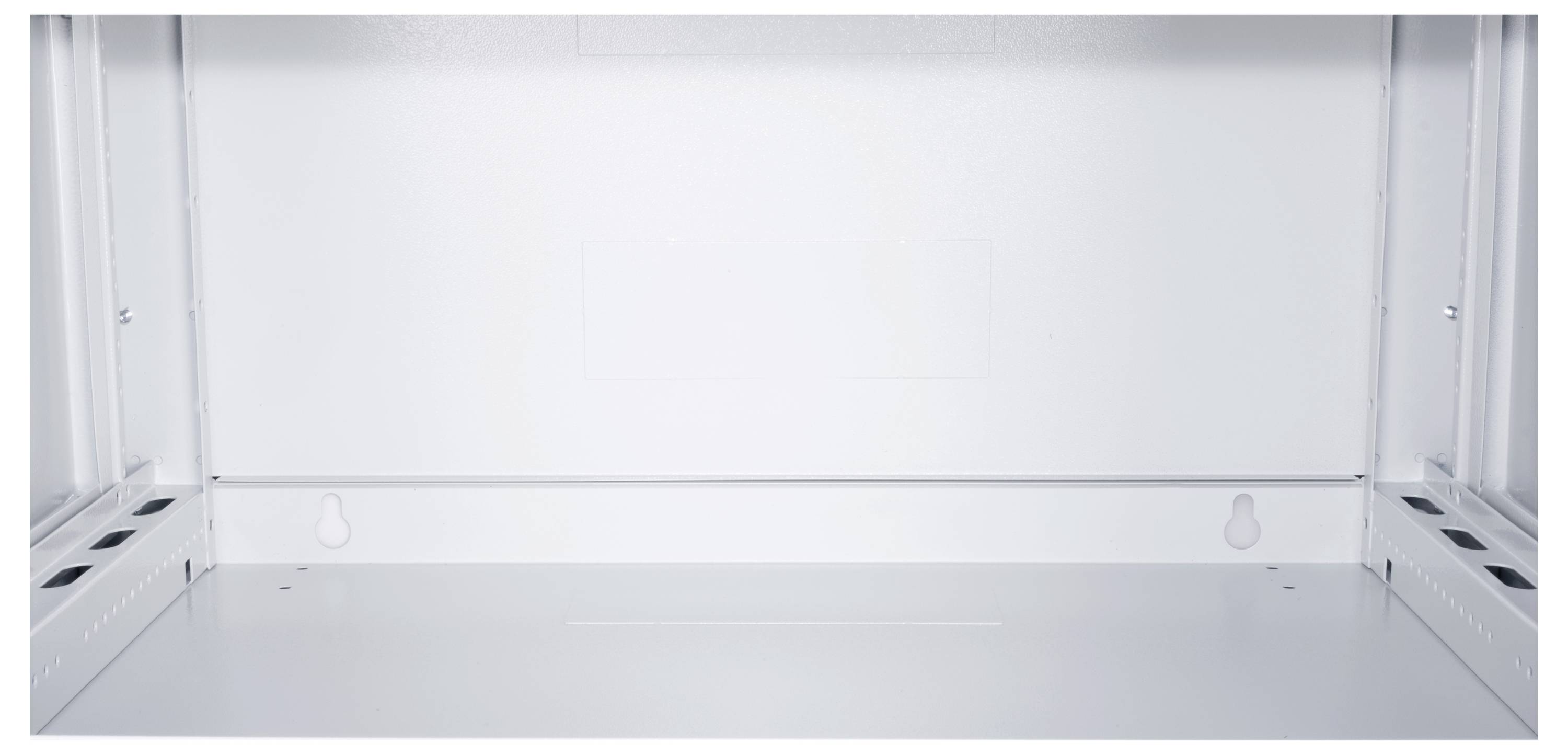

An empty, clean, white shelf with a smooth surface, ready for storage or display purposes, set against a plain white background.

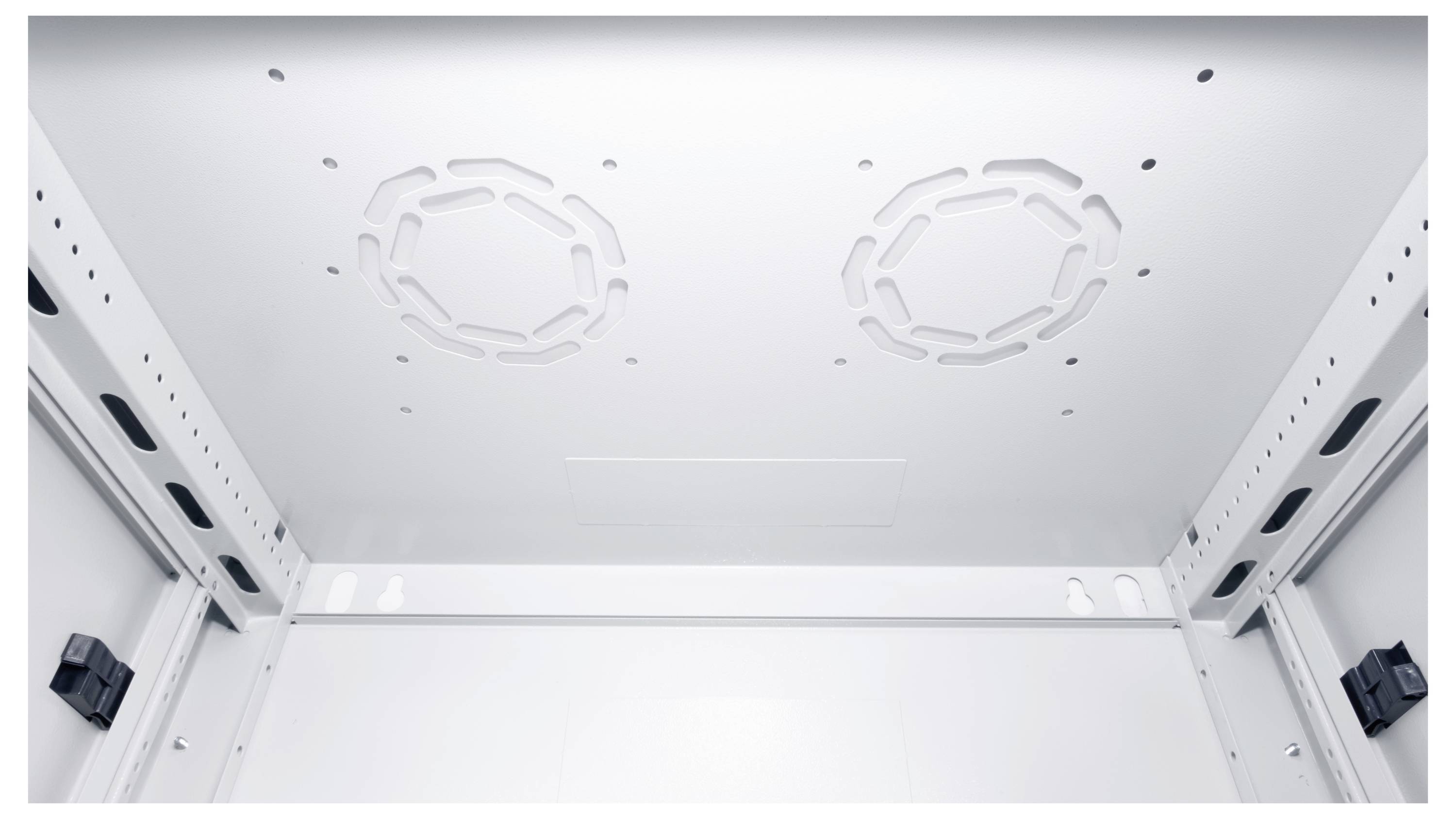

'Interior view of a white server or network cabinet, showing ceiling with ventilation holes, symmetrical structure, and cable management features.'

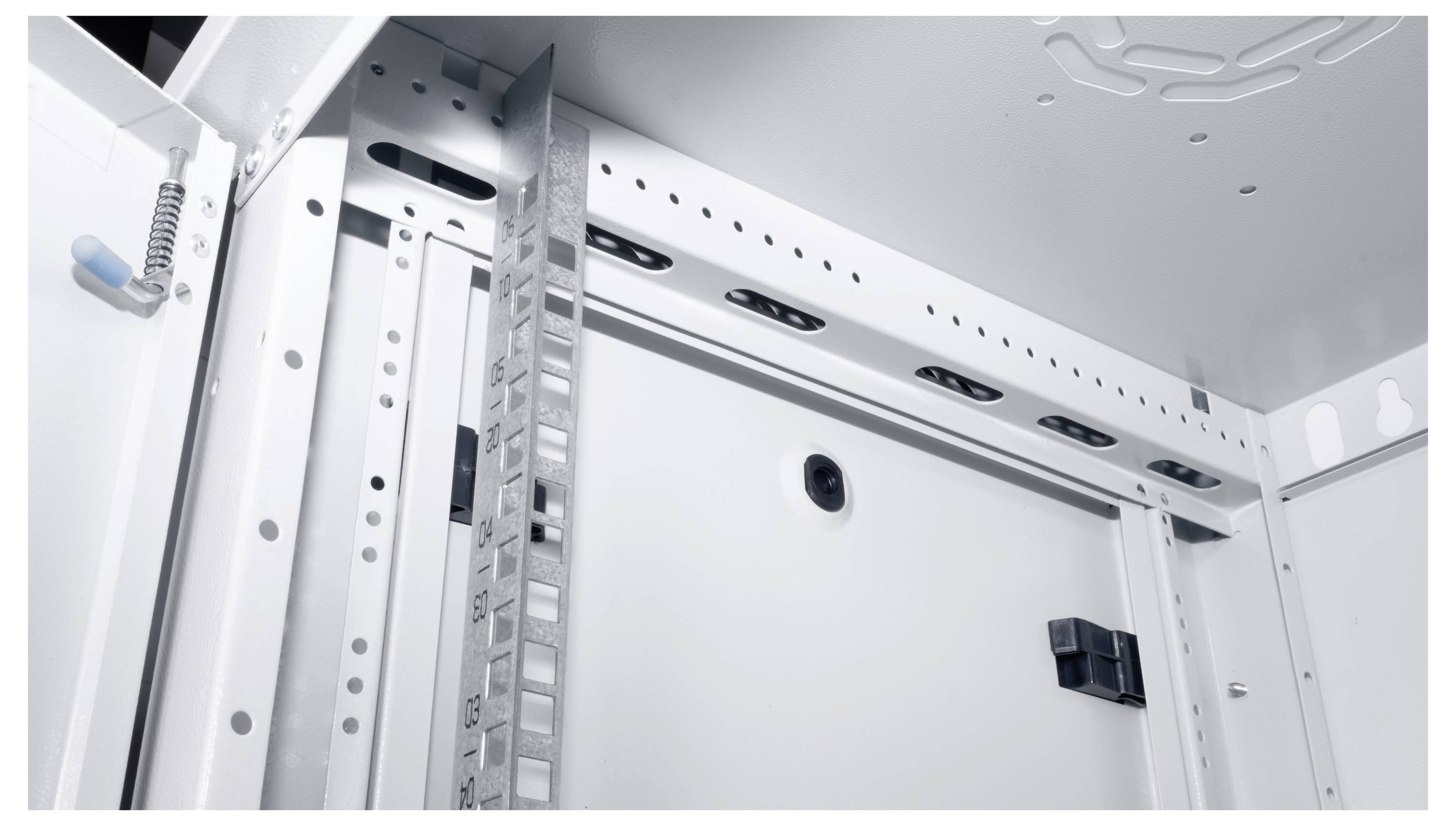

Interior view of an industrial server rack, showing metal framework and a mounted rail, designed for organizing electronic equipment.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ROLINE 19" wall housing basic plus 6 RU

Highlights & Details

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 6 U

Width: 600 mm

Height: 379 mm

Depth: 450 mm

Material: Steel

Dim: (W x H x D) 600 x 379 x 450 mm

Weight: 11250 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Cable length: 0 cm

Version: Cable

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414658 Roline 19" wall cabinet (W x H x D) 600 x 379 x 450 mm 6 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 450 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the acquisition of a fan module is made possible by a punched area in the roof. Inside a pair of galvanized profile rails with height units of 483 mm (19 ") is installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.
