Buy Roline 19" wall cabinet (W x H x D) 600 x 512 x 600 mm 9 U Grey

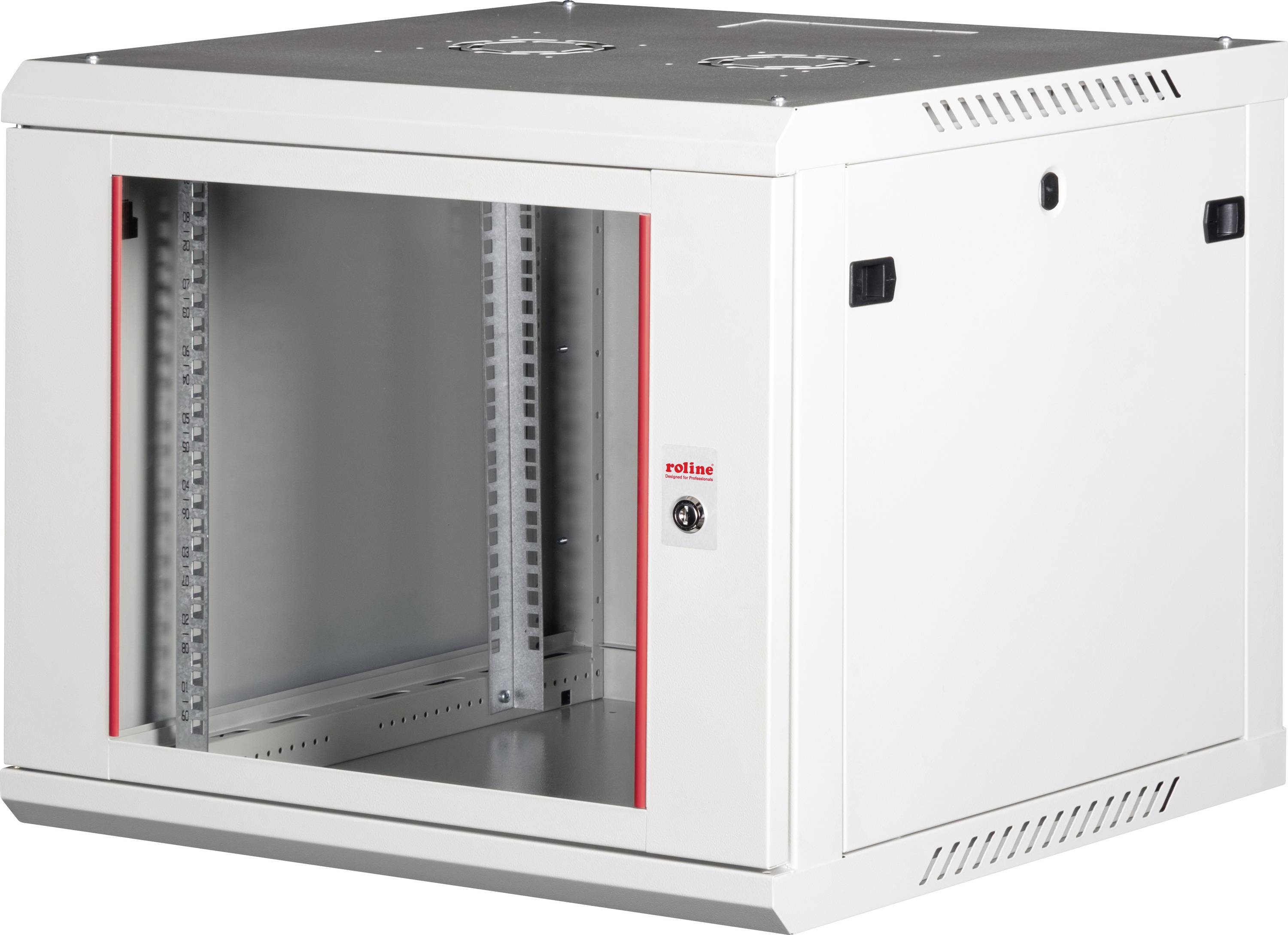

A white server rack cabinet with a transparent front door, vented side panels, and a lock, used for housing networking equipment.

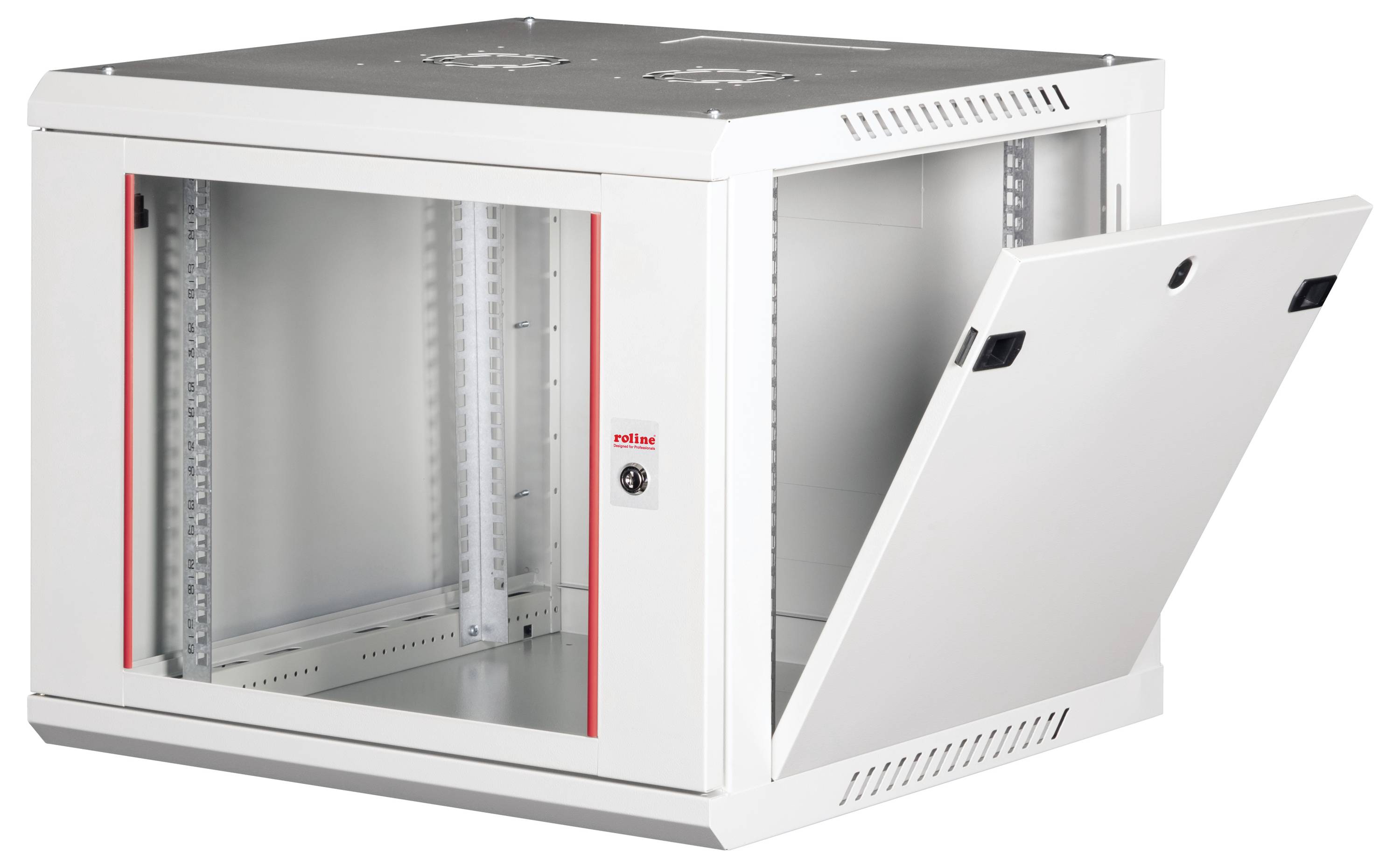

A white metal wall-mounted server rack with a transparent side panel and an open front door, suitable for housing electronic equipment.

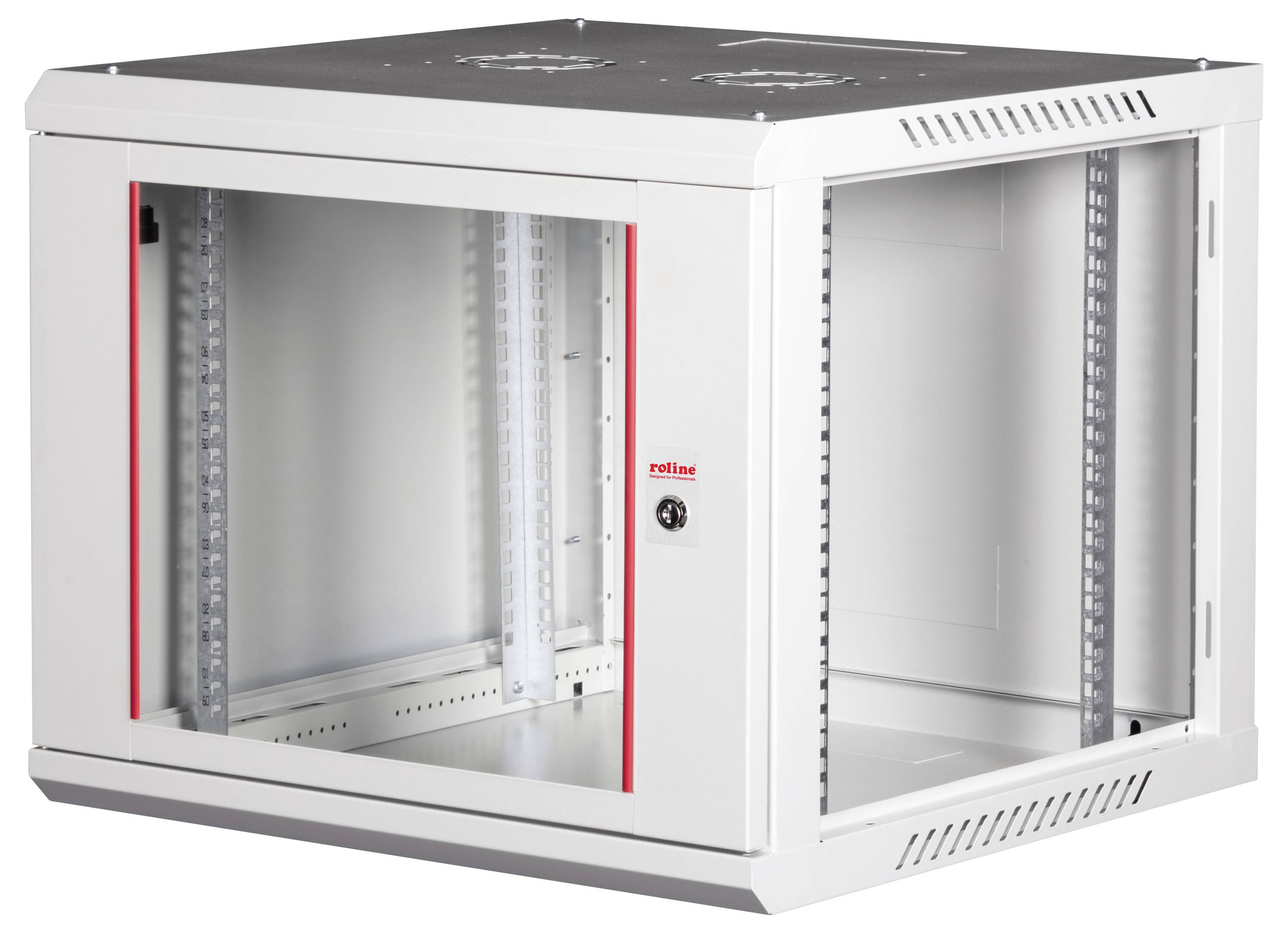

A white server rack cabinet with transparent doors and a side vent for ventilation, suitable for storing network equipment.

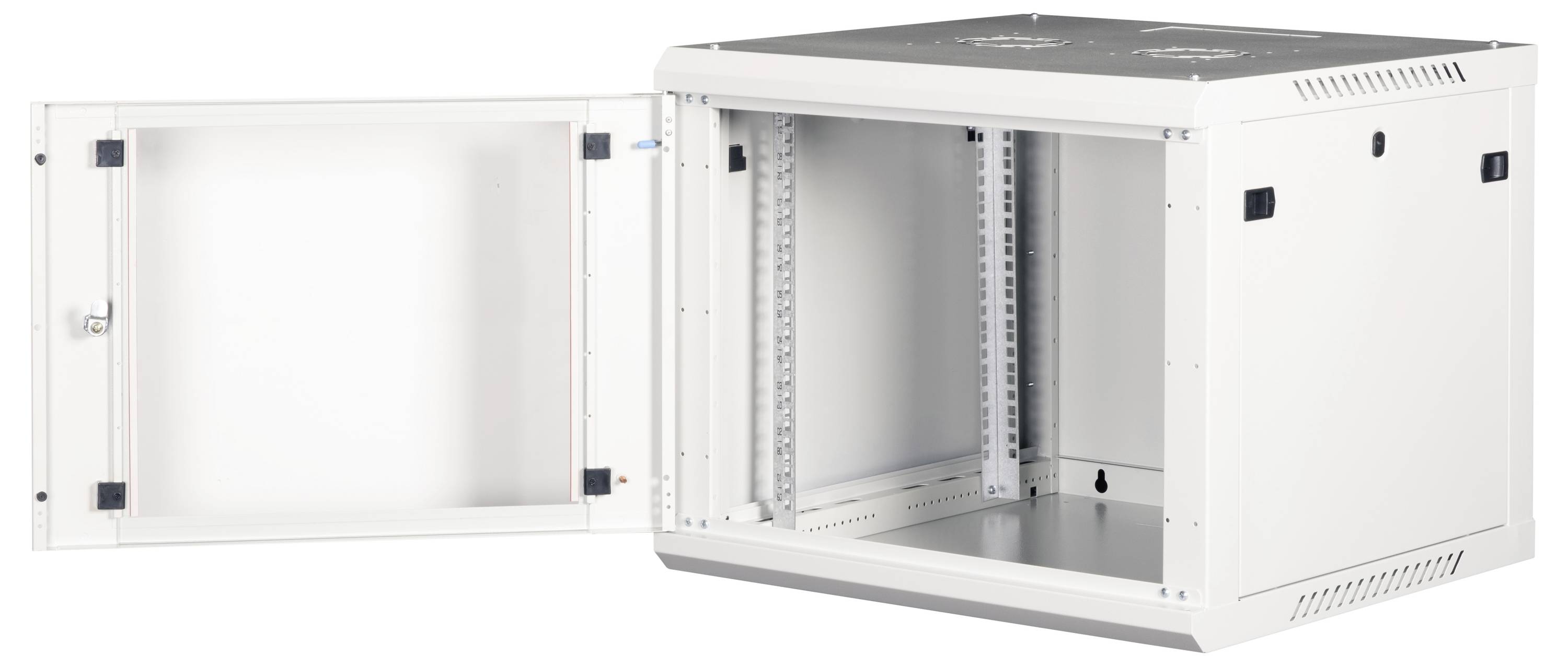

A white, open server cabinet with a hinged door, showing internal shelving and racks. Designed for network or electronic equipment storage.

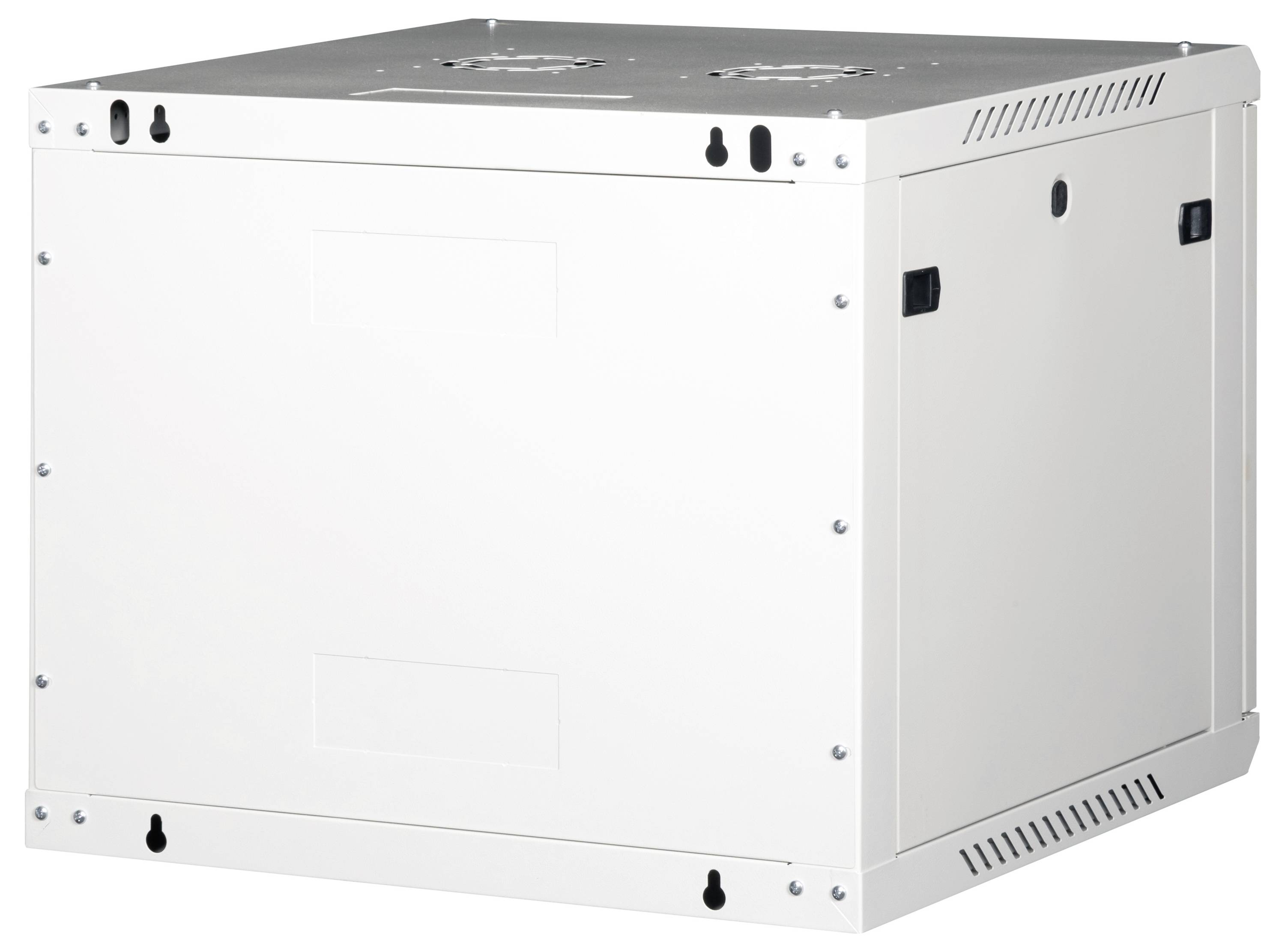

A white, rectangular box with ventilation slots, small handles, and visible screws on the corners, likely an electronic equipment enclosure.

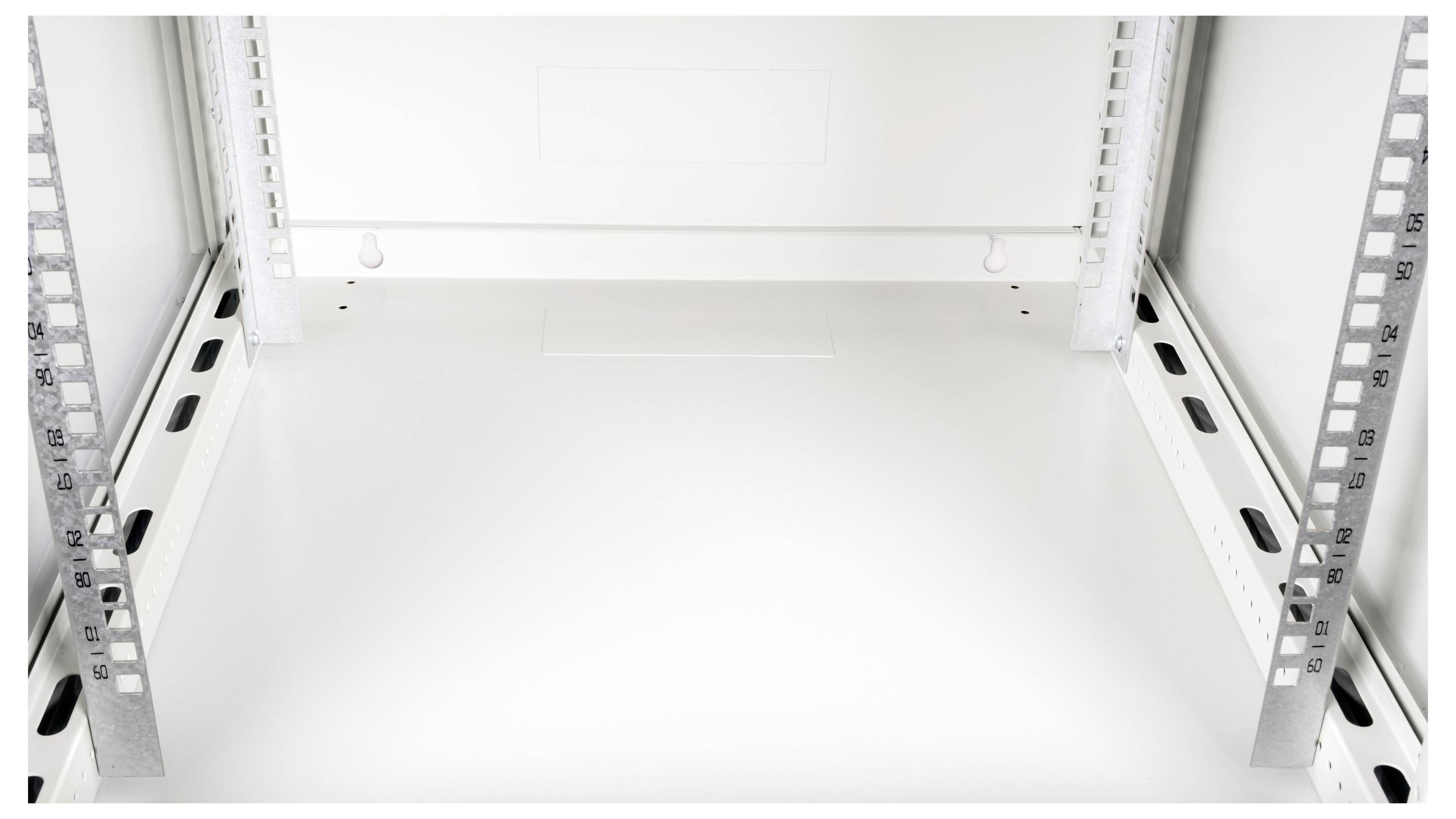

Empty white server rack with metal rails and ventilation holes on the sides, suitable for installing networking equipment.

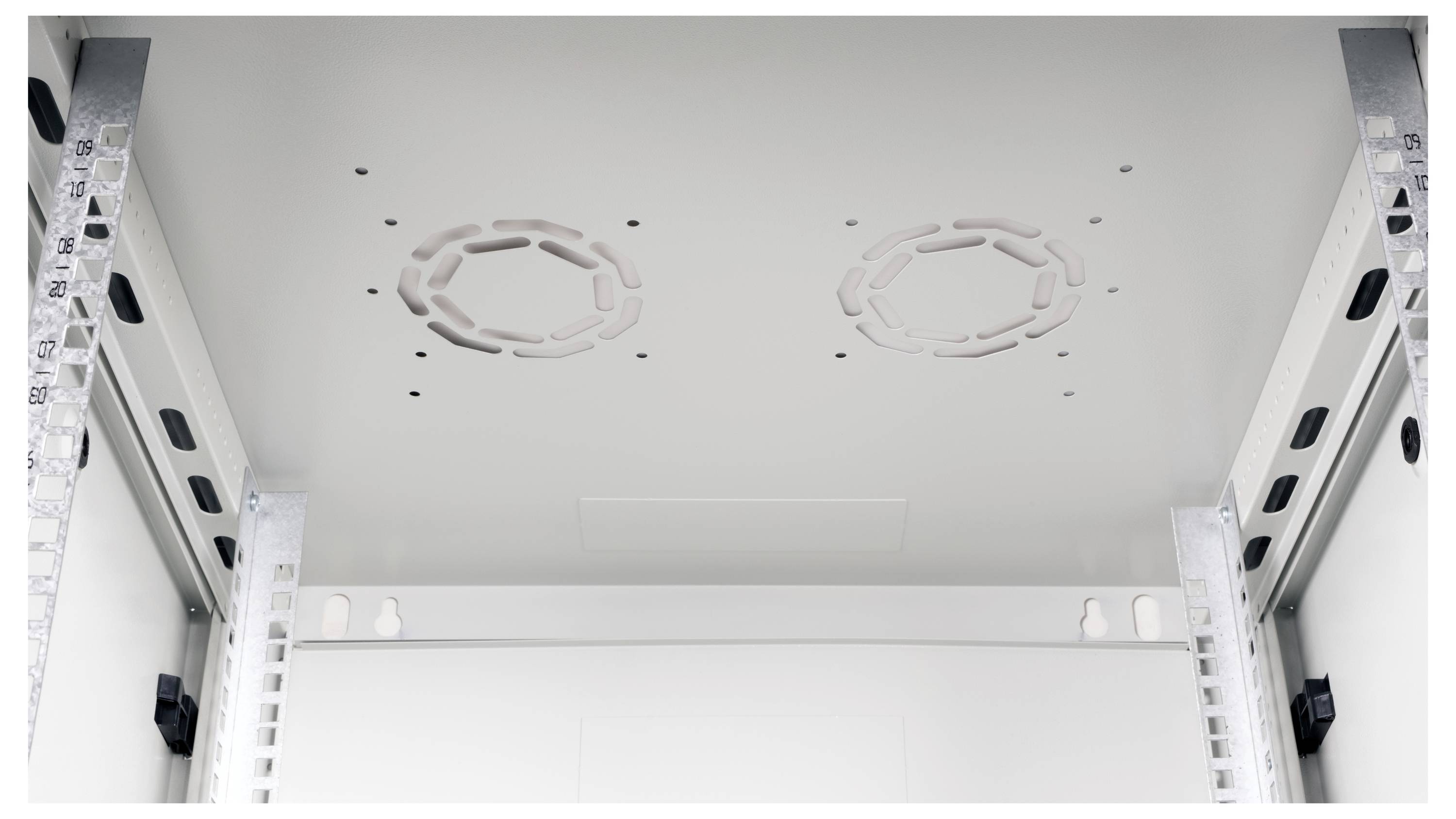

Inside view of an empty server rack with attachment points on the ceiling. The frame and internal rails are visible, ready for equipment installation.

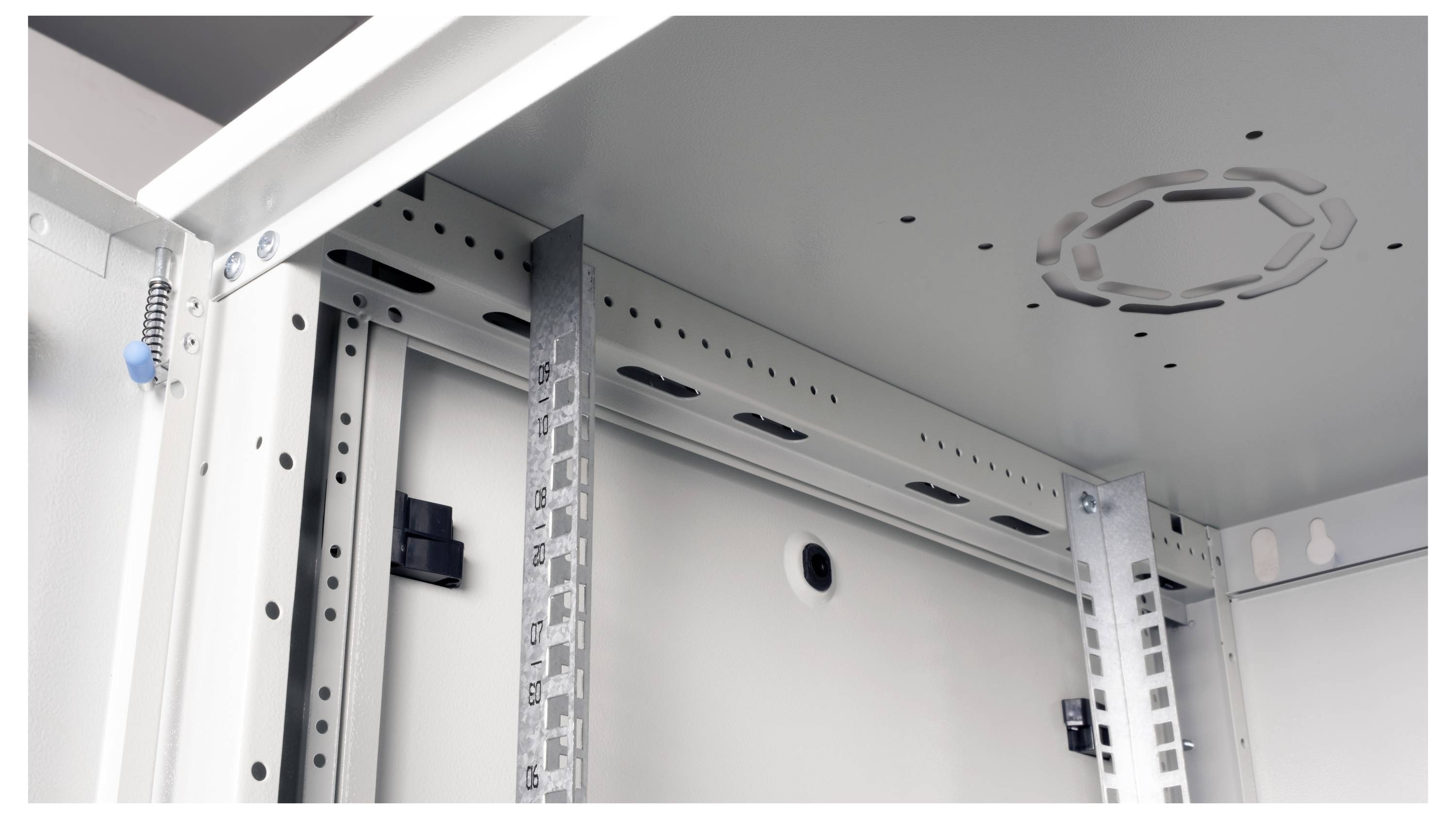

Interior view of an empty metal server rack with adjustable mounting brackets and ventilation holes on the top panel.

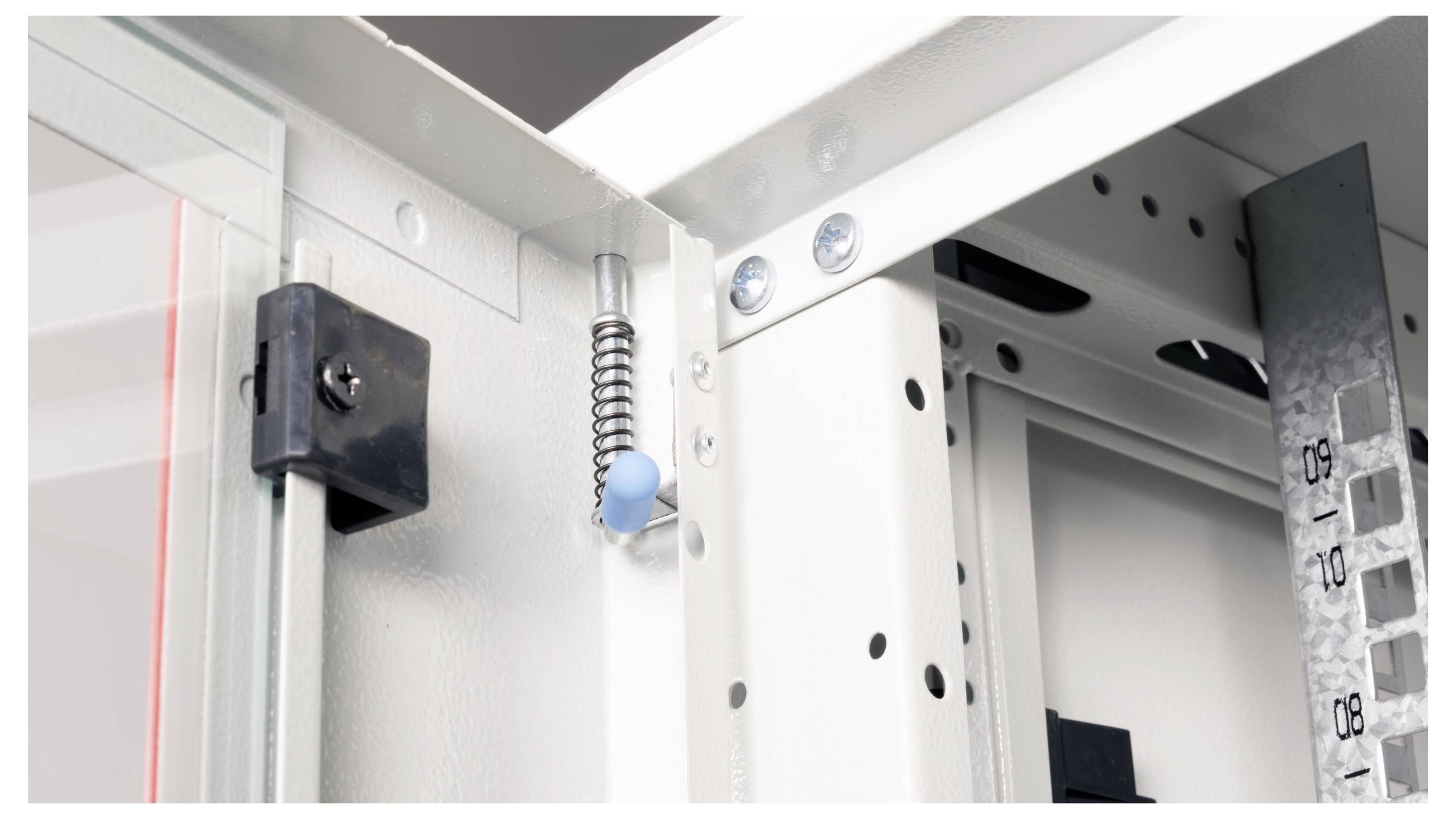

Close-up of a metal cabinet's interior corner, showing a spring-loaded mechanism, part of a locking system, and surrounding rivets.

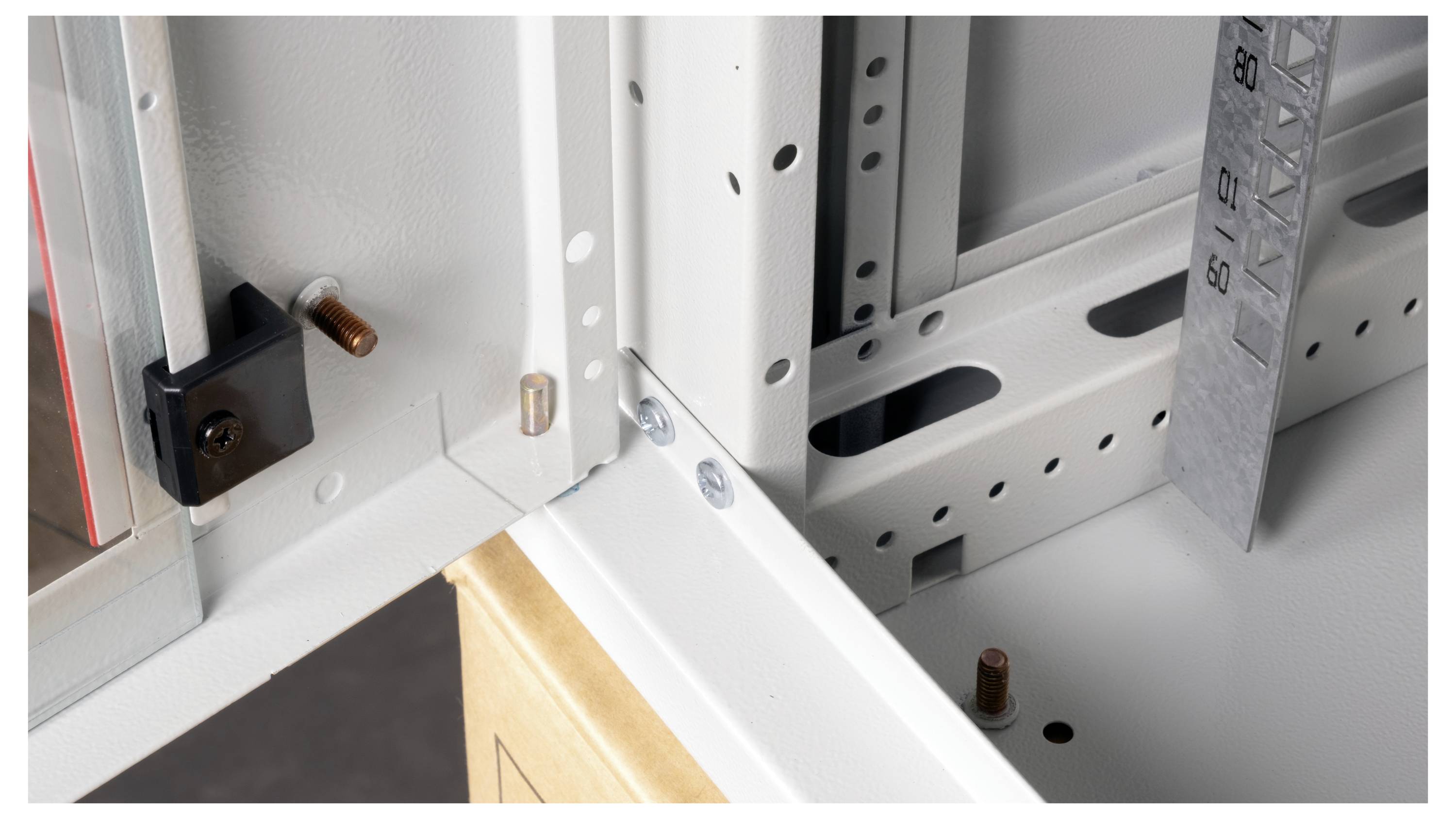

Close-up of a metal framework being measured with a ruler, showing precise alignment and construction details.

Metallic rack mount rail with labeled unit measurements reads '09', '10', '08', '20', indicating installation order in a server rack.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ROLINE 19" wall housing basic plus 9HE

Highlights & Details

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 600 mm

Height: 512 mm

Depth: 600 mm

Dim: (W x H x D) 600 x 512 x 600 mm

Weight: 16350 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Version: Cable

Screen size diagonal (inches): 1 inch

Keyboard layout: German, QWERTZ

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414672 Roline 19" wall cabinet (W x H x D) 600 x 512 x 600 mm 9 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 600 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the intake of a fan module is enabled by a punched area in the roof. Inside two pairs of galvanized profile rails with height units of 483 mm (19 ") are installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.

This text is machine translated.
