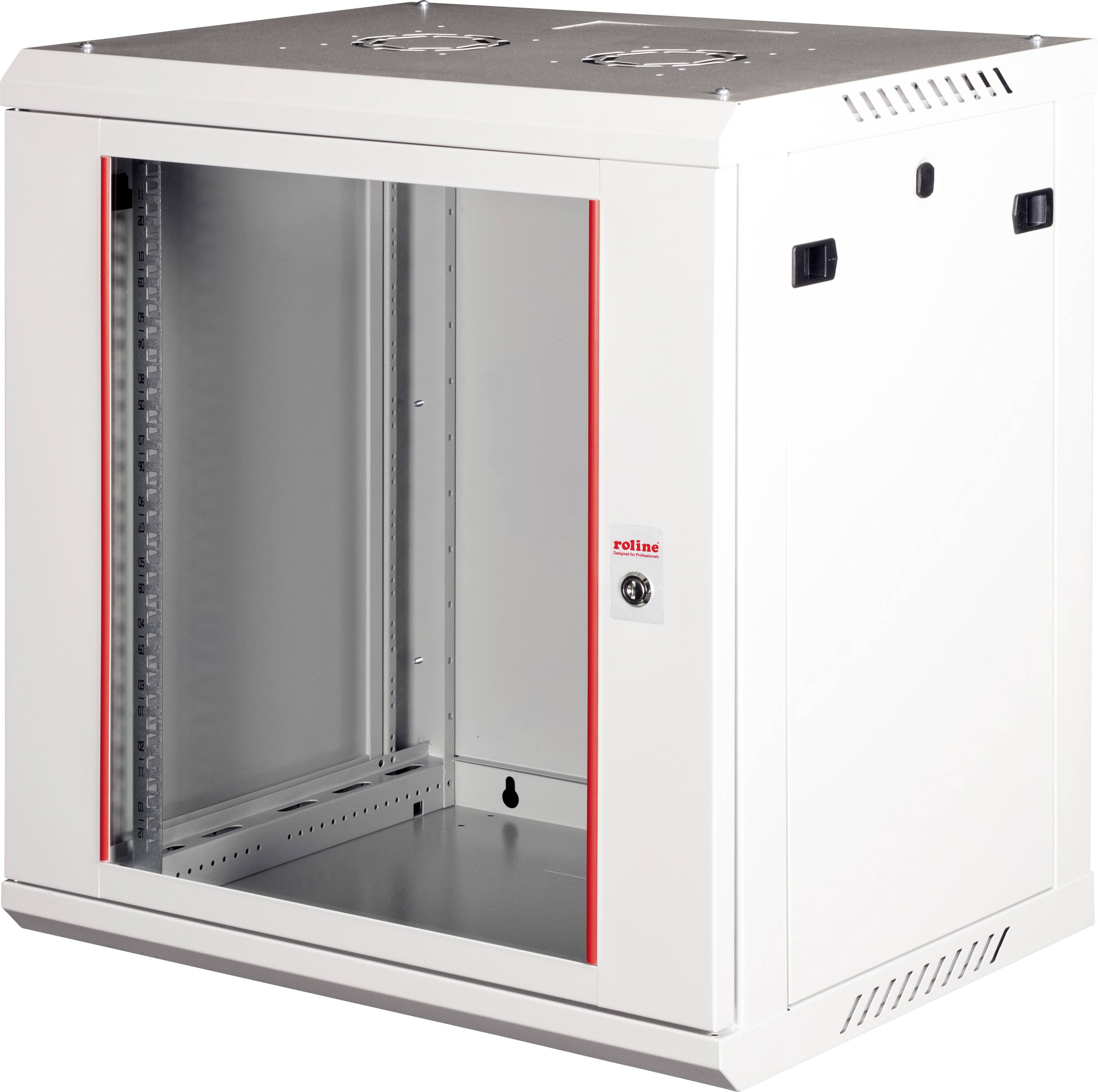

A white metal server rack with a glass door, red trim, and a lockable handle, designed for secure storage of electronic equipment.

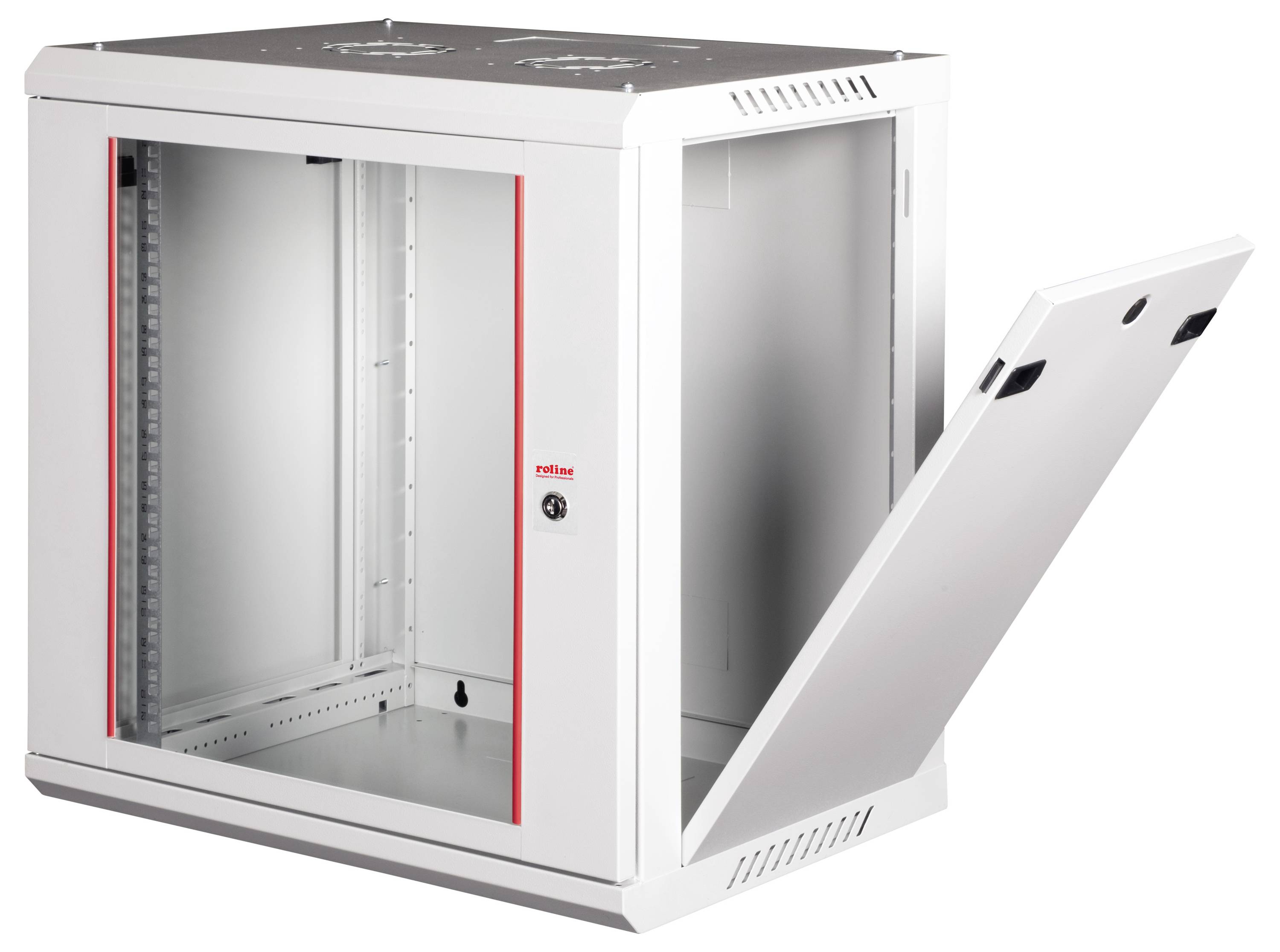

A white metallic server rack with an open side panel, showcasing interior space for electronic equipment, against a plain backdrop.

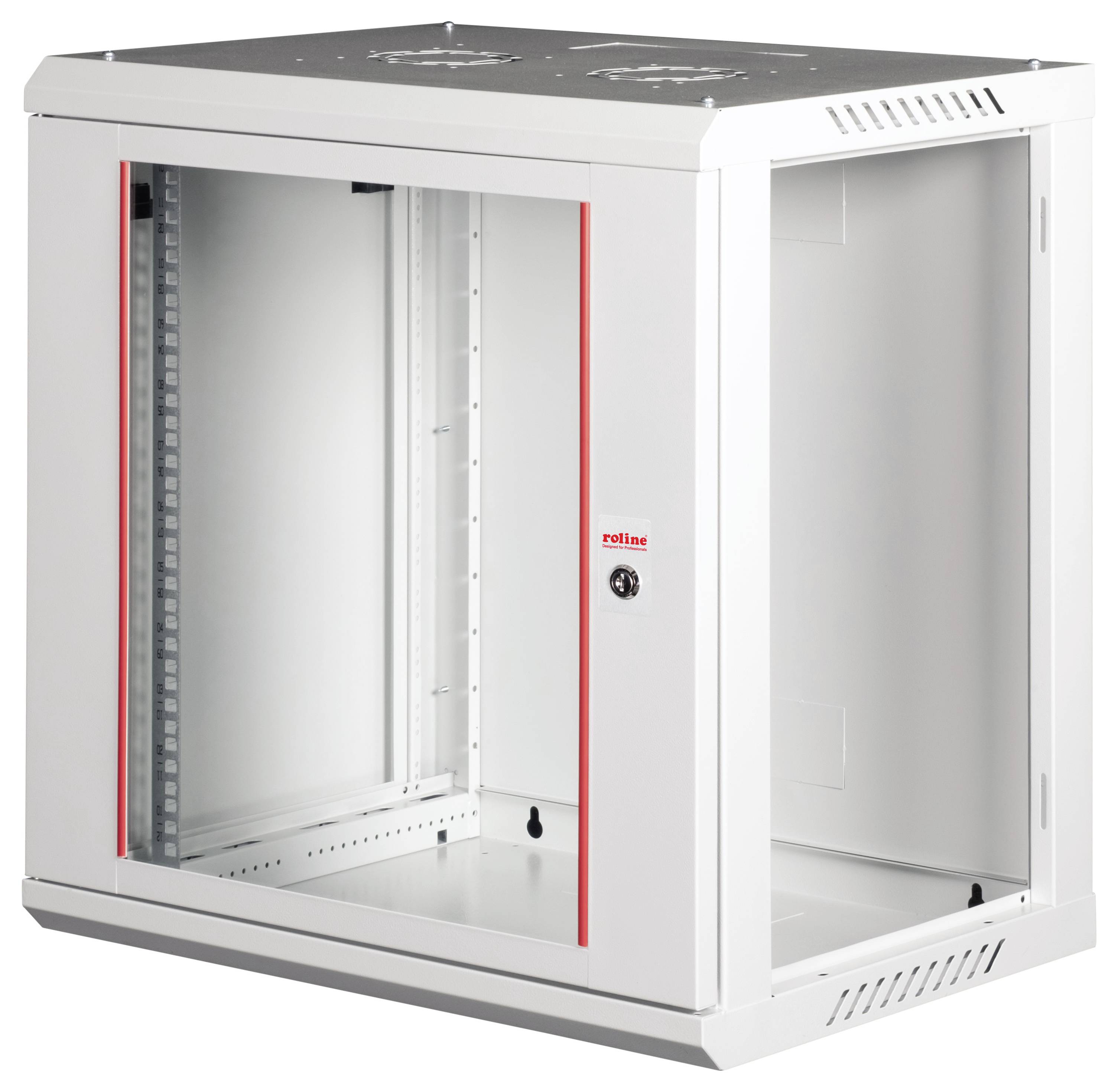

'Empty white server rack with glass door and red line detail, lockable handle on front, and ventilation panels on top, suitable for mounting IT equipment.'

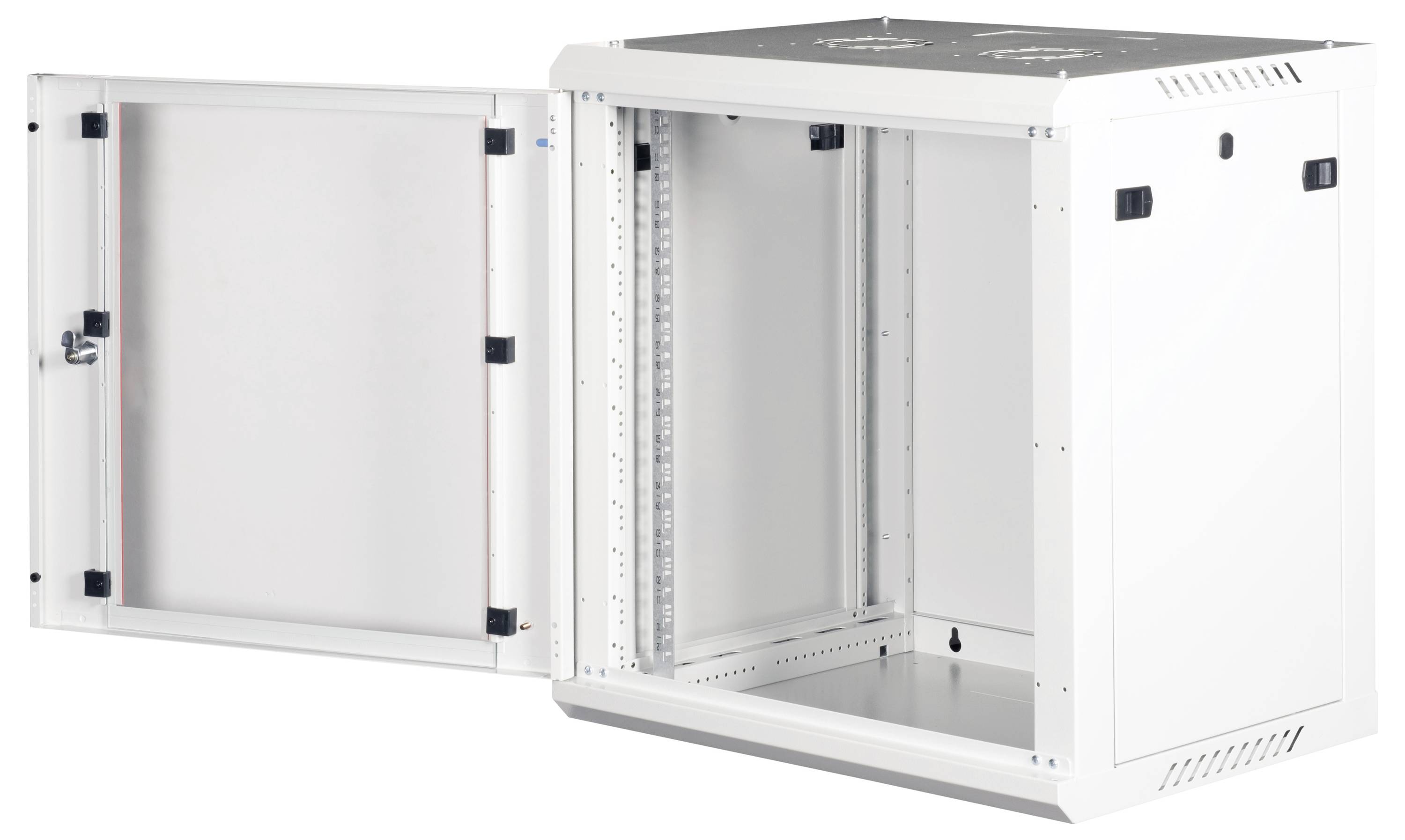

A white, open server rack mount cabinet with a door showing interior space for equipment installation.

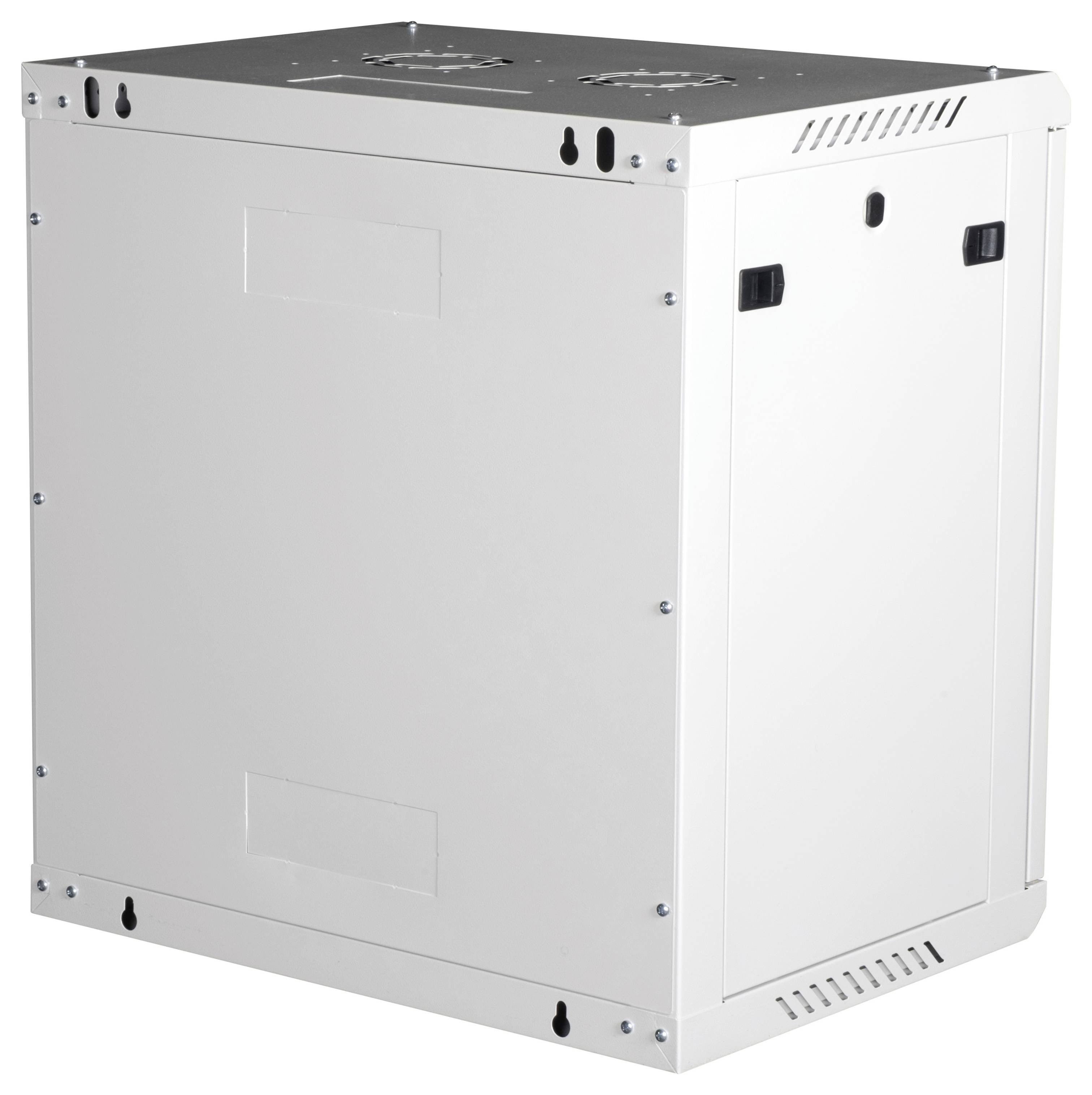

A white metal server cabinet with ventilation holes and locking handles on the sides, designed for housing electronic equipment securely.

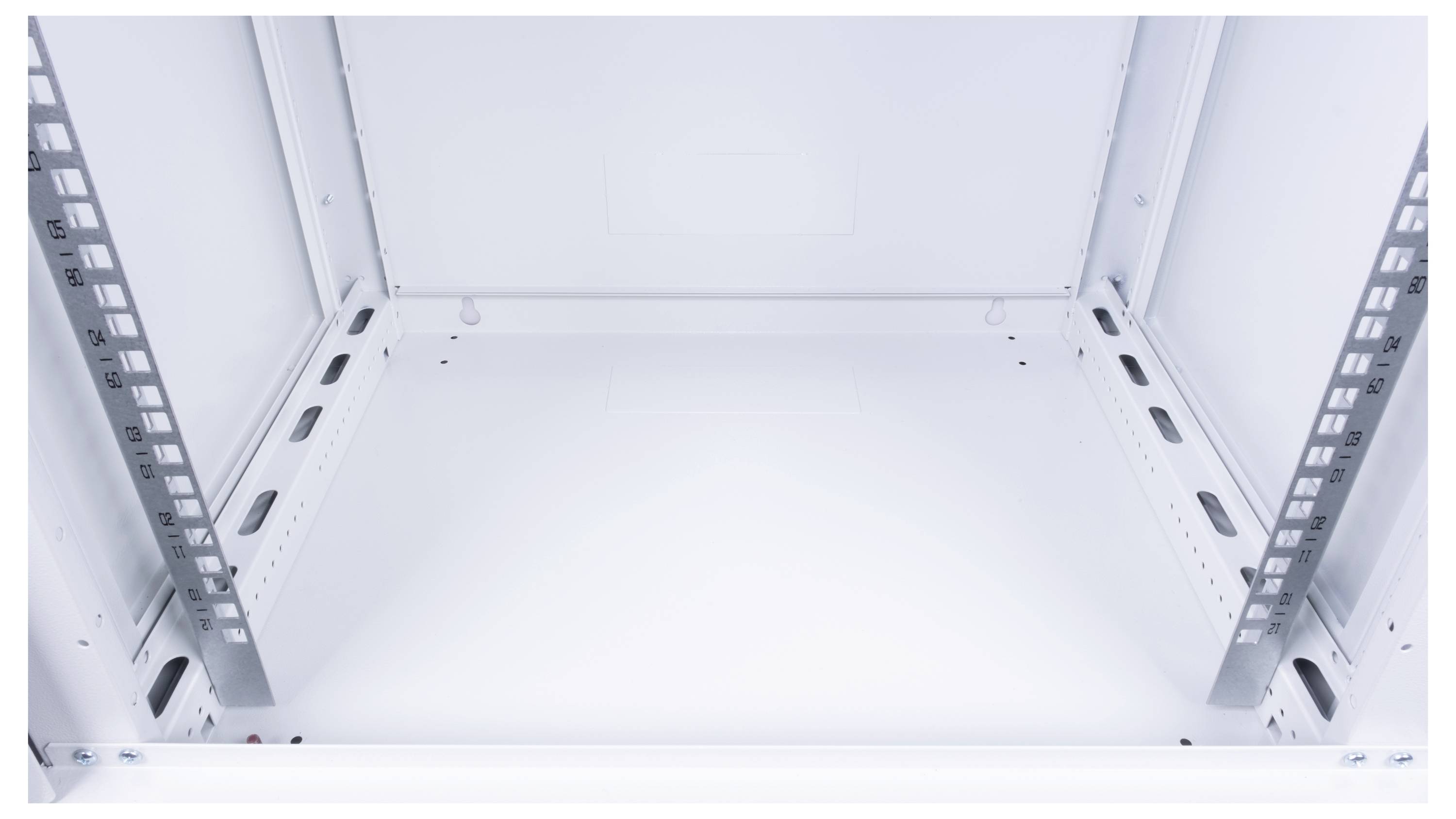

White empty server rack interior with metal rails on the sides, viewed from the front, indicating space for electronic equipment installation.

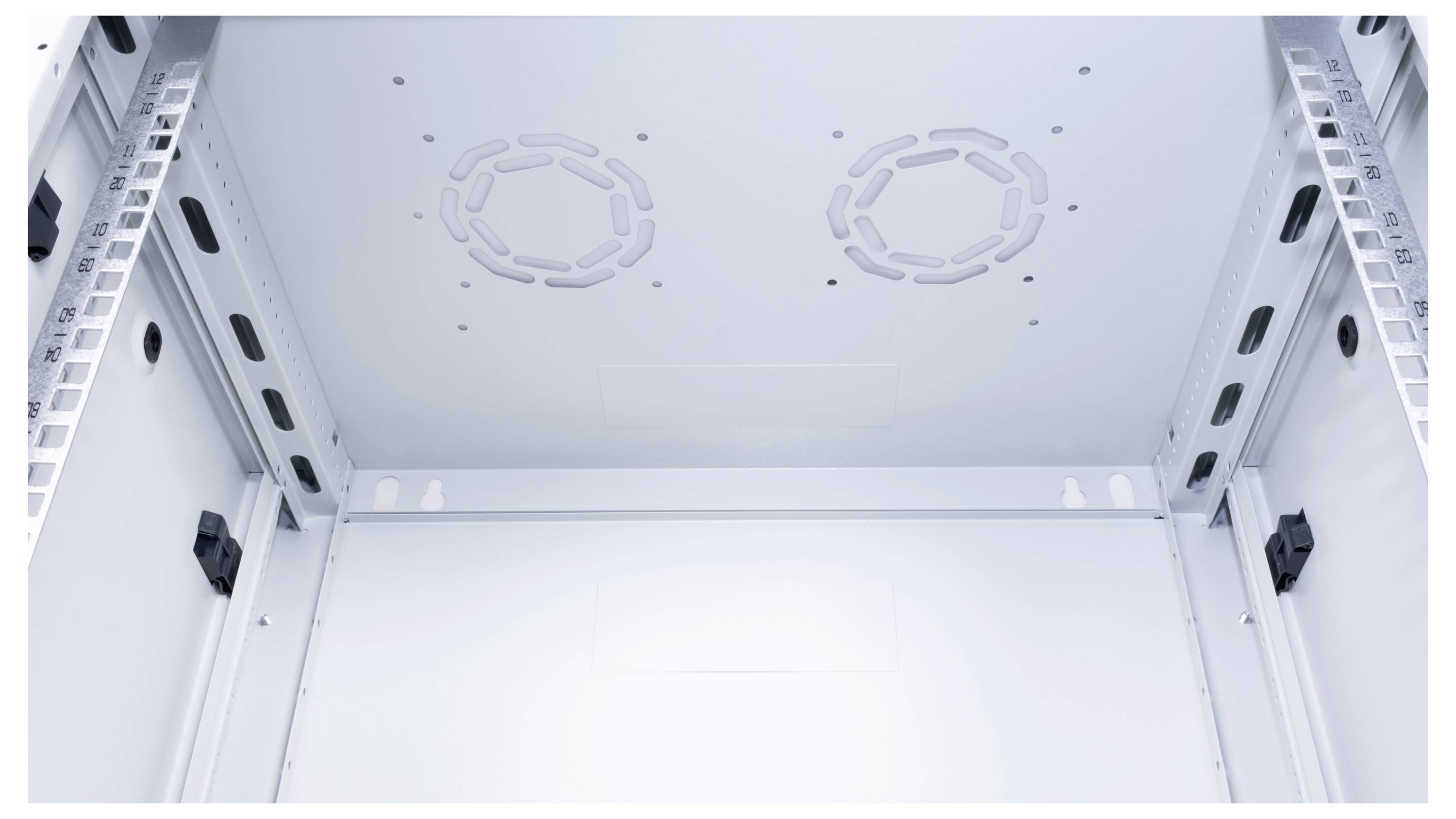

Interior of a white, empty server rack cabinet with ventilation holes on top and cable management rails on the sides.

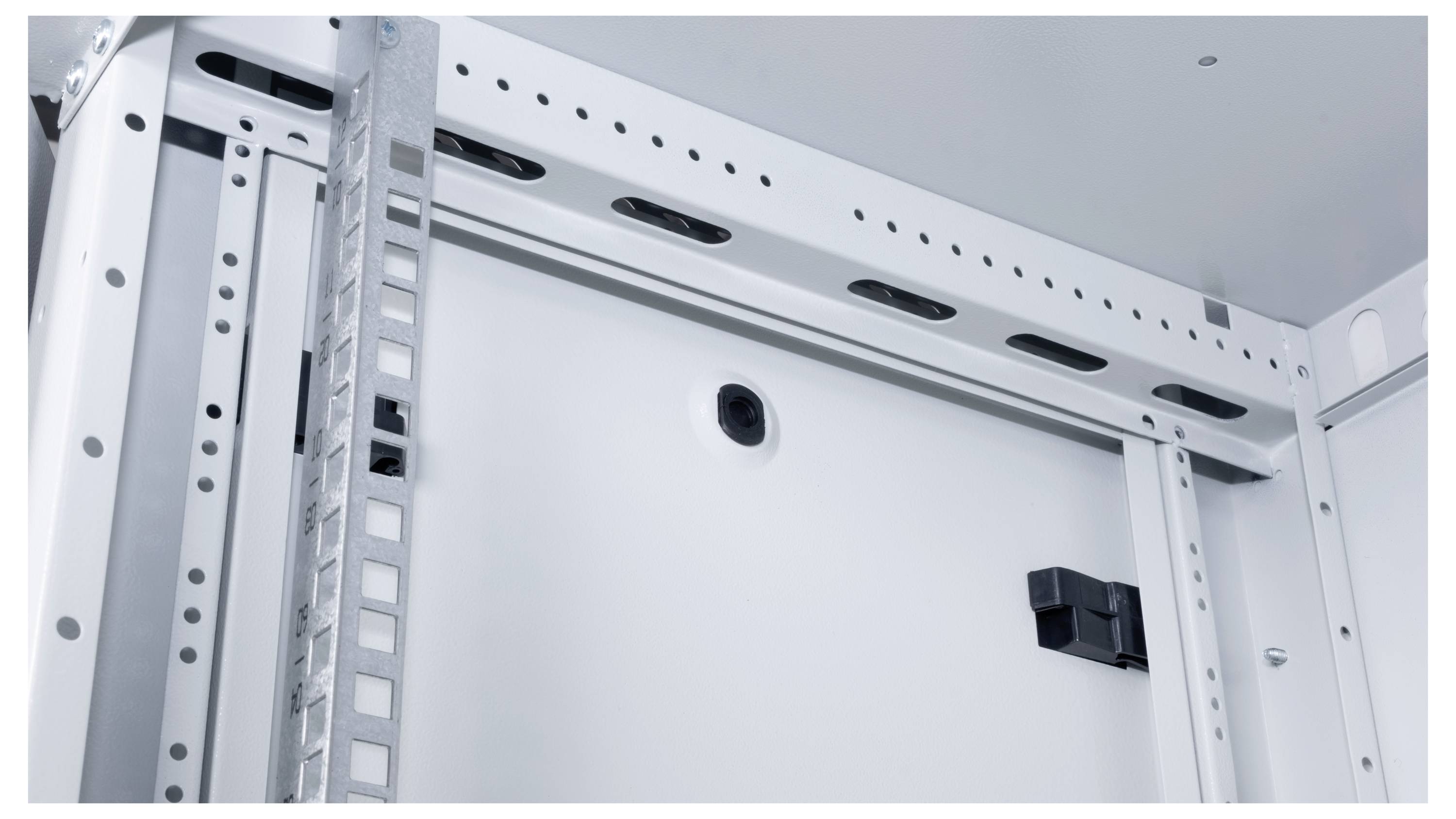

An interior view of a white metal cabinet showing mounting brackets and a latch system on the right side, illustrating industrial design.

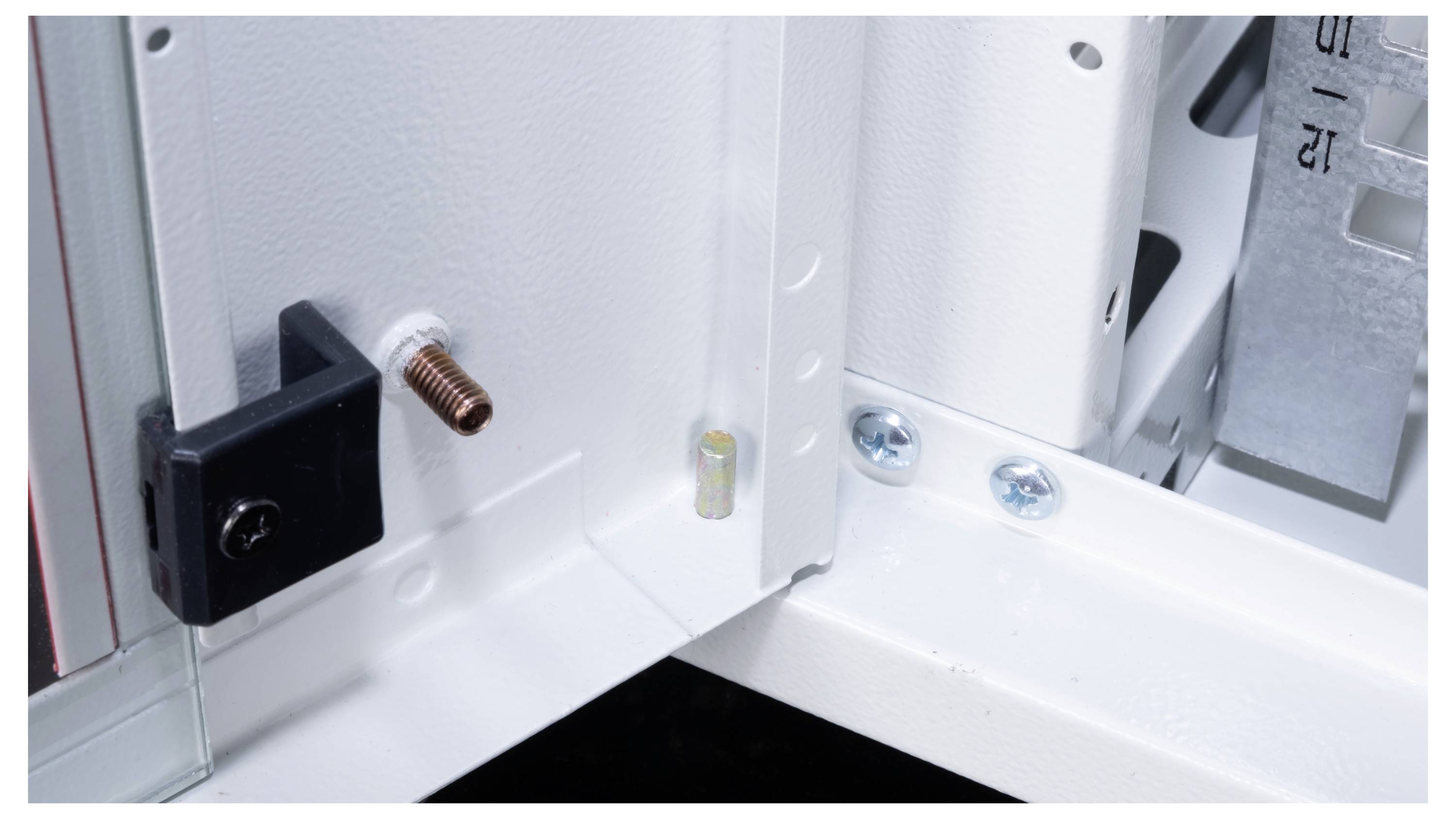

Close-up of a metal cabinet's interior showing a screw, bracket, and panel with circuit breaker labels.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

ROLINE 19" wall housing basic plus 12HE

Highlights & Details

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 600 mm

Height: 645 mm

Depth: 450 mm

Material: Steel

Dim: (W x H x D) 600 x 645 x 450 mm

Weight: 15600 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Cable length: 0 cm

Version: Cable

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414662 Roline 19" wall cabinet (W x H x D) 600 x 645 x 450 mm 12 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 450 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the acquisition of a fan module is made possible by a punched area in the roof. Inside a pair of galvanized profile rails with height units of 483 mm (19 ") is installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.

This text is machine translated.
