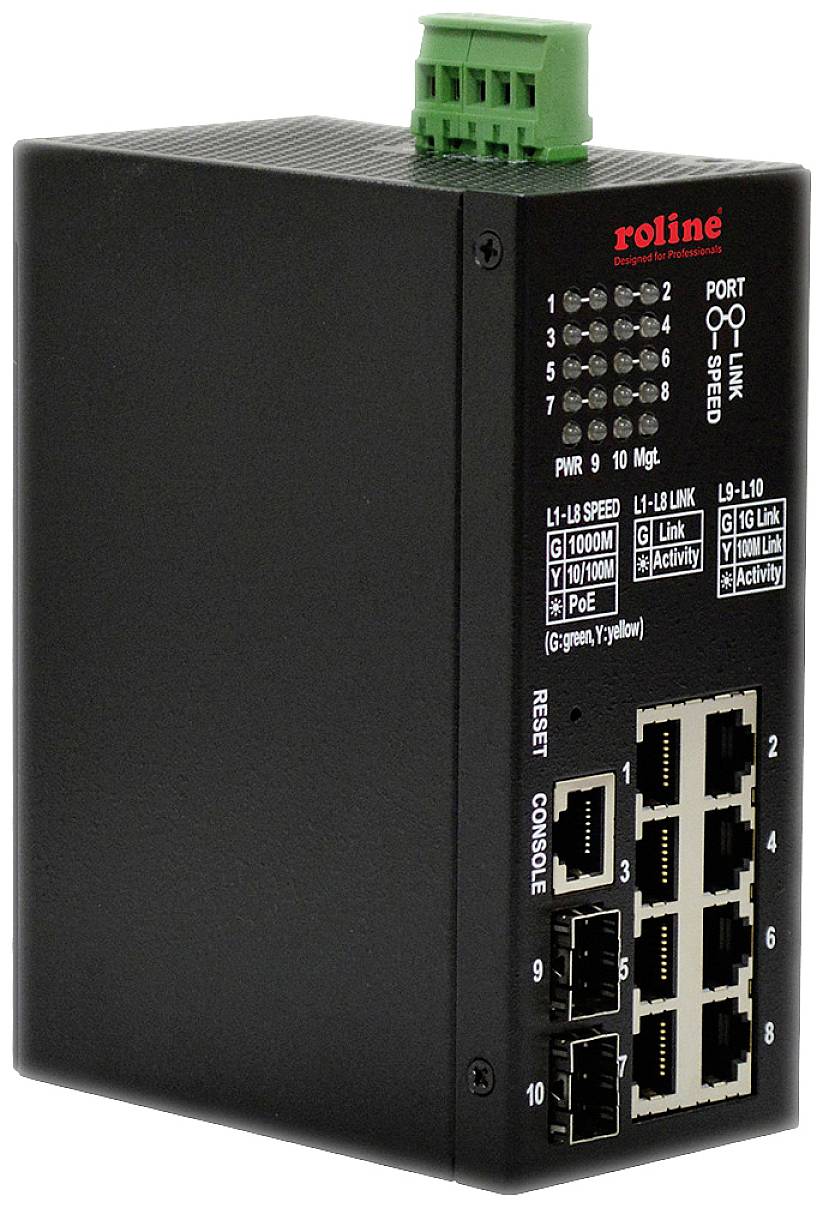

Roline 21.13.1137 Network switch 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
ROLINE Industrial Gigabit Switch, 10 ports (8x RJ45 + 2x SFP), PoE+, smart management
Technical specifications
- Max. Power output PoE 113 W.
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Ethernet ports
10
- PoE ports
8
- SFP ports
2 x
- 10/100/1000 Mbps ports
8 x
- Router features
PoE
- Weight
878.9 g
- Width
106 mm
- Height
60 mm
- Depth
140 mm
- Type
21.13.1137
- Interfaces
SFP
RJ45
- Factory colour
Black
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557345 Roline 21.13.1137 Network switch 10 / 100 / 1000 MBit/s PoE
Description
The Gigabit Ethernet switch is designed for industrial use. Thanks to Gigabit ports for more bandwidth, overvoltage protection, extended Layer 2 functions and a range of security and management tools, the switch is perfectly suitable for industrial use. Eight ports with 10/100/1000Mbit/s copper 2x 100/1000 Mbit/s SFP (dual speed) ports and 1x RJ45 console port Supports all RJ45 ports PoE according to IEEE 802.3af and IEEE 802.3at standard, PoE Budget 90W Auto-negotiation / Auto-MDI/MDI-X detection supports IGMP Snooping, QoS, Web VLANs / SNMP / Telnet management supports 802.3x flow control (full duplex) and Back-Pressure (half duplex) LED-display unit: Power/management status, per port: Speed/Link/Activity DIN rail mounting corresponds to the standards IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3at, 802.1x, 802.1w, 802.1D, 802.1Q power supply (via terminal block): +12 to +30 V DC (not included) Power 14W max. @24V (full load without PoE output) Power 113W max. @24V (with full PoE output) Metal housing (fanless) as suitable power supply we recommend the rail power supply NDR-120-24 (21.13.1313).
