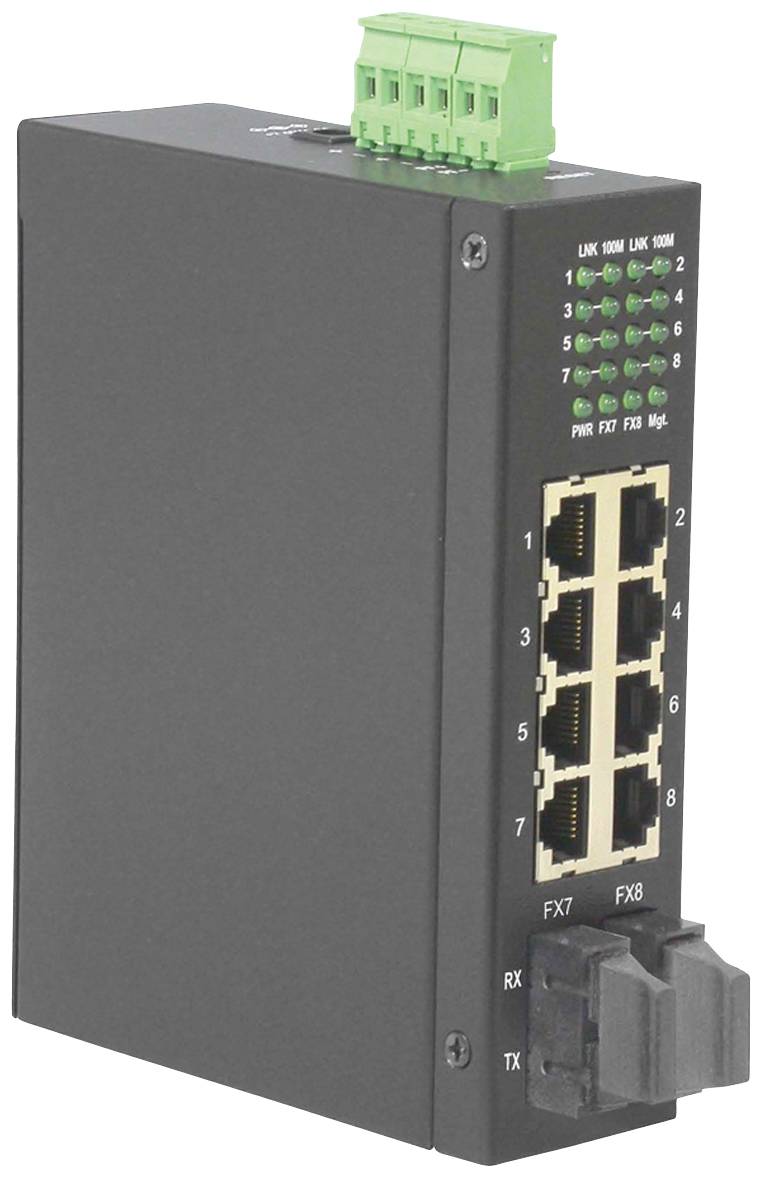

Roline 21.13.1154 Network switch 10 / 100 MBit/s
EAN:
Part number:
Item no:
Technical specifications
- Design: DIN rail
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- 10/100 Mbps ports
6 x
- Fibre-optic ports
2
- Power supply (LOV)
Power over Ethernet (PoE)
- Weight
555.1 g
- Width
40 mm
- Height
106 mm
- Depth
140 mm
- Type
21.13.1154
- Interfaces
RJ45
- Factory colour
Black
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-2 °C
- Cable design
Round
- Version
Cable
- Length
150 cm
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558696 Roline 21.13.1154 Network switch 10 / 100 MBit/s
Description
Network switch for use in industrial environments Fast Ethernet switch with 8 ports - 6x 10/100Base-T and 2x 100Base-FX multimode for use in industrial environments DIN rail mounting Operating voltage: +7 to +30VDC; 6.5W (max.) Operating temperature range: - 20 °C - +70 °C Input DC via terminal block or DC hollow plug (6.3 mm/2.0mm) as suitable power supply, we recommend the DIN rail power supply NDR-75-24 (21.13.1311)
