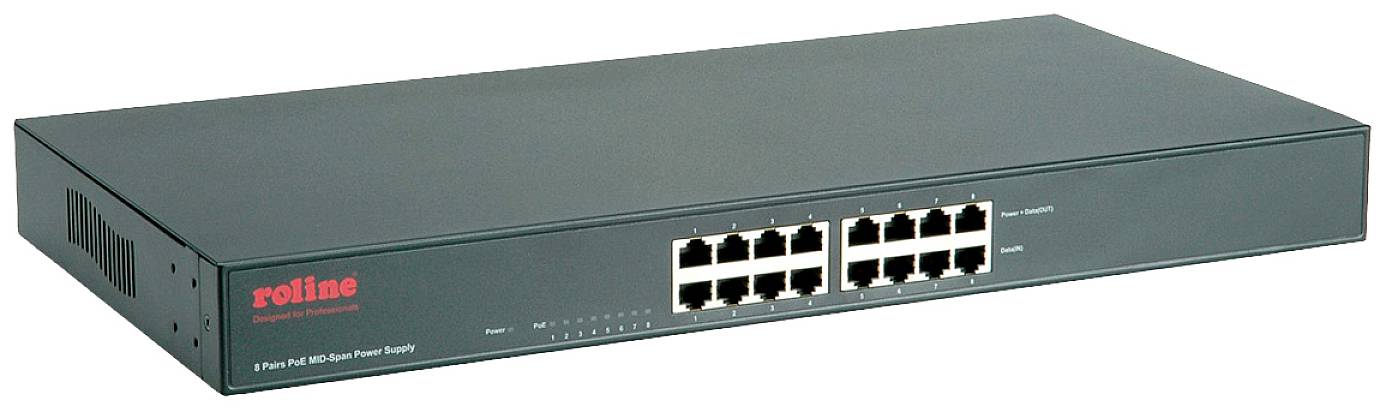

Roline 21.13.1181 Network switch 10 / 100 MBit/s PoE
EAN:
Part number:
Item no:
ROLINE 19" PoE MID-Chip power supply, 8 mid-spanports
Technical specifications
- Design: RackMax. Output Power PoE 110W
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Ethernet ports
8
- IEEE 802.3af PoE
8
- 10/100 Mbps ports
8 x
- Router features
PoE
- Weight
2.7 kg
- Width
440 mm
- Height
44 mm
- Depth
220 mm
- Type
21.13.1181
- Rack size
483 mm (19")
- Interfaces
RJ45
- Factory colour
Black
- Operating voltage
48 V DC
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558263 Roline 21.13.1181 Network switch 10 / 100 MBit/s PoE
Description
8-way injector, which feeds IEEE 802.3af power over Ethernet (PoE) into a compatible network. For supplying PoE devices such as workgroup switches, network cameras, access points, IP phones with data and power via existing LAN cable. Data-in ports: 8x 10/100BaseTX, Data+Power-out ports: 8x 10/100BaseTX Standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x flow control, IEEE 802.3af PoE output power: 48 VDC / 15.4 W per port PoE-enabled ports: Port 1-8 up to 15.4 W per port PoE capacity: 110 W Max. Power consumption (without PoE): 122 W (12 W) Status LEDs Metal housing, 19" rack-mountable (rack-mount kit included) Active cooling via built-in fan Internal power supply Delivery includes: Switch, connection cable, rack-mount kit, manual
