Roline 21.14.3524 Network switch 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:

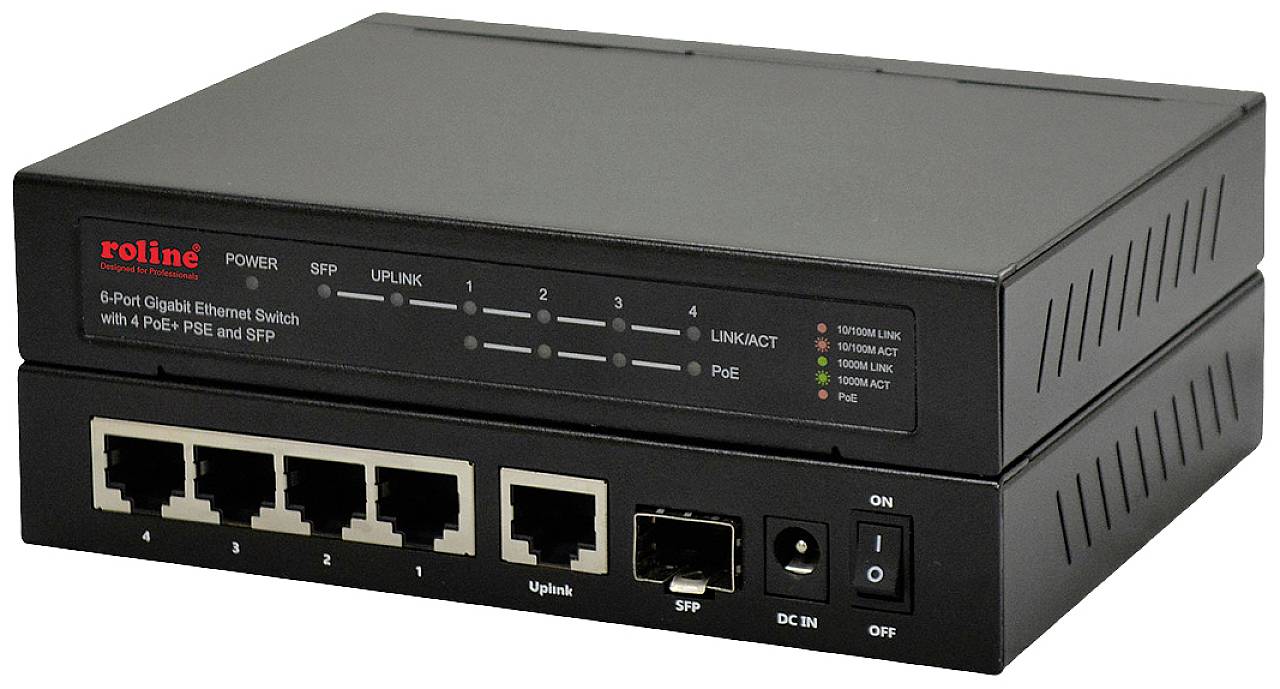

ROLINE Gigabit Ethernet Switch 6 Ports (5x 10/100/1000 + 1x SFP, 4x PoE+)
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Ethernet ports
6
- PoE ports
4
- 10/100/1000 Mbps ports
5 x
- Fibre-optic ports
1
- Router features
PoE
- Power supply (LOV)
Power over Ethernet (PoE)
- Weight
1.137
- Width
106 mm
- Height
147 mm
- Depth
28 mm
- Type
21.14.3524
- Interfaces
RJ45
- Factory colour
Black
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558808 Roline 21.14.3524 Network switch 10 / 100 / 1000 MBit/s PoE
Description
This switch allows high-speed networking with Gigabit Ethernet with a total of 6 ports. Five 10/100/1000Mbit/s ports, each with auto-negotiation 1x MiniGBIC (SFP) slot shielded RJ-45 ports, automatic MDI/MDI-X detection on all ports Full-duplex mode for 1000Mbit/s 4x PoE ports (IEEE 802.3at) supports Jumbo Frames Store-and-Forward Switching with 128 kB data buffer and 2K MAC addresses supports flow control according to IEEE 802.3x (with full-duplex mode) Status LEDs Black Fanless metal housing Power supply via external power supply (54VDC, 1.6A) Dimensions (WxDxH): 147 x 106 x 28 mm
