Roline 21.14.3530 Network switch 10 / 100 / 1000 MBit/s USB power supply
EAN:
Part number:
Item no:

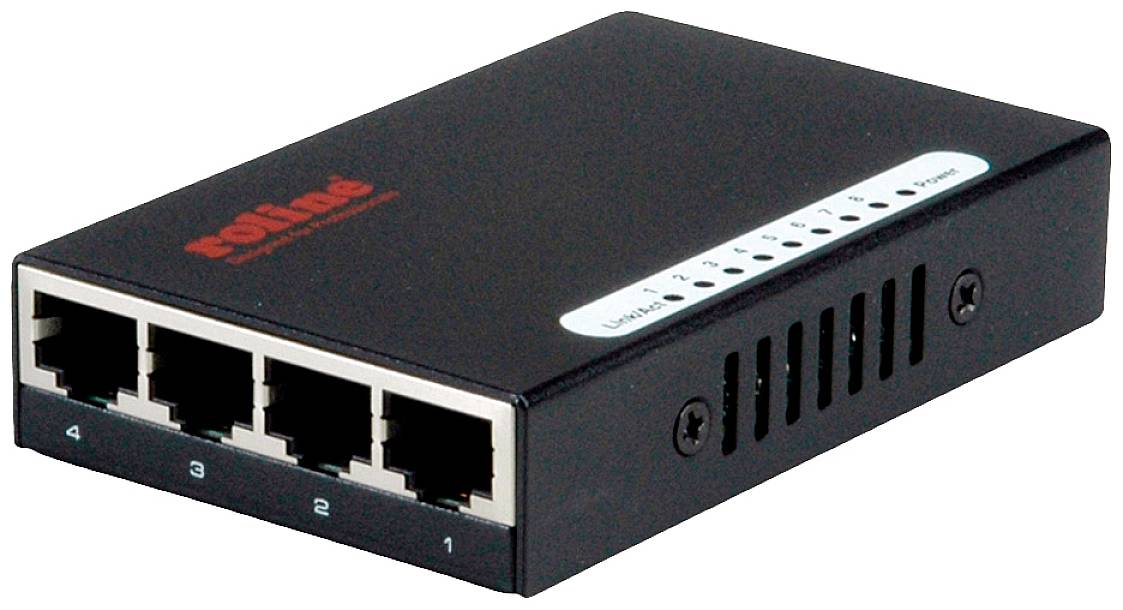

ROLINE Gigabit Ethernet Switch, Pocket, 8 ports
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Ethernet ports
8
- No. of 100 Mbps/1Gbps/10Gbps ports
8 x
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Auto-uplink at each port
Yes
- Router features
USB power supply
- Power supply (LOV)
Power over Ethernet (PoE)
- Weight
0.2 kg
- Width
62 mm
- Height
94 mm
- Depth
21 mm
- Type
21.14.3530
- Interfaces
RJ45
- Factory colour
Black
- Operating voltage
5 V DC
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557864 Roline 21.14.3530 Network switch 10 / 100 / 1000 MBit/s USB power supply
Description
8 Port Gigabit LAN switch in practical, handy pocket-sized pocket of the ROLINE 8 Port Pocket Gigabit Ethernet Switch can be network center for small, fast LANs. Eight 10/100/1000Mbit/s ports, each with auto-negotiation shielded RJ-45 ports Automatic MDI / MDI-X detection on all ports Full-duplex mode for 1000Mbit/s stores 8K MAC addresses Store-and-forward switching with 430KB data buffer supports flow control according to IEEE 802.3x (in full-duplex mode) Space-saving, black metal housing Power supply : 5VDC 1.2A or via USB connection Dimensions (BxTxH): 94 × 62 × 21 mm
