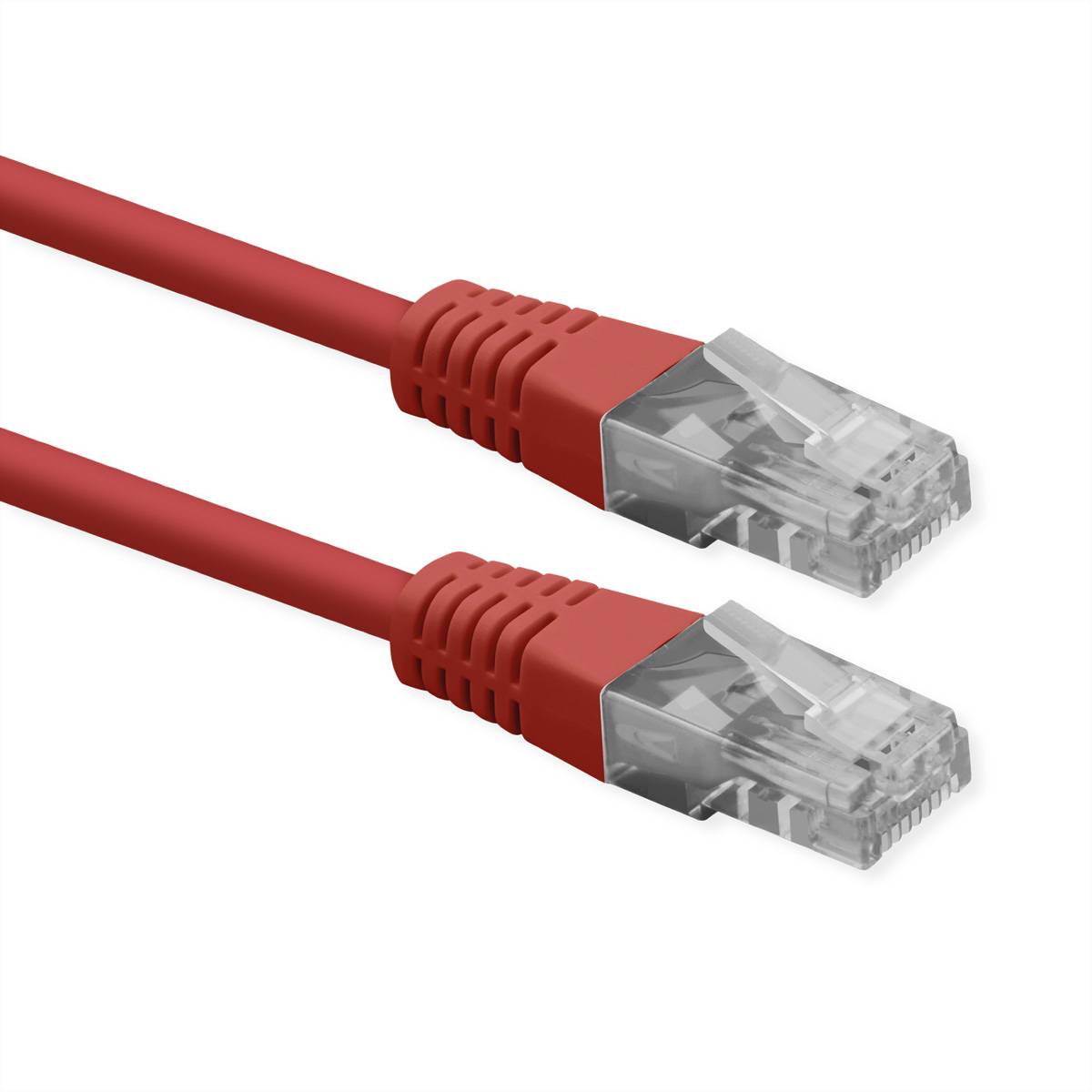

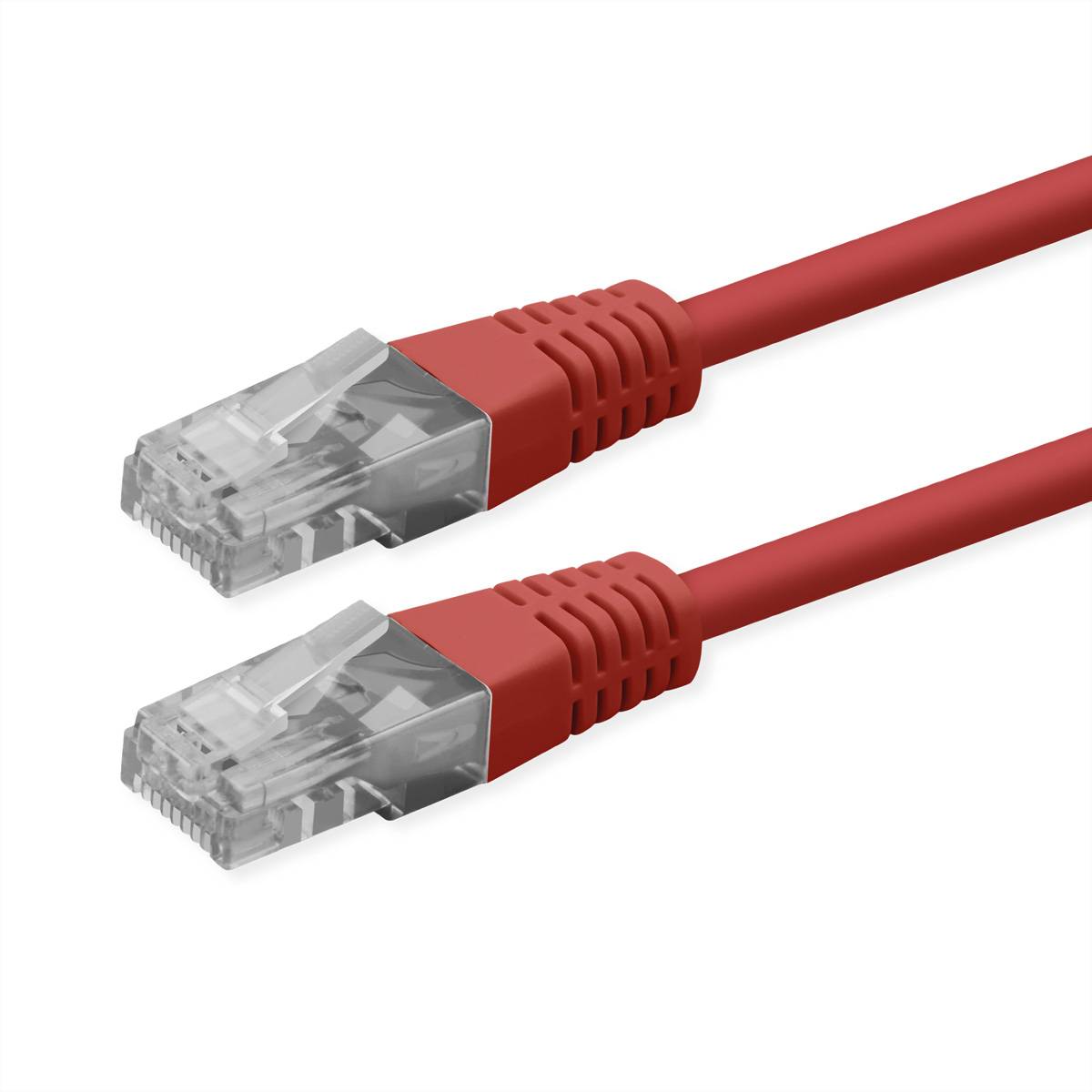

Roline 21.51.1521 RJ45 Patch cable CAT 6 U/UTP 0.50 m Red (clear) Unshielded 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6
Shielding
U/UTP
Connection type
RJ45
Cable length
0.50 m
Datasheet (PDF)
Highlights & Details
Category 6 unshielded U/UTP patch cable with RJ45 connectors at both ends. Suitable as patch cable in patch panels or...
- Wires made of pure copper (AWG 24)
- Suitable for POE+ (Power over Ethernet)
- For use in Gigabit Ethernet networks
- Sturdy thanks to sprayed anti-kink device
- Contact assignment: 1:1 in accordance with EIA/TIA568, 8 leads
Technical specifications
- Product group: Twisted pair cable
- Product type U/UTP patch cable
- Colour: Red
- Length: 0.5 m
- Shielding type U/UTP
- Transmission quality Cat6/Class E
- Impedance 100 Ohm
- Number of wires 8
- Wire cross-section (AWG) AWG 24
- Power over Ethernet (PoE): Yes
- Copper core.
- Wire type: Stranded conductor
- Crossed: No.
- Bending radius 34.8 mm
- Lever protection: No.
- Kink protection sleeve: Splashed
- Colour (grommet): Red
- Outer Ø cable 5.8 mm +/- 0.2 mm
- LSOH cable: No
- Material outer sheath cable: PVC
- Page 1 Type of connector: RJ-45
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: RJ-45
- Page 2 Type of connection: Male (plug)
- Connector type RJ45: Standard
- Min. Operating temperature -10 °C
- Max. operating temperature: 60 °C
- Min. Storage temperature: -20 °C
- Storage temperature max. 75 °C.
- Weight: 23 g
- Packaging height 10 mm
- Package width 50 mm
- Packaging depth 50 mm
- Package weight: 0.03 kg
- Gross weight: 0.03
- Product type
Patch cable
CAT 6
U/UTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
0.50 m
- Factory colour
Red (clear)
- Connector version
straight
- Cable features
Unshielded
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Halogen-free
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3799091 Roline 21.51.1521 RJ45 Patch cable CAT 6 U/UTP 0.50 m Red (clear) Unshielded 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3799091 Roline 21.51.1521 RJ45 Patch cable CAT 6 U/UTP 0.50 m Red (clear) Unshielded 1 pc(s)
Description
Category 6 unshielded U/UTP patch cable with RJ45 connectors at both ends. Suitable as patch cable in patch panels or as device connection cable in Gigabit Ethernet networks. Pure copper AWG24 wires ensure reliable data transfer across the LAN and support Power over Ethernet. Pre-assembled unshielded twisted-pair cable with RJ-45 connectors at both ends. For use in Gigabit Ethernet networks. Suitable for POE+ (Power over Ethernet) Wires made of pure copper (AWG 24). Sturdy thanks to sprayed anti-kink device. Contact assignment: 1:1 in accordance with EIA/TIA568, 8 leads. Setup: 8 wires, strands. High-quality plugs with gold-plated contacts
This text is machine translated.
Scope of delivery
- Patch cable
