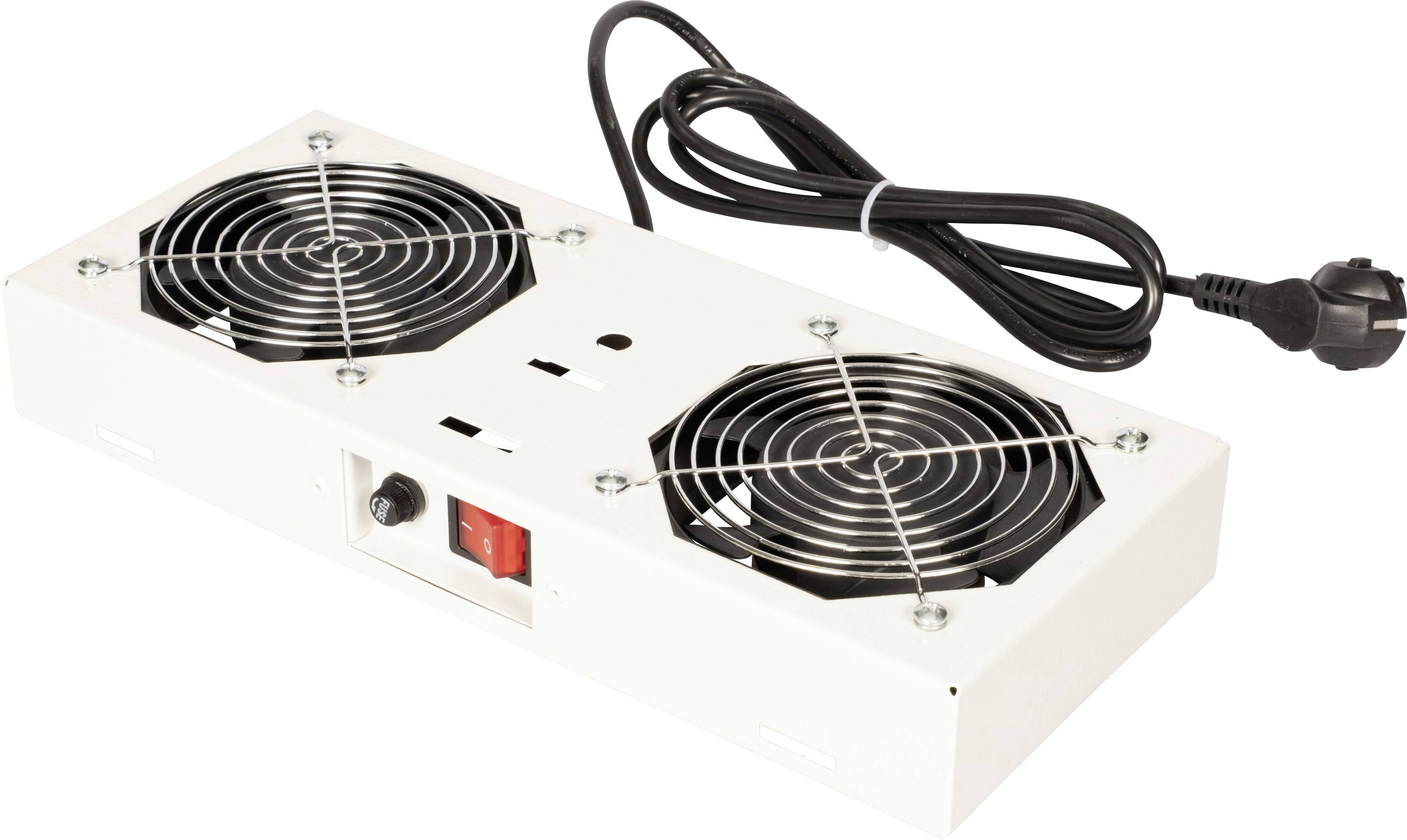

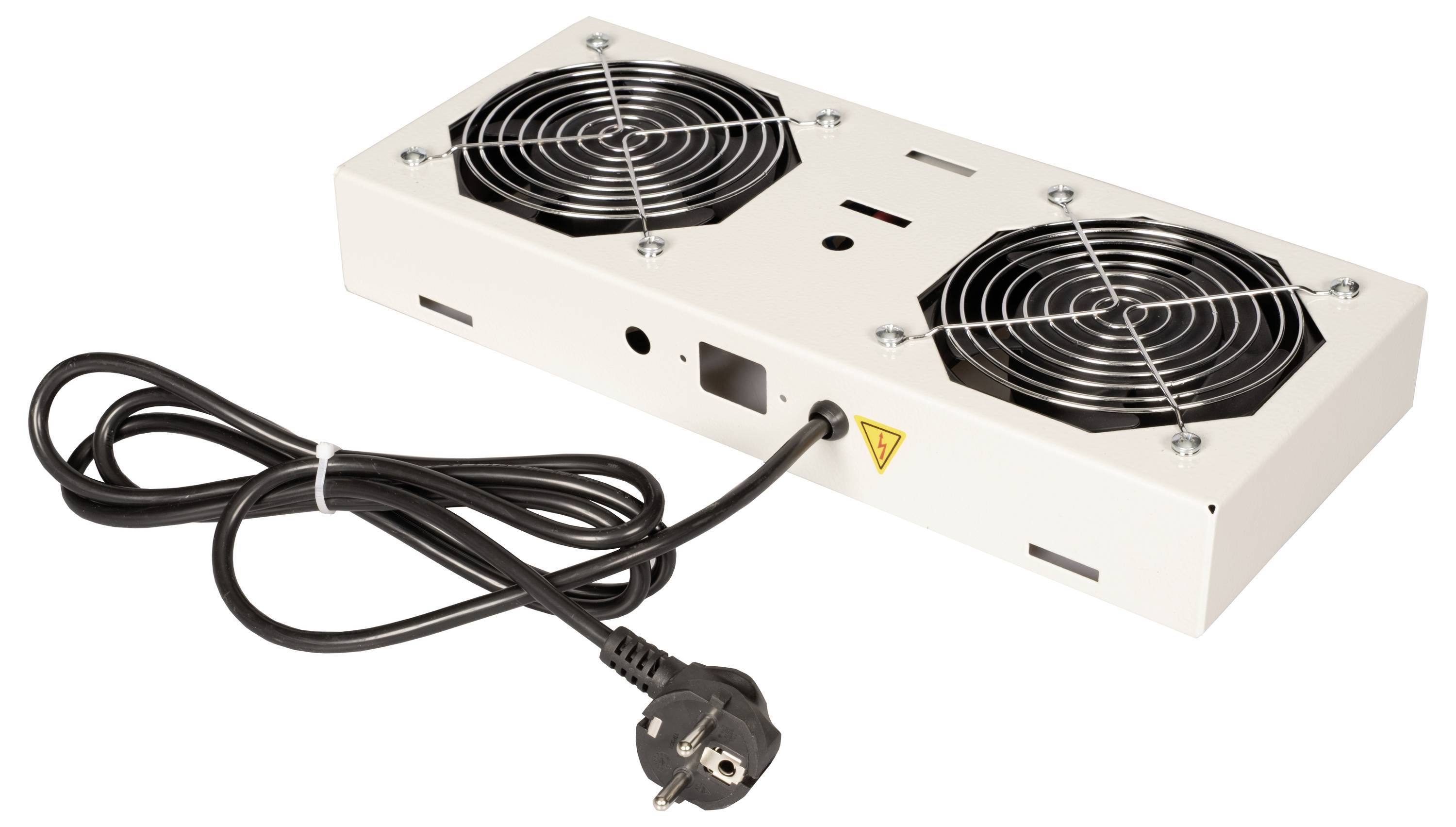

Roline 26.21.0294 19 inch 2 x Server rack fan 1 U with switch Grey
EAN:
Part number:
Item no:
Highlights & Details
Roline fan unit 2 fans
- Earth-contact plug, type E/F
Technical specifications
- Product type
Server rack fan
- Features
with switch
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Voltage (max.)
230 V
- Dim
(W x H x D) 385 x 87 x 205 mm
- Amperage
0.14
- No. of fans
2 x
- Content
1 pc(s)
- Factory colour
Grey
- Width
385 mm
- Height
87 mm
- Depth
205 mm
- Rack size
483 mm (19")
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3414680 Roline 26.21.0294 19 inch 2 x Server rack fan 1 U with switch Grey
Description
Fan unit for wall casing ROLINE Pro, Basic and Basic Plus series.The ROLINE 19-inch fan units are compatible with all wall housings of the ROLINE Pro and Basic series as well as with all wall housings of the Basic Plus series. They can be installed quickly and easily in the roof module. An additional ON/OFF switch offers additional applications. The model is available in the standard colors gray (RAL 7035) and black (RAL 9005) and is equipped optionally with one or two integrated fans.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Fan unit
- Fasteners
