Roline Converter [1x RS232 socket - 1x Screw terminals]
EAN:
Part number:
Item no:

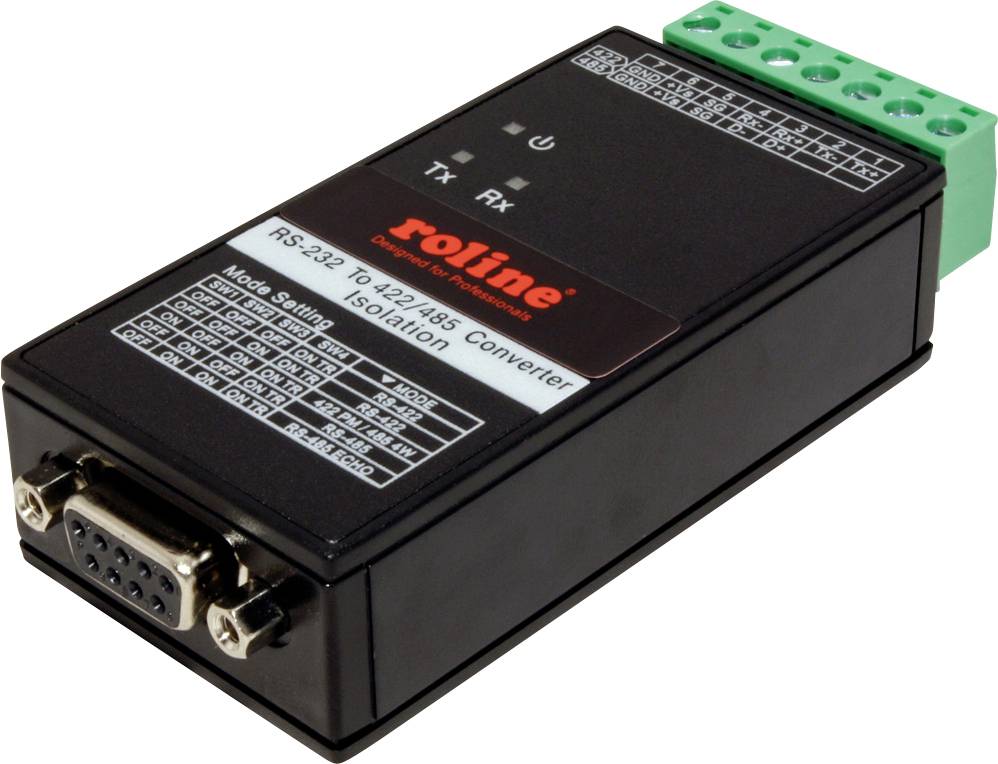

ROLINE RS232 to RS422/485 converter for DIN rail
Technical specifications
- Product type
Converter
- No. of A connectors
1 x
- Type A
RS232 socket
- Insulation
Photocoupler
- No. of B connections
1 x
- Suitable for DIN rail mounting
Yes
- Type B
Screw terminals
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342319 Roline Converter [1x RS232 socket - 1x Screw terminals]
Description
Converter for RS422/RS485 devices to the RS232 port of the PC, with galvanic isolation
This text is machine translated.
This text is machine translated.
Features
- Insulation 3000 VDC (optical)
- Fully compatible with serial COM ports
- Connection: RS-232: DB9 socket, RS-422/485: Terminal block 7-pin
- Automatic transmission/reception direction switching (auto-toggling)
- Data transfer rate bus to 115Kbit/s.
- Terminal resistance and echo mode
- Dip switch for terminal settings
- SIGNALS: TXD, RXD, RTS, CTS, GND FOR RS-232
- 15kV ESD protection for all signals, RS-422/485 signal surge protection
- Status LEDs
- Hardware solution, no software required
- Power supply: DC power supply 10~30 VDC via terminal block (m.. Overvoltage protection)
- Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008, XP 64-bit, Windows Vista, Vista 64-bit, Server 2008 R2, Windows 7, Windows 7 x64, Mac OS 8/9, OS-X.
