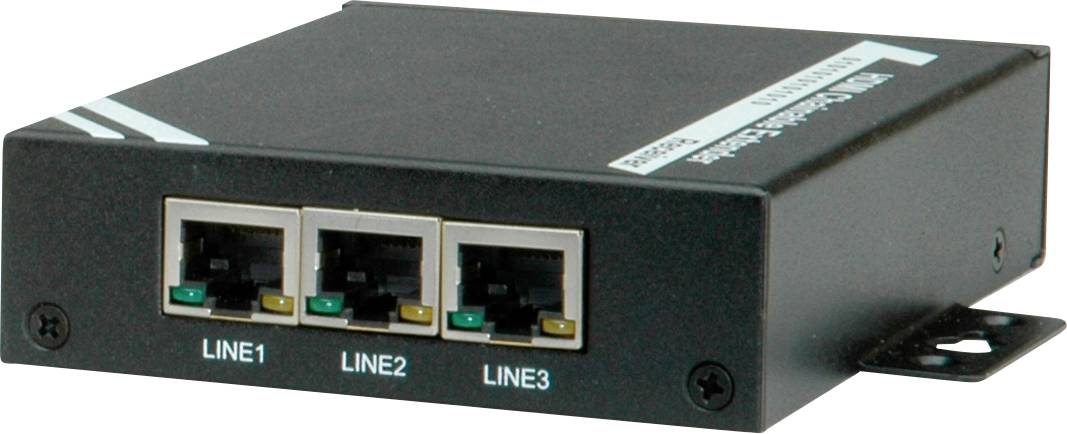

Roline HDMI™ HDMI extender 100 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
HDMI extender
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
100 m
- Factory colour
Black
- Weight
562.87 g
- Cable design
Round
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
C13/C14 appliances
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342417 Roline HDMI™ HDMI extender 100 m
Description
For further extension of the PC monitor distance up to 100 meters in connection with 14.01.3468
This text is machine translated.
This text is machine translated.
Features
- The two converters are simply connected via a twisted pair Cat.5 or 6 cable
- Hardware solution, no software required
- Another HDMI monitor can be connected to the transmitter side.
- The range of the HDMI signal can be extended by up to 100 m with the help of the HDMI extension and a Cat. 5e or Cat.6 cable
- Maximum resolution (nominal) when using a 100 m cat.6 cable: 1920 x 1200, 1080p
- Supports CEC pass-through
- Supports stereo audio
- External infrared transmitter - allows the use of the remote control of the connected source device
- Housing: metal
