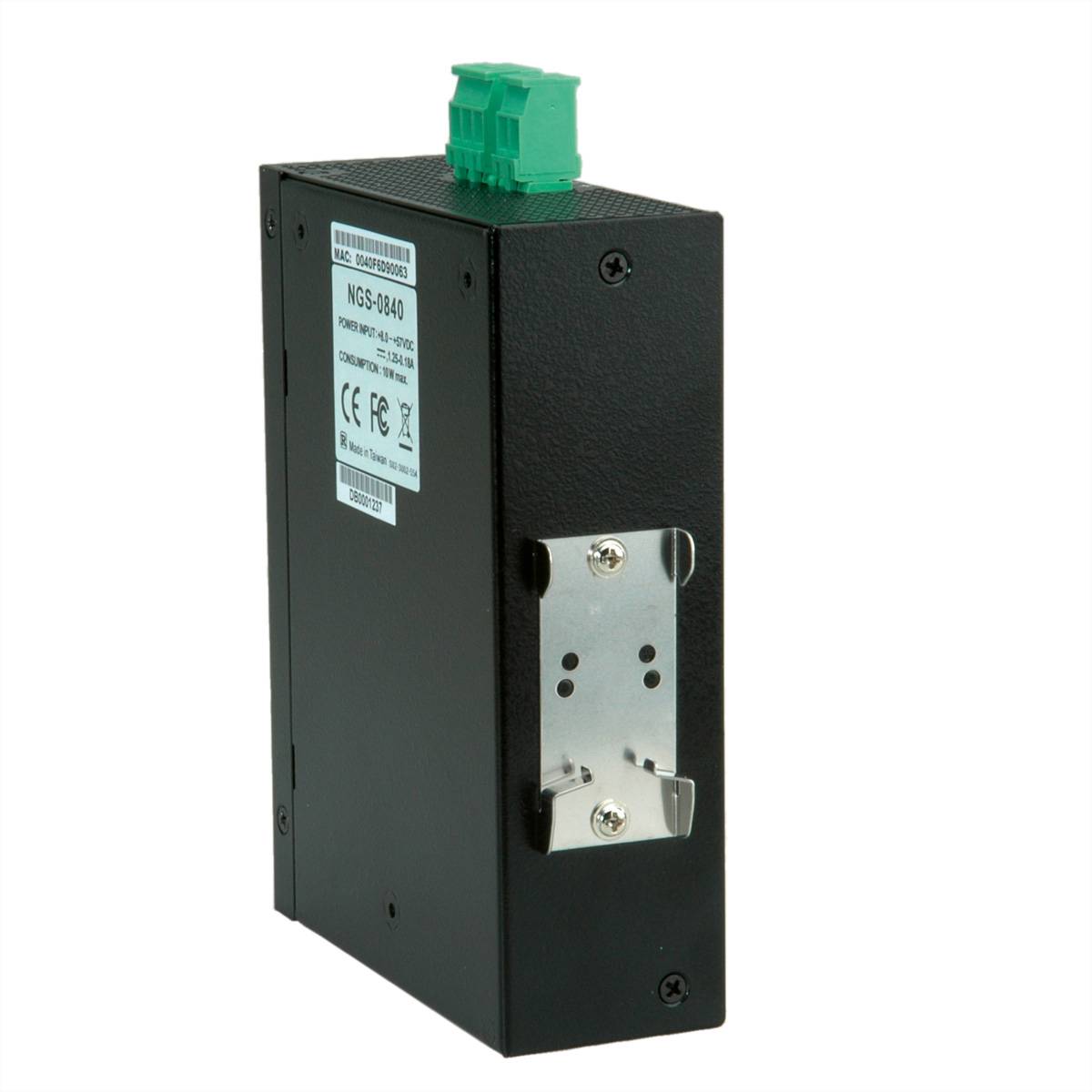

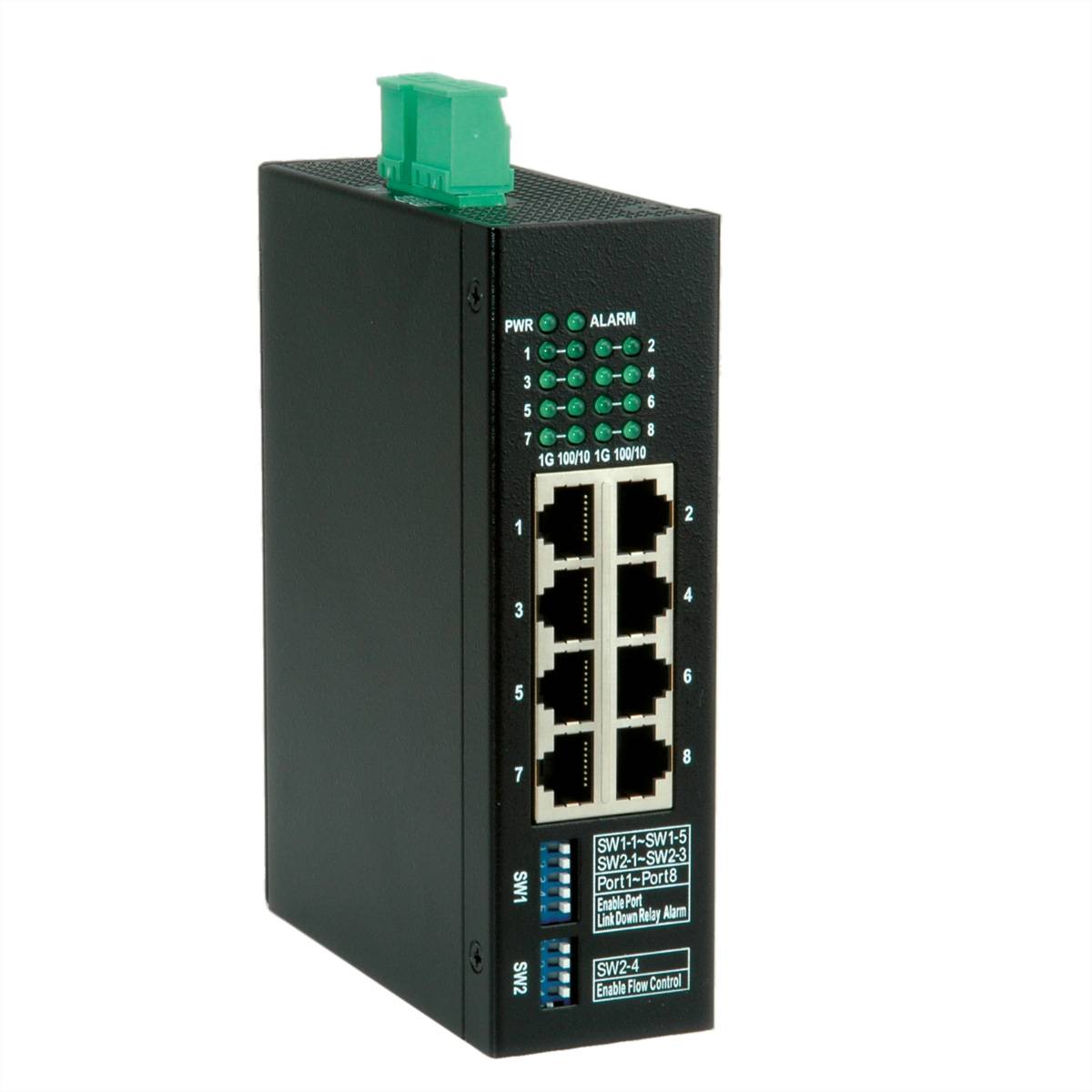

ROLINE industrial gigabit switch, 8x RJ-45
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Network switch for use in industrial environments...
- Gigabit Ethernet switch with 8x 10/100/1000Base-T ports
- Supports auto negotiation, auto MDI/MDI-X
- For use in industrial environments
- Supports Jumbo frames
- DIN rail mounting or with mounting plate
Technical specifications
- Product group: Industrial Networking
- Product type: Network switch
- Colour, black
- Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000
- Total number of ports: 8
- Gigabit Ethernet ports RJ-45: 8
- Design: Top hat rail
- Dimensions (HxWxD) 42 x 106 x 140 mm
- Power supply: External power supply
- Mains connection: Loose cables / screw terminals
- Min. Operating temperature -30 °C
- Max. operating temperature: 70 °C
- Min. Storage temperature: -40 °C
- Storage temperature max. 85 °C.
- Height: 42 mm
- Width 106 mm
- Depth: 140 mm
- Weight: 536 g.
- Packaging height 70 mm
- Package width 160 mm
- Packaging depth 210 mm
- Package weight: 0.65 kg
- Gross weight: 0.65
- Product type
Network switch
- Ethernet ports
8
- 10/100/1000 Mbps ports
8 x
- Weight
0.65
- Type
21.13.1163
- Factory colour
Black
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798273 ROLINE industrial gigabit switch, 8x RJ-45
User & Safety Instructions
User & Safety Instructions 3798273 ROLINE industrial gigabit switch, 8x RJ-45
Description
Network switch for use in industrial environments Gigabit Ethernet switch with 8x 10/100/1000Base-T ports. Supports auto negotiation, auto MDI/MDI-X. For use in industrial environments. Supports Jumbo frames. DIN rail mounting or with mounting plate. Operating voltage +8.0 to +57VDC. Power consumption max. 10 W Input DC via terminal block . As a suitable power supply, we recommend the DIN rail power supply NDR-75-24 (21.13.1311)
This text is machine translated.
Scope of delivery
- Splitter
