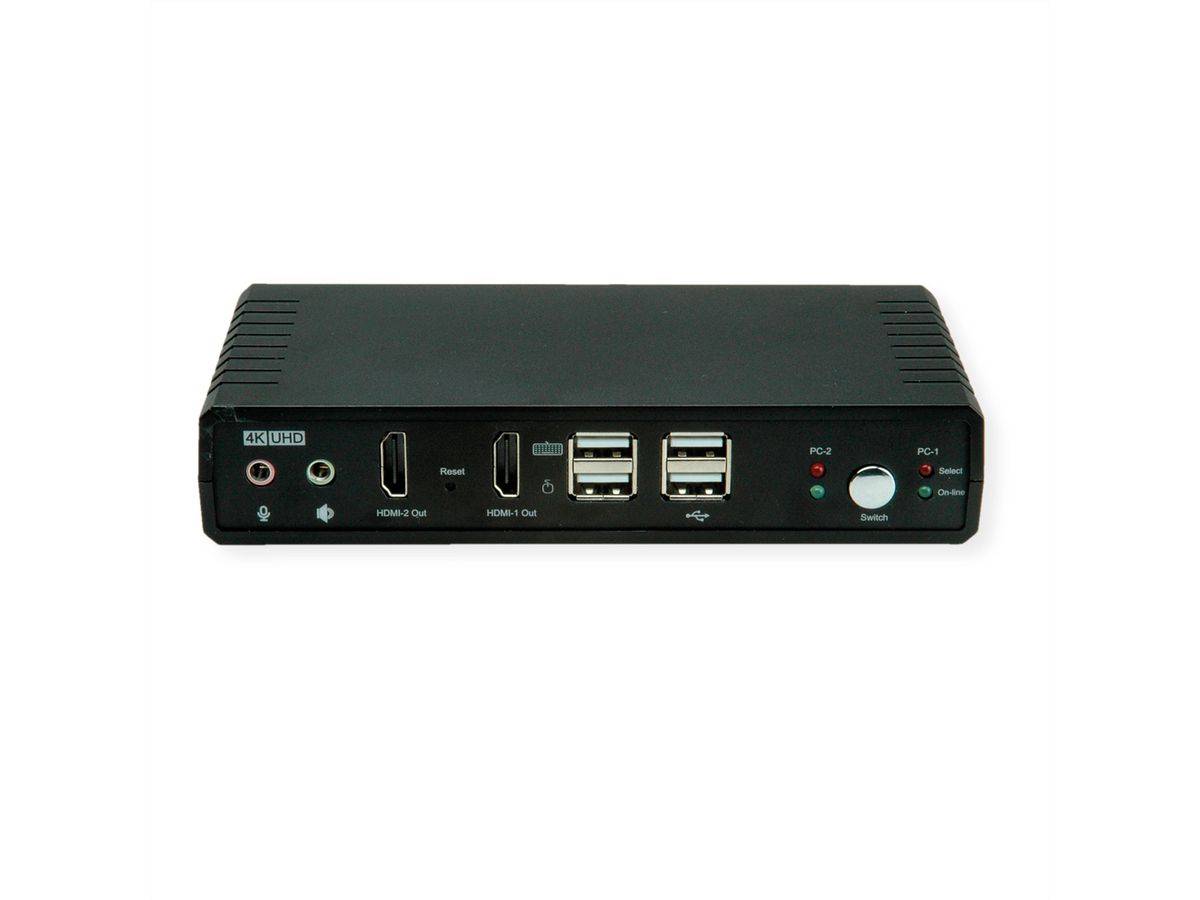

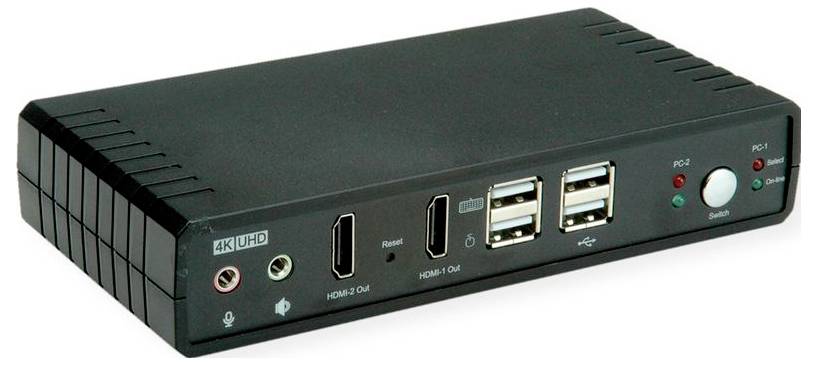

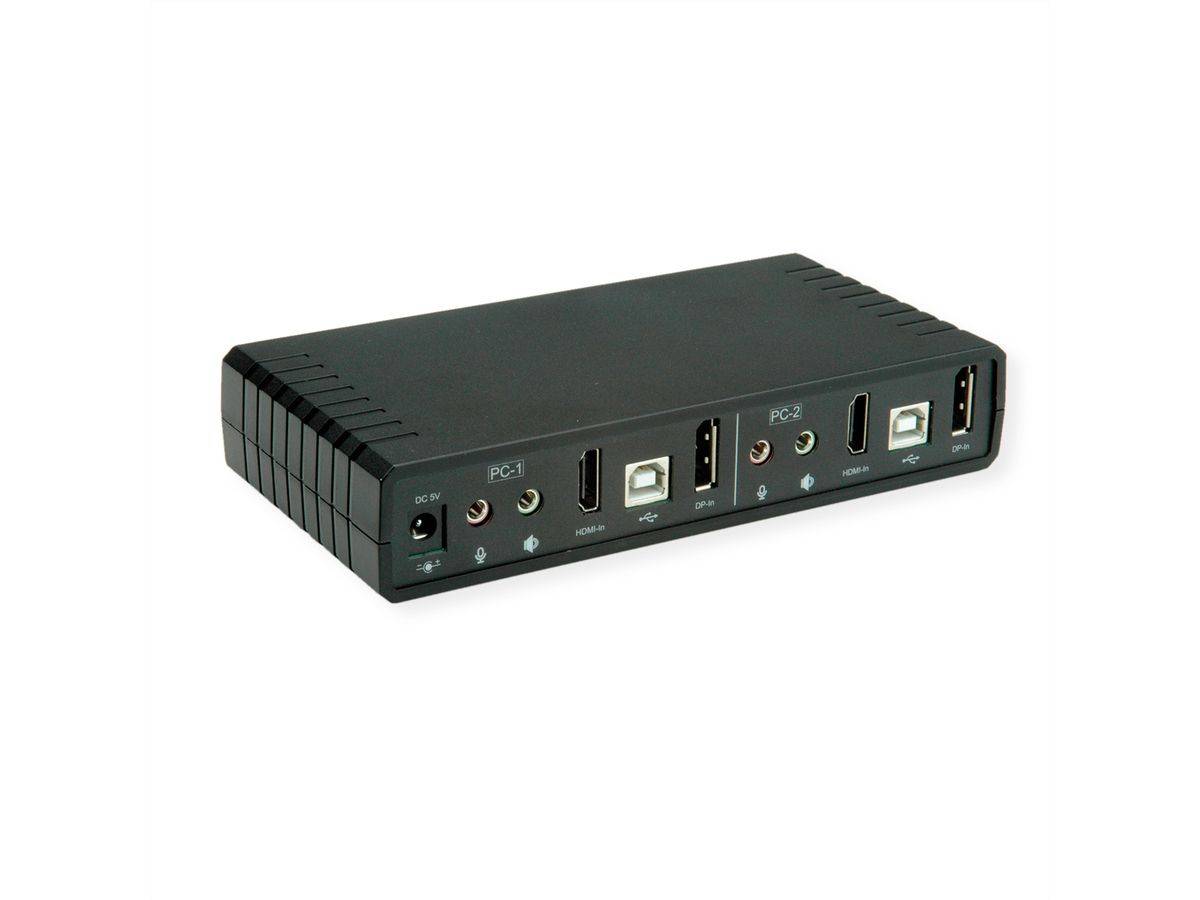

Roline KVM changeover switch HDMI 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Highlights & Details
Roline KVM changeover switch
- Black
- Number of computers: 2
- Keyboard Port type: USB Mouse port type: USB Video Port type: HDMI/DisplayPort
- 4K Ultra HD 3840 x 2160 pixels
Technical specifications
- HD type 4K Ultra HD
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
HDMI
- Video resolution
3840 x 2160 Pixel
- Audio headphones
Yes
- Audio microphone
Yes
- No. of USB 2.0 ports
4 x
- Stackable
No
- Rack mount option
No
- Switch function
Hot key
Key
- Distributor/switch features
LED display
Steel casing
+ audio ports
Ultra HD compatibility
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
227 g
- Width
167 mm
- Height
32 mm
- Dim
(W x H x D) 167 x 32 x 84 mm
- Cable design
Round
- Version
Cable
- Depth
84 mm
- Display resolution
3840 x 2160 Pixel
- No. of DisplayPort
2 x
- No. of HDMI ports
4 x
- Cable use
C13/C14 appliances
- HDCP
Yes
- Input voltage
5 V
- UKCA
yes
- Number of microphone inputs
3
- USB hub
yes
- Console USB ports quantity
4
- Headphone outputs
3
- DC-in jack
yes
- Number of computers controlled
2
- Video bandwidth
60 Hz
- USB 2.0 Type-A hub ports quantity
2
- Storage temperature (T-T)
-20 - 60 °C
- Package weight
1 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629147 Roline KVM changeover switch HDMI 3840 x 2160 Pixel
Description
This Dual head KVM switch enables the use of two computers with only one USB mouse, one USB keyboard and a Dual monitor mode with HDMI resolution of 4K at 60 Hz. It also offers microphone and loudspeaker connections as well as a 2-port USB-hub.
