Roline PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
EAN:
Part number:
Item no:
ROLINE Gigabit PoE Injector, 30W
Technical specifications
- Max. Output Power PoE 30W
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
62 mm
- Height
38.5 mm
- Length
165 mm
- Depth
165 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- Weight
405.1 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557347 Roline PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
Description

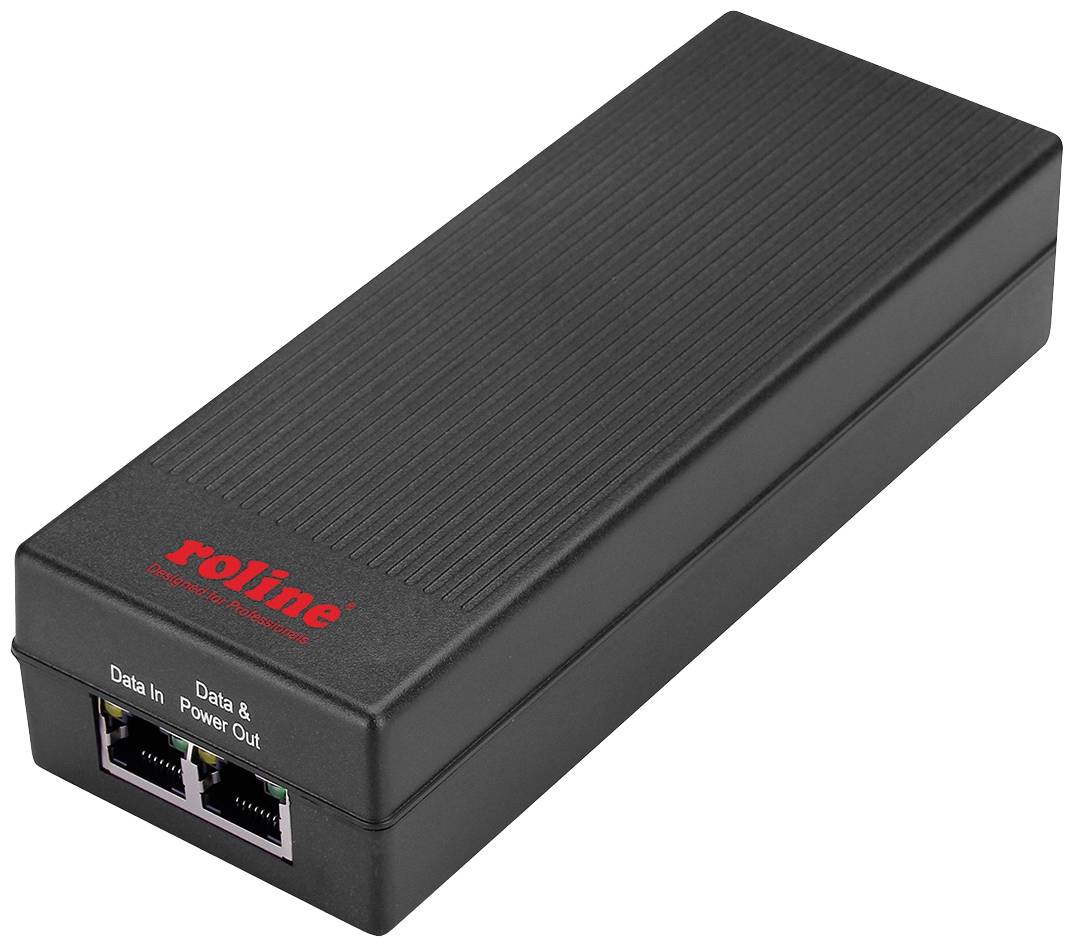

The ROLINE Gigabit PoE injector is a so-called PSE, a device for supplying power to surveillance cameras and LAN devices such as access points, bridges and routers via Ethernet cable. A PSE feeds power to the data into the network cable. You no longer need to connect your own power supply to the LAN device. Data and power feed into network cable supports Gigabit Ethernet (10/100/1000) Connections: 1x RJ-45 port (input data), 1x cold-device socket (input power supply), 1x RJ-45 port (output data and current) compatible with 802.3at and 802.3af power via PoE: Up to 30W LED displays for power, link/act. And PoE output voltage: 46V - 52V DC Dimensions (L x W x H): 165 x 62 x 38.5 mm
