Roline PoE splitter 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:

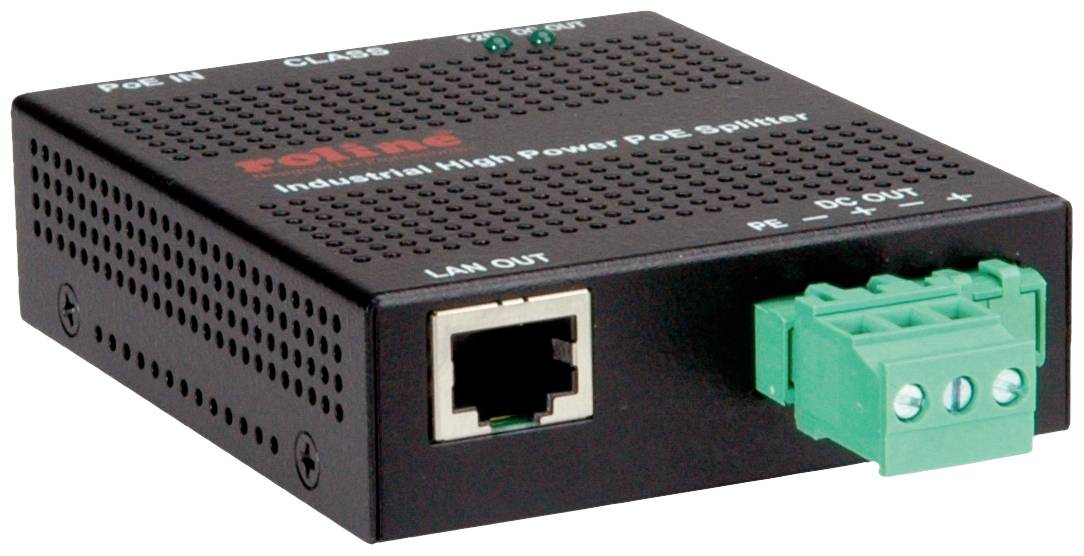

Roline high Power PoE splitter, 30W
Highlights & Details
- Isolation of data and power from the network cable
- 1x RJ-45 port (data and power input), 1x DC hollow plug socket (power output), 1x RJ-45 port (data output)
- Supports Gigabit Ethernet (10/100/1000)
- Compatible with 802.3at and 802.3af
- Supports PoE input over TP wire pairs of alternatives A or B.
- Provides DIP switches for setting the Power class as it comes from the PSE
- Supports type 1 PSE (for power up to 13 Watts) as well as type 2 PSE 2 (for power up to 30 Watts)
- Regulated DC current output with fixed voltage: 12 V
- LED display for PoE
- Metallic housing, DIN rail mounting possible
- Dimensions (L x W x H) 73 x 85 x 24 mm
Technical specifications
- Product type
PoE splitter
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
85 mm
- Height
24 mm
- Depth
73 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.32
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2888004 Roline PoE splitter 10 / 100 / 1000 MBit/s
Description
The ROLINE Gigabit PoE Splitter is a device intended for supplying power to, for example Surveillance cameras or access points via Ethernet cable. A PoE splitter separates power and data that come over the network cable, and feeds both separately to the connected device that does not need to have its own power supply unit.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Splitter, DC cable, operating instructions (on CD)
