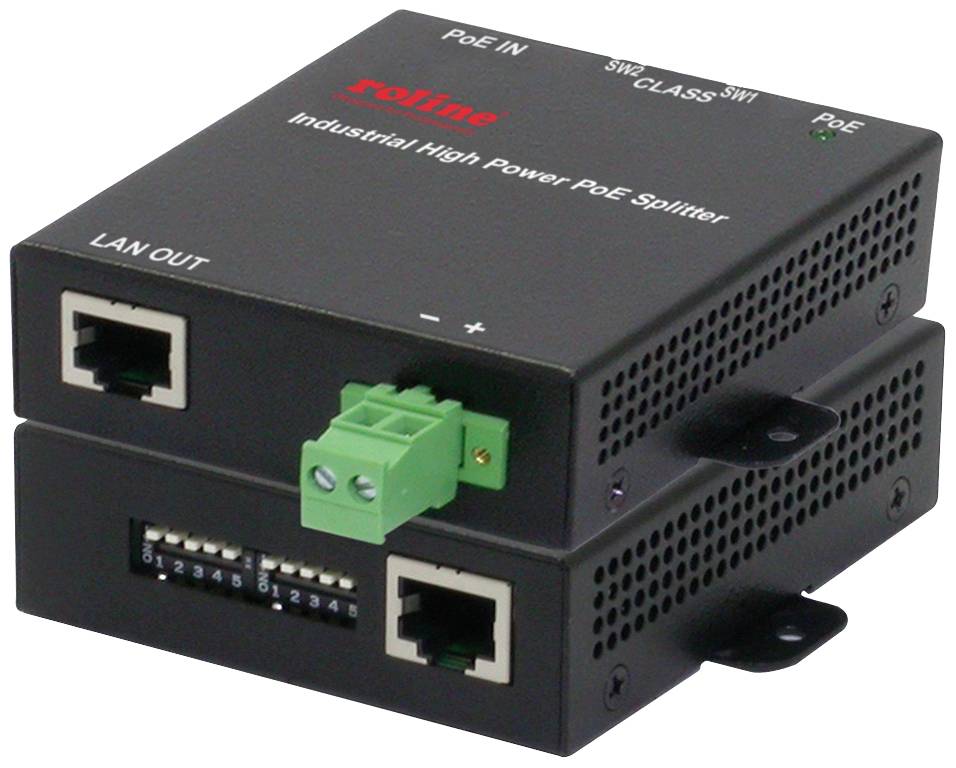

Roline PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
EAN:
Part number:
Item no:
ROLINE High power PoE++ splitter, 128W
Technical specifications
- Max. Output power PoE 128 W.
- Product type
PoE splitter
- PoE
IEEE 802.3af (12.95 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
85 mm
- Height
24 mm
- Length
73 mm
- Depth
73 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- Weight
201.1 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558700 Roline PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
Description
The ROLINE Gigabit PoE Splitter is a device for supplying power to, for example, surveillance cameras or access points via Ethernet cable. A PoE splitter separates the power and data that come via the network cable and feeds both separately to the connected device, which then no longer has to have its own power supply. Separation of data and power from the network cable Connections: 1x RJ-45 port (input data and current), 1x DC-hollow plug socket (output power supply), 1x RJ-45 port (output data) supports Gigabit Ethernet (10/100/1000) compatible with 802.3at and 802.3af supports PoE input via TP-wire pairs of the alternatives A or B offers DIP switches for setting the power class, As it comes from the PSE supports both type 1 PSE (for power up to 13 watts) and type 2 PSE 2 (for power up to 30 watts) Regulated DC current output LED display for PoE metal housing, DIN rail mounting possible Dimensions (L x W x H): 73 x 85 x 24 mm
