Roline RJ45 module Keystone CAT 8.1 1 pc(s)
EAN:
Part number:
Item no:

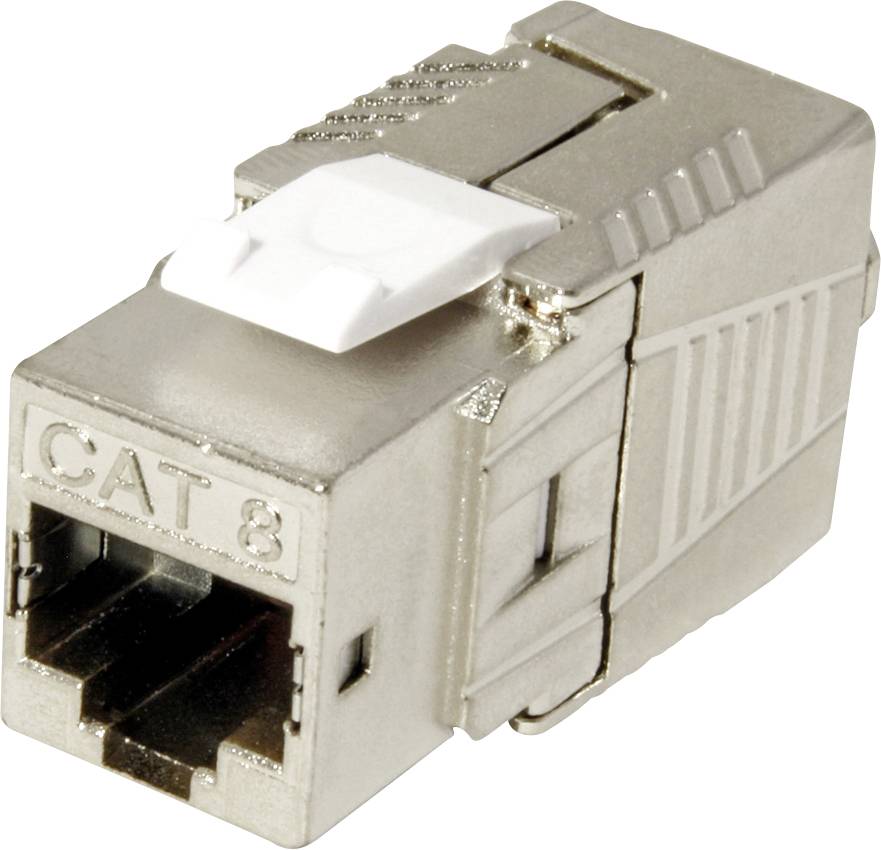

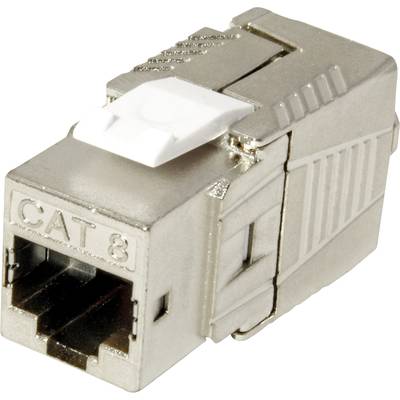

ROLINE Cat.8 (Class I) keystone, shielded, tool-free, silver-colored
Technical specifications
- Compatible with
Keystone
- Product type
RJ45 module
CAT 8.1
- Mating direction
180°
- Tool-free installation
Yes
- Cable design
Round
- Version
Cable
- Factory colour
Silver
- Cable use
C13/C14 appliances
- Weight
0.10
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2341494 Roline RJ45 module Keystone CAT 8.1 1 pc(s)
Description
keystone for use in 10 Gigabit Ethernet networks. Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same type of cabling and supports 25GBASE-T and 40GBASE-T applications for short distances. Our Cat. 8 cables are not only halogen-free and flame-resistant (LSOH), but also GHMT certified and thus tested for their quality and performance.
This text is machine translated.
This text is machine translated.
Features
- The cables are connected to the keystones without tools - the cable cores are simply placed in the guides; the module is closed and compressed - the connection is ready
- Cat. 8.1, suitable for 10 to 40 GBit/s.
- Keystones for AWG 22 - 24 solid wire (AWG 23 - 26 stranded wire for Cat.6A only)
- Fully shielded, 360° shield contact
- For cable diameter 5.6 - 8.5 mm
- Printed color coding according to EIA / TIA 568
- Robust zinc die-cast housing, nickel-plated
- The keystone modules can be mounted in a 19" module carrier (26.11.0360 in black or 26.11.0359 in light gray) with earth connection. Or together with a module mounting 25.16.8579 they become the junction box.
