Roline Roline N/A 21.17.0323 Plug No. of pins (RJ) 8P8C Silver (metallic) 1 pc(s) 21.17.0323 Plug No. of pins (RJ) 8P8C
EAN:
Part number:
Item no:
Packaging type
Package
Product type
RJ45 plug
Connector type
Plug
No. of pins
8P8C
Specification
CAT 6A
Roline N/A 21.17.0323 Plug No. of pins (RJ) 8P8C Silver (metallic) 1 pc(s)
Technical specifications
- Shield contact: Yes
- Packaging type
Package
- Type
21.17.0323
- Product type
RJ45 plug
- Connector type
Plug
- No. of pins
8P8C
CAT 6A
- Connector standard
RJ45
- AWG max.
23
- AWG (min.)
26
- Connection
RJ45
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Weight
0.019
- Factory colour
Silver (metallic)
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Width
13.8 mm
- Height
16.8 mm
- Length
41.8 mm
- Features
+ strain relief
+ shielding
- Max. temperature
60 °C
- Min. temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559063 Roline Roline N/A 21.17.0323 Plug No. of pins (RJ) 8P8C Silver (metallic) 1 pc(s) 21.17.0323 Plug No. of pins (RJ) 8P8C
Description

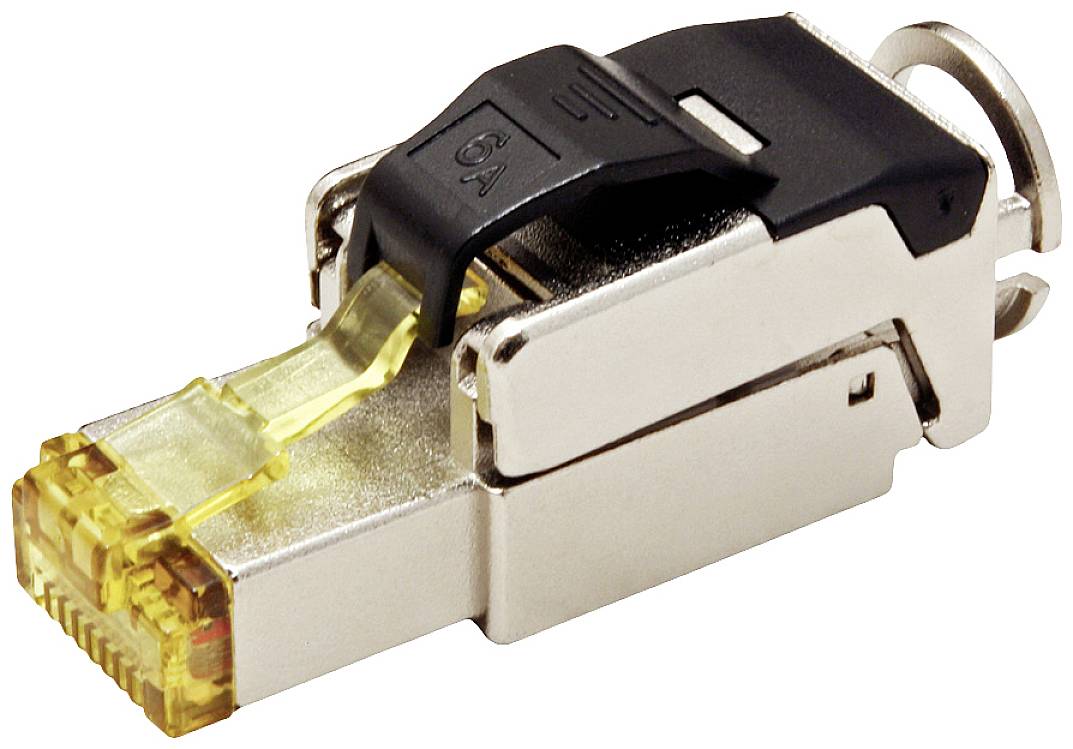

Field attachable plug for solid wire and stranded cable 8-wire field configurable shielded RJ45 plug for AWG26/1-AWG23/1, AWG26/7-AWG24/7 without special tool for cable with cable diameter 6.0 to 9.0 mm robust zinc die-cast housing strain relief with cable tie silver-colored
