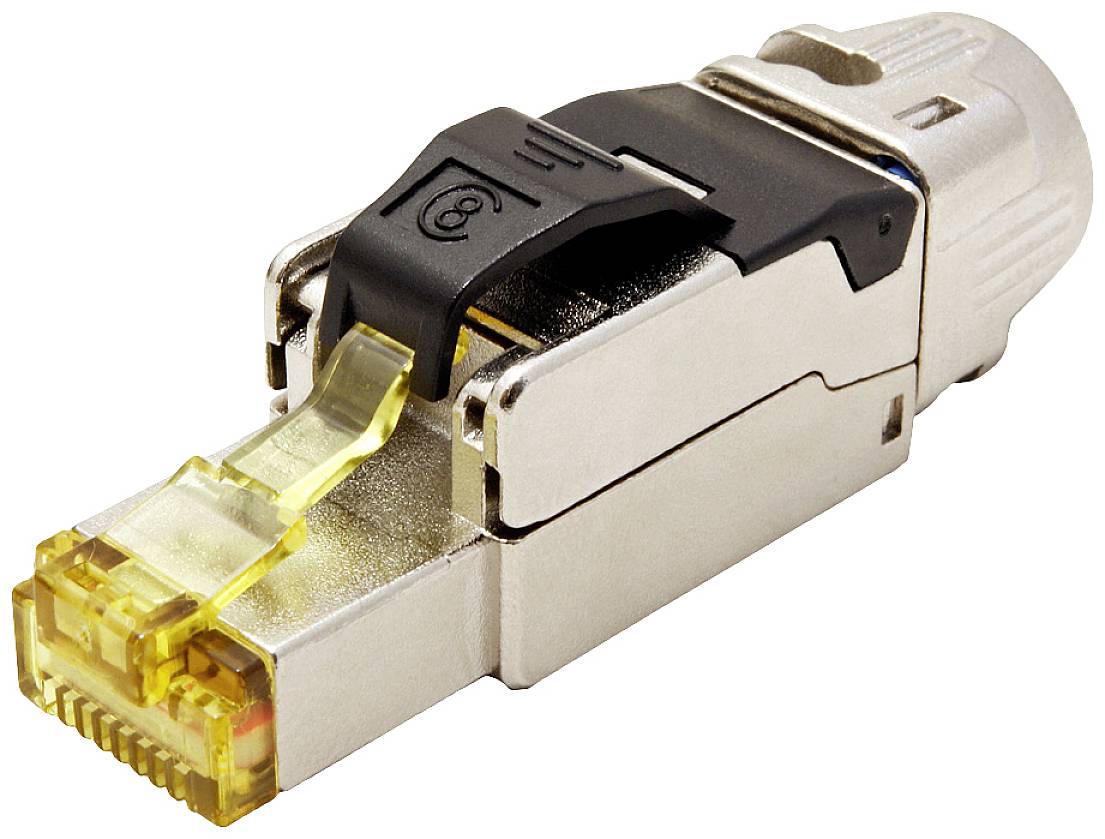

Roline Roline N/A 21.17.3086 RJ45 plug enclosure No. of pins (RJ) 8 Silver (metallic) 1 pc(s) 21.17.3086 RJ45 plug enclo
EAN:
Part number:
Item no:
Product type
RJ45 plug
Connector type
RJ45 plug enclosure
No. of pins
8
Specification
CAT 8.1
Connector standard
RJ45
Roline N/A 21.17.3086 RJ45 plug enclosure No. of pins (RJ) 8 Silver (metallic) 1 pc(s)
Technical specifications
- Shield contact: Yes
- Type
21.17.3086
- Product type
RJ45 plug
- Connector type
RJ45 plug enclosure
- No. of pins
8
CAT 8.1
- Connector standard
RJ45
- AWG max.
24
- AWG (min.)
22
- Connection
RJ45
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Weight
0.02
- Factory colour
Silver (metallic)
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Width
13.8 mm
- Height
18.4 mm
- Length
50.2 mm
- Features
+ strain relief
+ shielding
- Max. temperature
60 °C
- Min. temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559067 Roline Roline N/A 21.17.3086 RJ45 plug enclosure No. of pins (RJ) 8 Silver (metallic) 1 pc(s) 21.17.3086 RJ45 plug enclo
Description
8-wire field configurable RJ45 plug for easy, fast and reliable assembly without special tools 8-wire field configurable RJ45 plug for AWG 22 - 24 solid wire (AWG 23 - 26 stranded cable only for Cat.6A) Cat. 8.1, suitable for 10 to 40 GBit/s simple, fast and reliable assembly - without connecting special tools, Easy-to-operate strain relief clamp robust zinc die-cast housing, nickel-plated fully shielded, 360° shield contact for cable diameter 5.6 - 8.5 mm
