Roline TV wall mount 94,0 cm (37") - 203,2 cm (80") Tiltable, Height-adjustable, Rotatable
EAN:
Part number:
Item no:

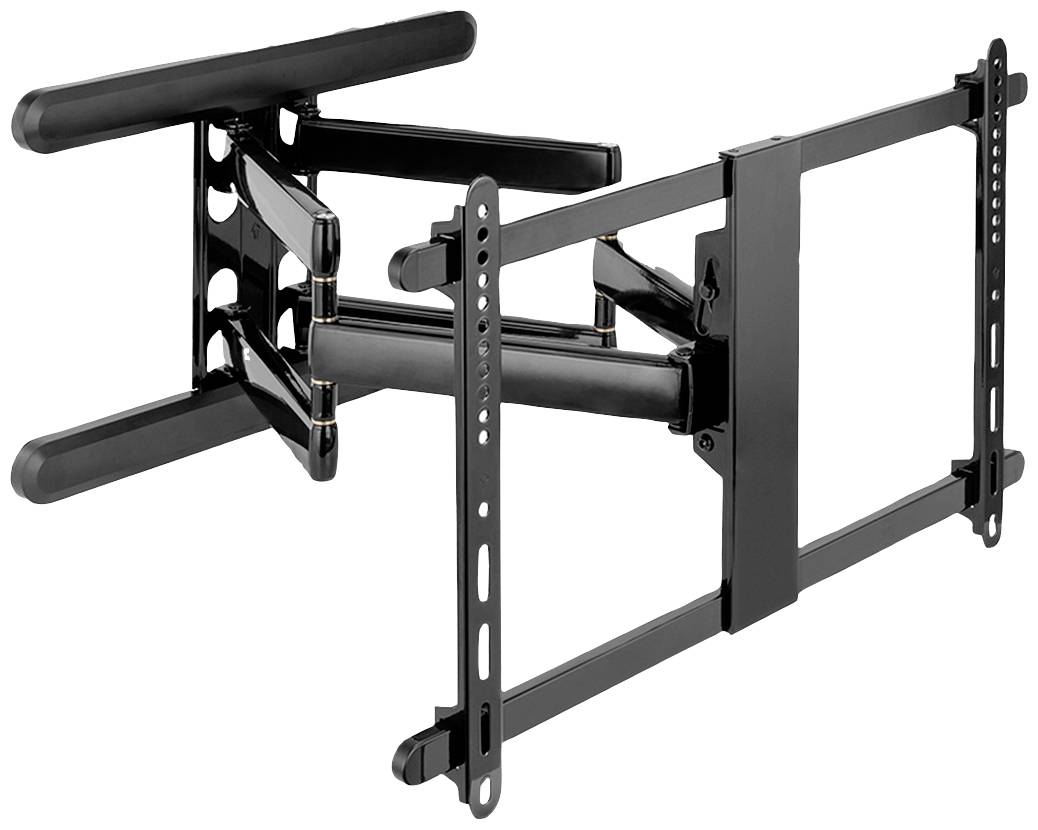

Roline TV wall mount
Highlights & Details
- Holder type: Tiltable, Height-adjustable, Rotatable
- Supports VESA standards up to
- Suitable for displays sized (range): 94,0 cm (37") - 203,2 cm (80")
- Load capacity (max.) 70 kg
Technical specifications
- Product type
TV wall mount
- Suitable for
94,0 cm (37")
95,3 cm (37,5")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
Show more
- Suitable for
94,0 cm (37") - 203,2 cm (80")
- Holder type
Tiltable
Height-adjustable
Rotatable
- Max. load capacity
70 kg
No
200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
- Distance to wall (max.)
69 mm
- Width
730 mm
- Height
445 mm
- Depth
660 mm
- Factory colour
Black
- Material (details)
Metal
- Weight
12.1 kg
- Dim
(W x H x D) 730 x 445 x 660 mm
- Add-on displays
1 Display(s)
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017737 Roline TV wall mount 94,0 cm (37") - 203,2 cm (80") Tiltable, Height-adjustable, Rotatable
Description
Stable, very flexibly adjustable wall bracket for TVs and monitors
This text is machine translated.
This text is machine translated.
Features
- For screens with screen sizes: 94 cm to 203.2 cm (37" to 80")
- Load capacity up to 70 kg
- Wall distance depending upon the setting: 69 mm to 660 mm
- Monitor can be rotated up to 60° to the right or left
- Adjustable angle of inclination up to 5° upwards or up to 10° downwards
- Allows the monitor to be rotated up to 2° from the horizontal position
- Fixed suspension
- Screens with different mounting points (VESA 200x200 to VESA 600x400) can be mounted
