Roline UPS 1500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

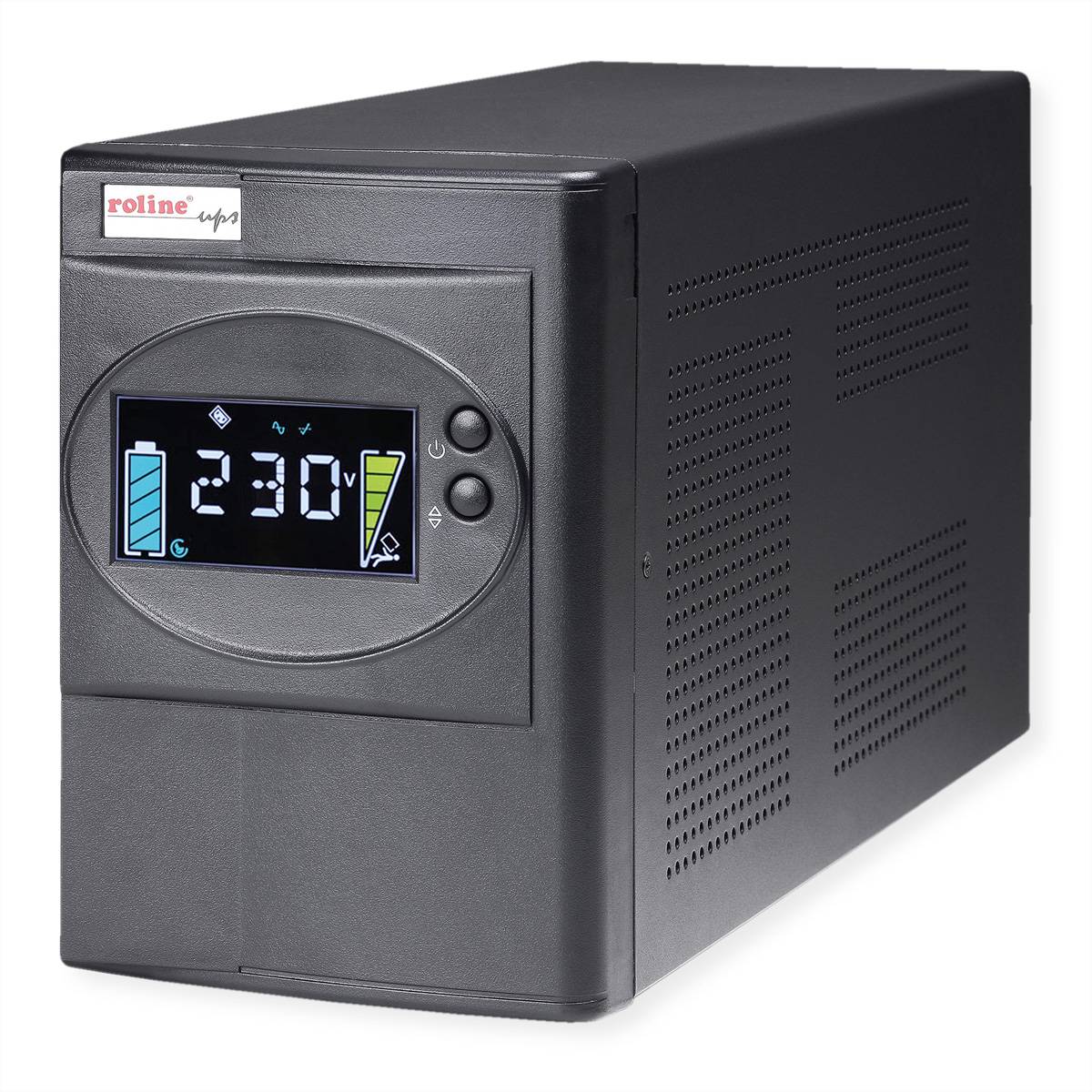

ROLINE LineSecure III 1500 tower uninterrupted power supply (UPS) Line-interactive 1.5 kVA 1200 W 8 AC-outputs
- Line interactive
- 1.5 kVA 1200 W
- Waveform: Pure sine
- 8 AC outputs
- Lead acid 12 V 7.2 Ah
- Tower black
Technical specifications
- Number of AC outputs: 8 AC outputs
- Battery technology: Lead acid
- Product type
UPS
- Nominal power
1500 VA
- No. of outputs
8 x
- Output
IEC socket
- Bridging time, max load
3 min
- Type
19.40.1123
- Width
140 mm
- Height
210 mm
- Depth
380 mm
- Weight
15 kg
- Cable design
Round
- Version
Cable
- Factory colour
Black
- No. of USB A 2.0 ports
1 x
- Cable use
C13/C14 appliances
- Case type
Tower
- Cooling
Active
- Battery capacity
7.2 Ah
- Battery voltage
12 V
- 10/100/1000 Mbps ports
1 x
- Max. operating noise
40 dB
1200 W
- Response time
4 ms
- Nominal load efficiency
95 %
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Automatic Voltage Regulation (AVR)
yes
- Number of batteries supported
2
- Serial interface
yes
- Output power capacity
1.5 kVA
- Typical backup time at half load
6 min
- Typical backup time at full load
3 min
- Modem (RJ-11) ports
1
- USB port
yes
- Hot-swap battery
no
- Built-in fan
yes
- RS-232 ports
1
yes
- Batteries included
yes
- Maintenance-free
yes
- Operating relative humidity (H-H)
0 - 90 %
- Package weight
16.8 kg
- Surge protection
yes
- Number of batteries included
2 Stück(e)
- Input operation voltage (max)
240 V
- Input operation voltage (min)
100 V
- Output operation voltage (min)
100 V
- Output operation voltage (max)
240 V
Documents & Downloads
Datasheet
Datasheet 3797500 Roline UPS 1500 VA
User & Safety Instructions
User & Safety Instructions 3797500 Roline UPS 1500 VA
Description
The ROLINE UPS series LineSecure works in line-interactive technology and is used at all places, where a sensible safety is to be ensured. The LineSecure III UPS-series with intelligent design and pure sine output for connected applications is the best choice for office, SOHO and home applications. It offers a high-quality pure sine output for connected critical devices. In addition, it has an AVR (Automatic Voltage Regulator) that stabilizes fluctuating voltages like over-and under-voltage as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and enhances the user-friendliness. The LS III series provides power protection, including overload, overvoltage, and short-circuit protection. Via the USB-connection it enables the monitoring of the UPS-status, the planning of UPS-events and the immediate notification via a computer system or a portable device. Furthermore one slot for an SNMP/web card.
This text is machine translated.
Scope of delivery
- UPS, USP management software (download), and cable set
