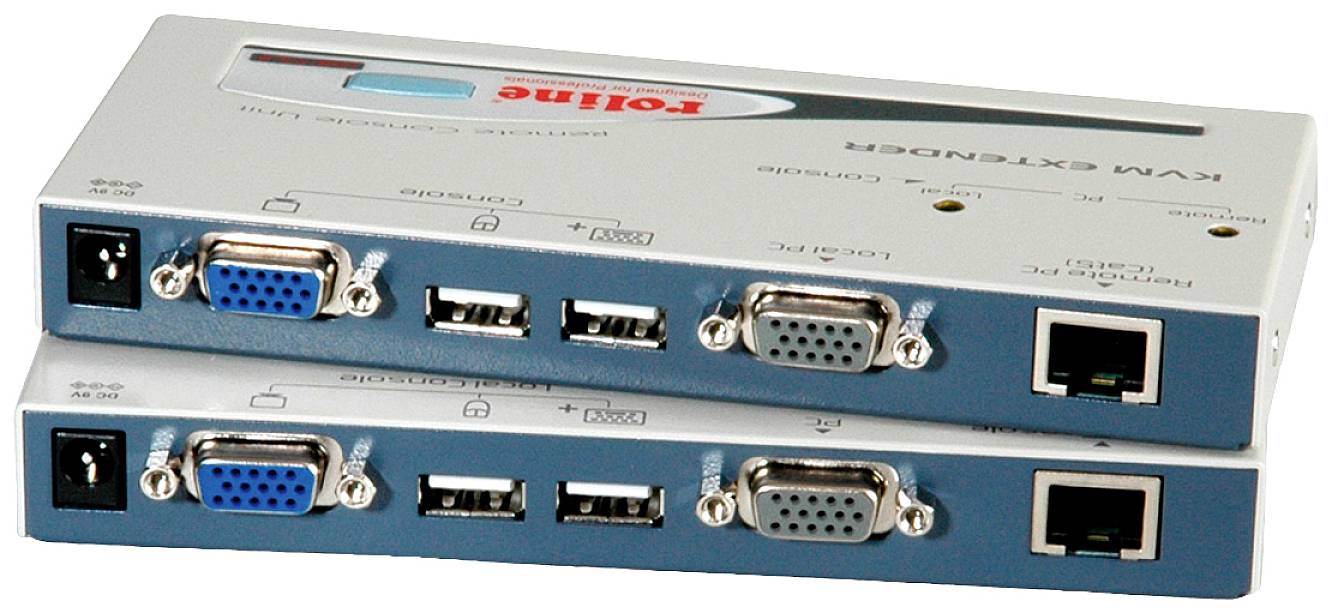

Roline USB KVM extender via RJ45 network cable 150 m
EAN:
Part number:
Item no:
Roline USB KVM extender via RJ45 network cable 150 m
Technical specifications
- Local Console Port: YesPower supply 9 V/DC; 600 mAMaterial casing: Metal
- Product type
KVM extender
- Transfer type
via RJ45 network cable
- Interfaces (input)
USB
- Resolution (max.)
1024 x 768 p
- Range (max.)
150 m
- Factory colour
Grey
- Weight
1068 g
- Length
65 mm
- Width
156 mm
- Height
20 mm
- Dim
(L x W x H) 65 x 156 x 20 mm
- Power supply (LOV)
via PSU (optional)
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558926 Roline USB KVM extender via RJ45 network cable 150 m
Description
Smart combination of KVM extension (up to 150m!), KVM switch and a PC share to the console unit connect your local PC and your console (VGA monitor, USB mouse and keyboard); to the computer unit the remote PC and a second (VGA/USB) console. Now you can work on your local or remote PC (KVM switch function), While another user (alternating with you) can also work on the remote PC (PC share function) the two units are connected to each other via a Cat. 5e twisted pair cable link robust metal housing with both units adjustable video compensation for the comparison of the runtime differences Application example: ROLINE KVM Extension for remote operation of a work station The system offers the connection of an additional console via a local and a remote unit. This can be operated via a Cat.5 cable with remote VGA and USB control unit. Up to 150 m away from the PC, the console can be set up in convenient access, while the PC itself is installed in a secure environment.
