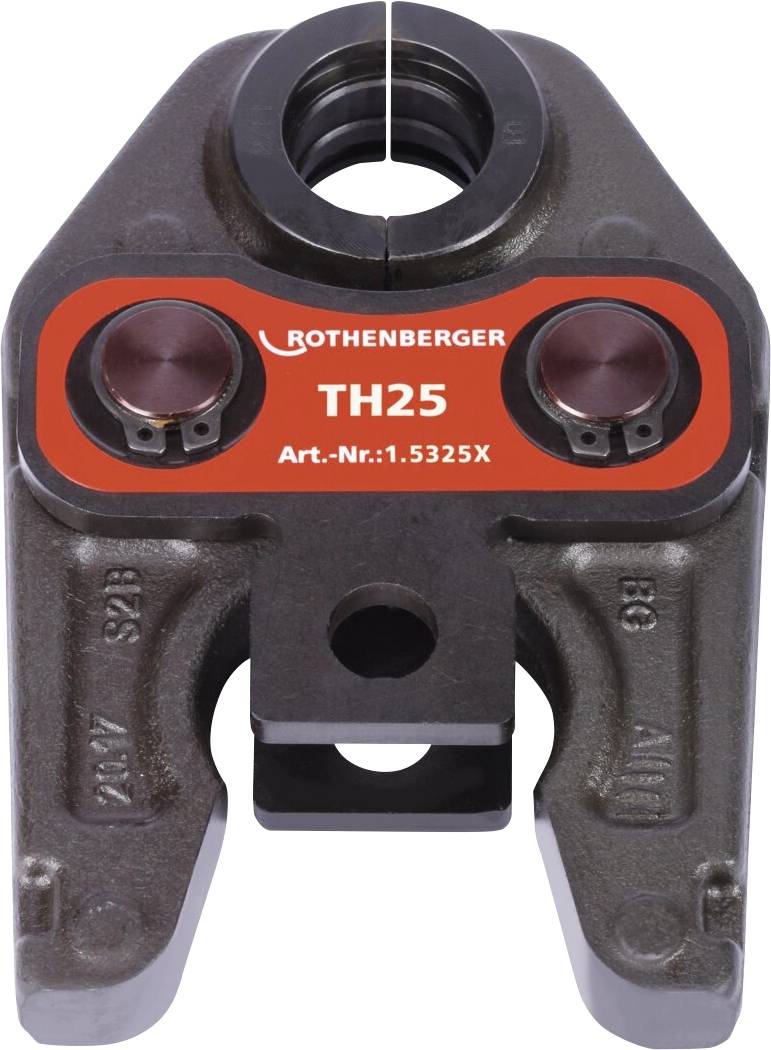

'Rothenberger TH25', a heavy-duty metal hydraulic press jaw with model information on the front and a central opening for crimping.

An abstract design featuring overlapping black and white rectangles arranged horizontally on a white background.

1/2

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Press jaw standard TH25

DURA LAZR TEC Procedure - Partial laser hardening allows highest hardness at high loads. This results in minimal wear and high contour accuracy
In combination with the forged, high-capacity and flexible special steel, the new press-jaw generation achieves a 100% longer durability compared to the previous generation
The 3-bolt synchronous operation mechanism enables the opening of the press jaw with a finger
Precision-manufactured contour for optimum and secure crimping

Technical specifications

Product type: Jaw

Compatible with diameters of: 25 - 25 mm

Suitable for diameters of (max.): 25 mm

Suitable for pipe diameter (min.): 25 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3551481 Rothenberger 015325X Jaw

Description

The standard press jaw of the TH contour with a nominal diameter of 25 mm is suitable for Ideal for system-compliant crimping of fittings for plastic pipe systems. An extended service life of the press jaw as well as a precise crimping is achieved by the special, partial laser hardening process called DURA LAZR TEC. As a result, there is minimal wear within the crimp contour as well as a doubling of the crimp cycles compared to the previous model. The quality of the press jaws, over the entire service life, is perfected by the optimized corrosion protection. With the integration of a 3-bolt synchronous operation mechanism the opening of the press jaw becomes a ease in daily use (one-finger operation). The Rothenberger press jaws are suitable for all presses with a thrust force of 32-34kN thanks to the use of high-capacity special steel. The standard press jaw is suitable for use with the ROMAX 4000, ROMAX 3000 AC and ROMAX AC ECO presses with constant axial thrust force. The crimp is perfect for crimping in new construction, for renovation works and for maintenance of plastic systems.

This text is machine translated.
