Rothenberger 1000004184
EAN:
Part number:
Item no:
Number
Total (€ 1,133.61 / piece)
€ 1,133.61
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Working area diameter inches: 1/4 - 2 inches
- ZW sound pressure level: 100
- Thread type BSPT R
- Thread cutting speed 15 - 25 rpm
- Sound pressure level 100 dB(A)
- Sound power level (LwA): 87 dB(A)
- Power consumption: 1,010 W
- Speed fast reverse 58 rpm
- Vibration: 3.02 m/s²
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220845 Rothenberger 1000004184
Description

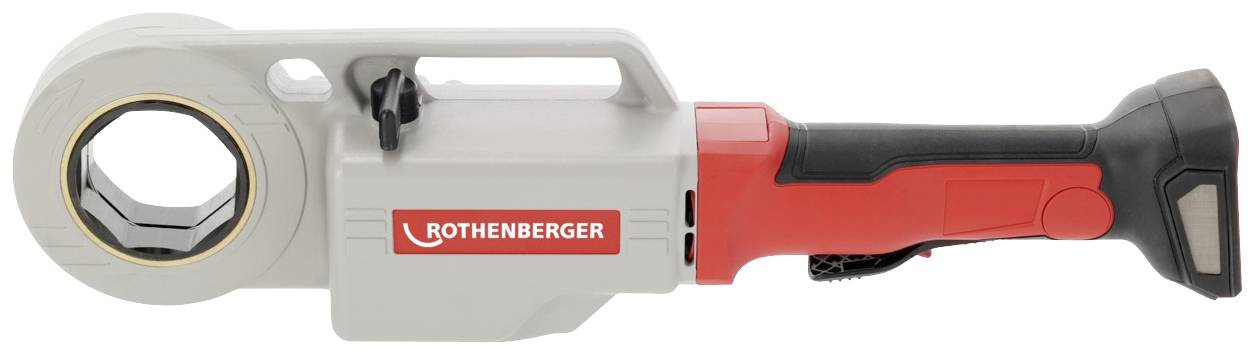

The SUPERTRONIC 2000 E basic unit AMP is a wireless handheld electric thread cutting machine with a working range of 1/4-2". Fitted with a powerful brushless motor, the Supertronic enables more efficient and material-protecting working. The tool-less Speed-Lock cutting head receptacle provides for a fast insertion and a firm seating of the thread cutting heads. With up to 8 threads (2" BSPT) per battery charge and a compact rectangular design Ideal, this device is suitable for working in awkward locations and on workbenches. Sanitary, heating and air-conditioning technicians generate pipe threads according to EN 10226 (BSPT R) on steel pipes of the DIN EN 10255 M-H.
This text is machine translated.
This text is machine translated.
Features
- 4-times faster return thanks to return gear
- User-friendly work thanks to large forward and rewind switch
- Secure attachment of cutting heads by direct attachment with snap ring locking
- Thread cutting close to the wall through an outside cutting head receptacle
- High and constant transmission torque at full load
- Ideal for difficult-to-reach areas (corners, shafts)
- Secure hold in both directions of rotation through hardened, prismatic toothed counter piece
- Maintenance-friendly thanks to continuous lubrication and brushless motor
Scope of delivery
- SUPERTRONIC 2000 E base unit
- Counter-holder
- ROFIX adapter
- ROCASE 6414, with insert for Supertronic 2000 E and thread cutting jaws
- User manual
- With no rechargeable battery
- Without charger
