1/2
Rothenberger 1000004186
EAN:
Part number:
Item no:
Number
Total (€ 1,609.24 / piece)
€ 1,609.24
plus VAT.
14-day return policy included
Technical specifications
- Working area diameter inches: 1/4 - 2 inches
- ZW sound pressure level: 100
- Thread type BSPT R
- Thread cutting speed 15 - 25 rpm
- Sound pressure level 100 dB(A)
- Sound power level (LwA): 87 dB(A)
- Power consumption: 1,010 W
- Speed fast reverse 58 rpm
- Vibration: 3.02 m/s²
- Number of batteries: 1 pieces
- Li-ion battery system
- Battery type: Rechargeable
- System battery: AMPShare
- Battery capacity 4 Ah
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220846 Rothenberger 1000004186
Description

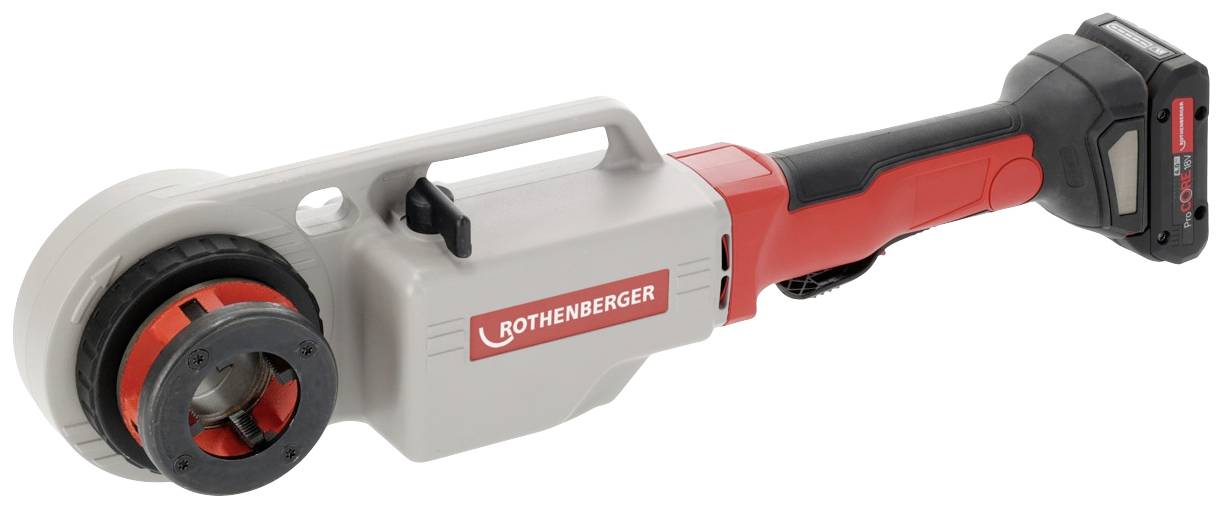

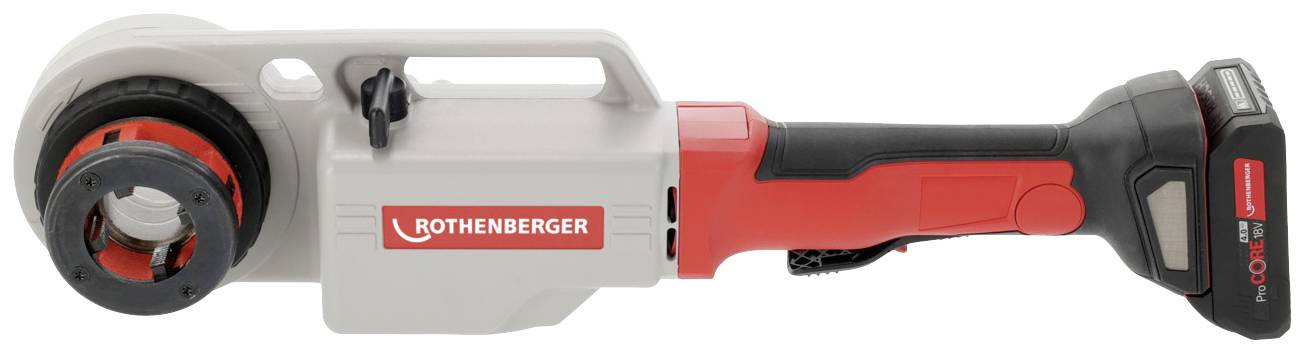

The SUPERTRONIC 2000 E EU, AMP with rechargeable battery is the cordless handheld electric thread cutting machine with a working range of 1/2-2". Fitted with a powerful brushless motor, the Supertronic enables more efficient and material-protecting working. The tool-less Speed-Lock cutting head receptacle provides for a fast insertion and a firm seating of the thread cutting heads. With up to 8 threads (2" BSPT) per battery charge and a compact rectangular design Ideal, this device is suitable for working in awkward locations and on workbenches. Sanitary, heating and air-conditioning technicians generate pipe threads according to EN 10226 (BSPT R) on steel pipes of the DIN EN 10255 M-H.
This text is machine translated.
This text is machine translated.
Features
- 4-times faster return thanks to return gear
- User-friendly work thanks to large forward and rewind switch
- Secure attachment of cutting heads by direct attachment with snap ring locking
- Thread cutting close to the wall through an outside cutting head receptacle
- High and constant transmission torque at full load
- Ideal for difficult-to-reach areas (corners, shafts)
- Secure hold in both directions of rotation through hardened, prismatic toothed counter piece
- Maintenance-friendly thanks to continuous lubrication and brushless motor
Scope of delivery
- SUPERTRONIC 2000 E BASE UNIT AMP
- Thread cutting jaws BSPT R 1/2"
- Thread cutting jaws BSPT R 3/4"
- BSPT R 1" thread cutting jaws
- Thread cutting jaws BSPT R 1.1/4"
- Thread cutting jaws BSPT R 1.1/2"
- BSPT R 2" thread cutting jaws
- Counter-holder
- ROFIX adapter
- ROCASE 6414, with insert for Supertronic 2000 E and thread cutting jaws
- RO BP18/4 rechargeable battery, amp, basic unit
- RO BC18 CHARGER, 230 V, AMP, EU
- ROCASE 4212 with insert for 2x rechargeable batteries, 1x charger
- User manual
