Rothenberger 1000004266
EAN:
Part number:
Item no:
Number
Total (€ 995.80 / piece)
€ 995.80
plus VAT.
14-day return policy included
Technical specifications
- Piston force 19 kN
- Press cycle time: 3 sec.
- Dim
(W x H) 395.0000 mm x 145.0000 mm
- Weight
4.5300
- Width
395.0000 mm
- Height
145.0000 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220864 Rothenberger 1000004266
Description

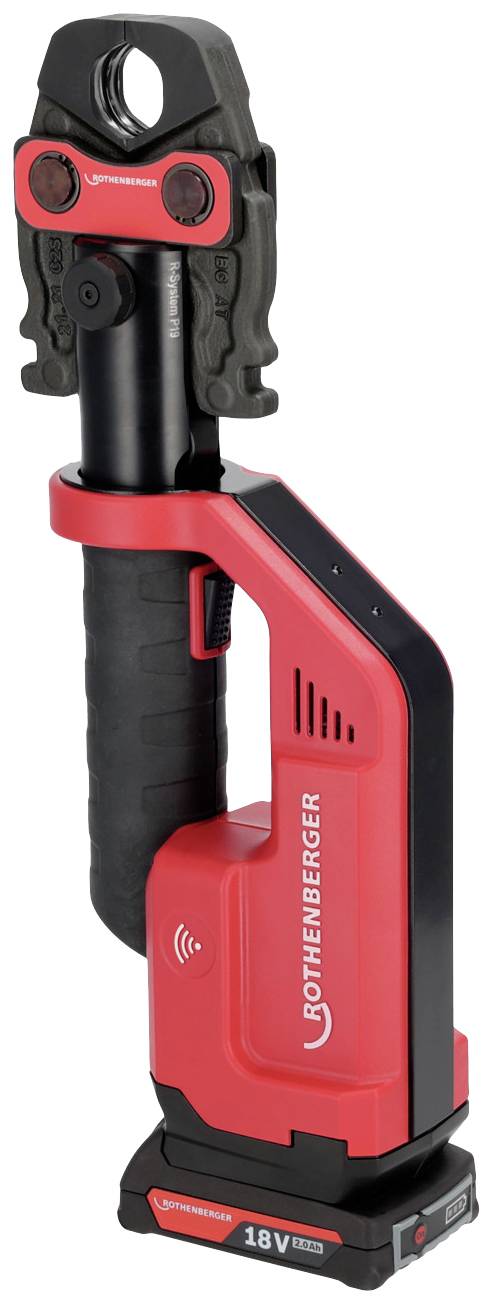

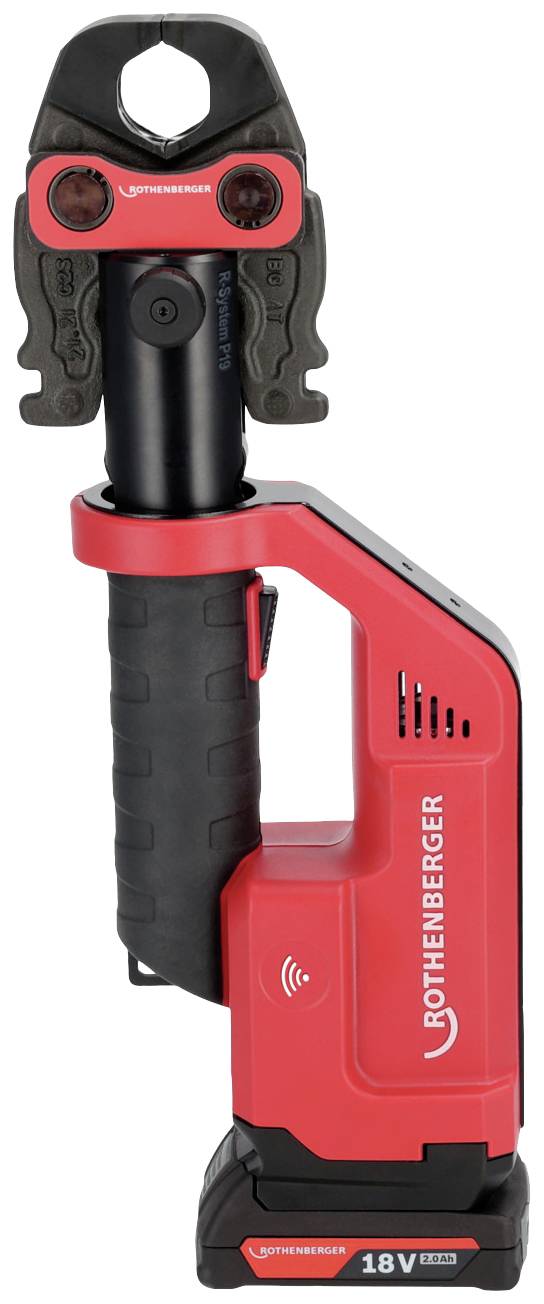

The electrohydraulic, radial press machine ROMAX COMPACT III AMPShare is suitable for Ideal for system-compliant crimping of fittings up to 35 mm (metal) or 40mm (plastic), even in forced layers. ROMAX COMPACT III AMPShare compresses fittings with a piston force of 19 kN and a press cycle of 3 seconds. Constant pressing force over the complete pressing cycle is guaranteed by the Constant Force Technology (CFT). Real-time data acquisition of relevant machine parameters and convenient production of press reports directly on site using Rothenberger APP through CONNECTIVITY. Through the optimized compact design and the perfectly balanced weight the installation work over longer stages becomes a ease.
This text is machine translated.
This text is machine translated.
Features
- Connected: Real-time press data acquisition via Rothenberger APP
- Fast 3-second crimping by means of effective pressure build-up
- Strong: Pressed fittings up to Ø 35 mm (metal) / Ø 40 mm (plastic)
- Comfortable: Perfectly balanced center of gravity makes possible a pleasant working
- Handy: Weighs only 2.5 kg and has a length of 34 cm
Scope of delivery
- ROMAX COMPACT III BASIC DEVICE
- User manual
- ROCASE 4414
- With no rechargeable battery
- Without charger
