Rothenberger 1000004281 Press
EAN:
Part number:
Item no:
Number
Total (€ 1,600.84 / piece)
€ 1,600.84
plus VAT.
14-day return policy included
Technical specifications
- Piston force 19 kN
- Press cycle time: 3 sec.
- Voltage 18 V
- Battery capacity 2 Ah
- Product type
Press
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220788 Rothenberger 1000004281 Press
Description

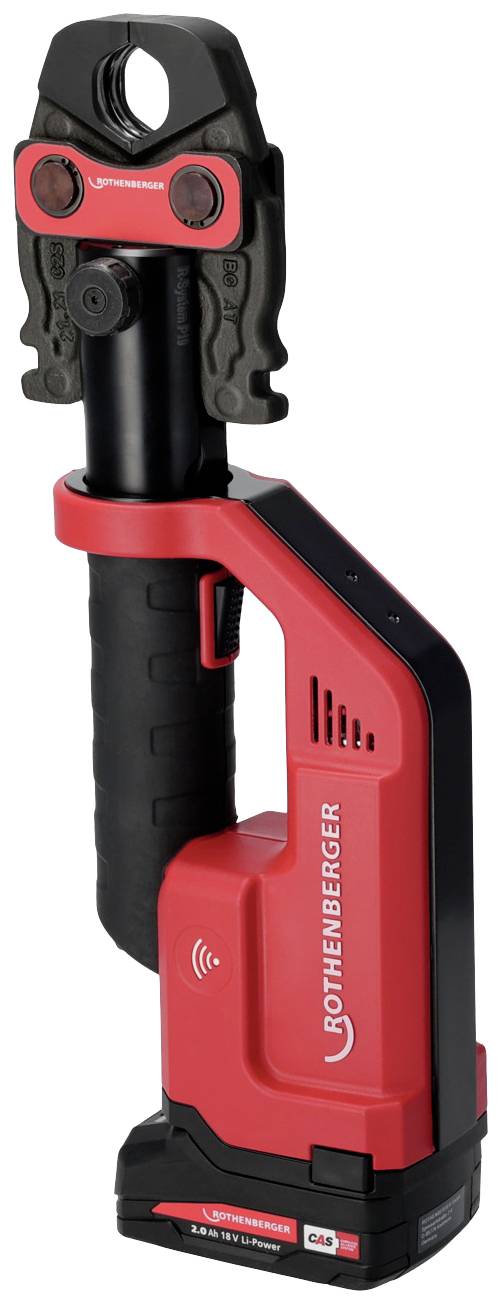

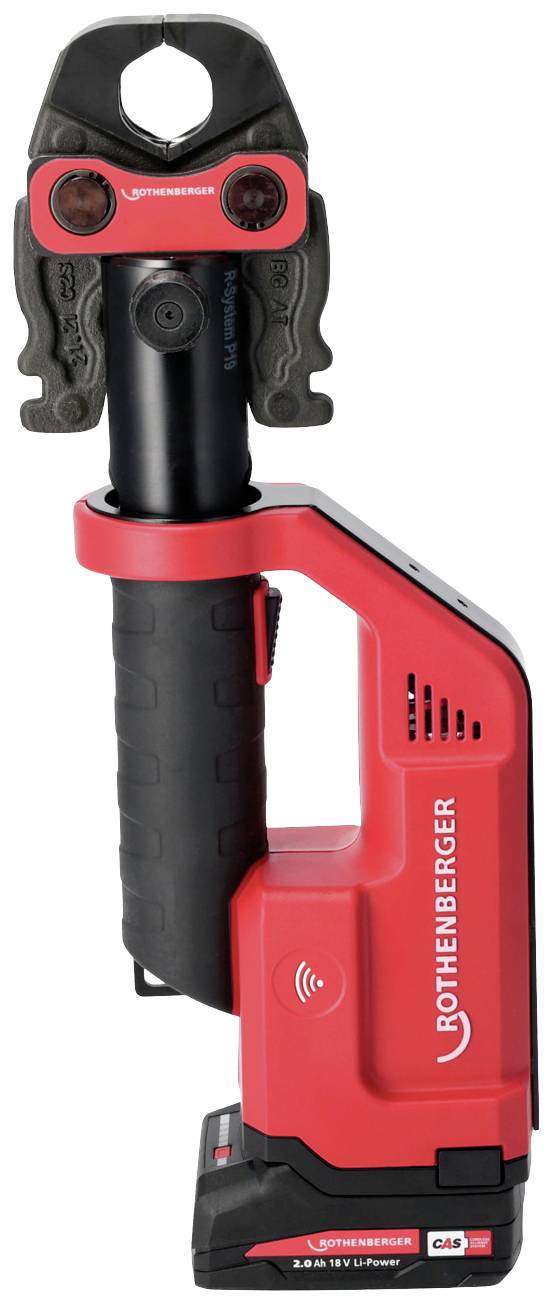

The ROMAX COMPACT III set EU includes the U contour press jaws in the sizes of 16-20-25 mm. The electrohydraulic, radial press machine ROMAX COMPACT III is suitable for Ideal for system-compliant crimping of fittings up to 35 mm (metal) or 40 mm (plastic), even in forced layers. ROMAX COMPACT III compresses fittings with a piston force of 19 kN and a press cycle of 3 seconds. Constant pressing force over the complete pressing cycle is guaranteed by the Constant Force Technology (CFT). Real-time data acquisition of relevant machine parameters and convenient production of press reports directly on site using Rothenberger APP through CONNECTIVITY. Through the optimized compact design and the perfectly balanced weight the installation work over longer stages becomes a ease.
This text is machine translated.
This text is machine translated.
Features
- Connected: Real-time press data acquisition via Rothenberger APP
- Fast 3-second crimping by means of effective pressure build-up
- Strong: Pressed fittings up to Ø 35 mm (metal) / Ø 40 mm (plastic)
- Comfortable: Perfectly balanced center of gravity makes possible a pleasant working
- Handy: Weighs only 2.5 kg and has a length of 34 cm
Scope of delivery
- ROMAX COMPACT III
- Compact crimping jaw, U, 16 mm
- Compact crimping jaw, U, 20 mm
- Compact crimping jaw, U, 25 mm
- 1x battery 18 V, 2 Ah
- 1x charger EU
- User manual
- ROMAX COMPACT III ROCASE
