Rothenberger 1000004824 Press
EAN:
Part number:
Item no:
Number
Total (€ 1,528.57 / piece)
€ 1,528.57
plus VAT.
14-day return policy included
Highlights & Details

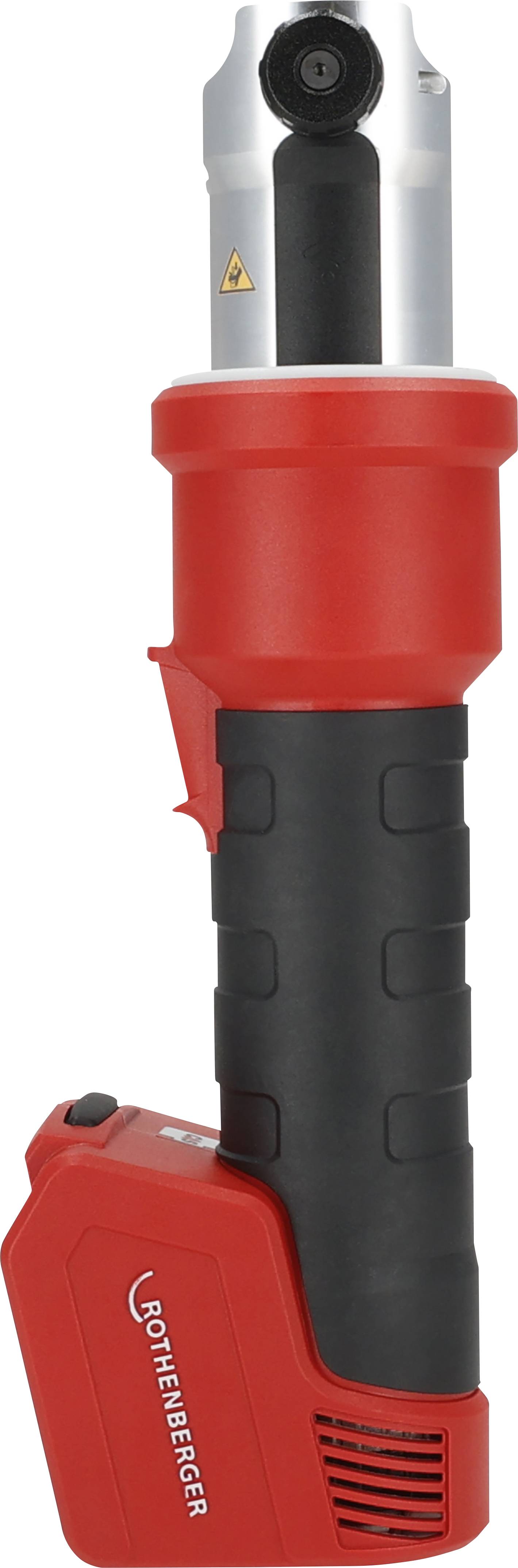

ROMAX NANO BASIC MACHINE CAS, ROCASE 4212
- First hybrid press machine on the market (NANO Ijaw or standard press jaws with 32 kN)
- Smallest and lightest 32kN machine (only 2.3 kg)
- ROMAX NANO is optimized for iJAWs
- Standard jaws interoperability (32kN mode only)
- Intelligent and networked
Technical specifications
- Voltage 18 V
- Operating temperature -10 °C - 60 °C
- Number of batteries: No rechargeable battery included
- Li-Ion/Li-Po battery system (rechargeable)
- Battery type: Rechargeable
- Press baking system: Ijaw
- CAS. System battery
- Piston force 32 - 34 kN
- Product type
Press
- Compatible with diameters of
1 - 108 mm
- Weight
2.3 kg
- Suitable for diameters of (max.)
108 mm
- Suitable for pipe diameter (min.)
1 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639917 Rothenberger 1000004824 Press
Description

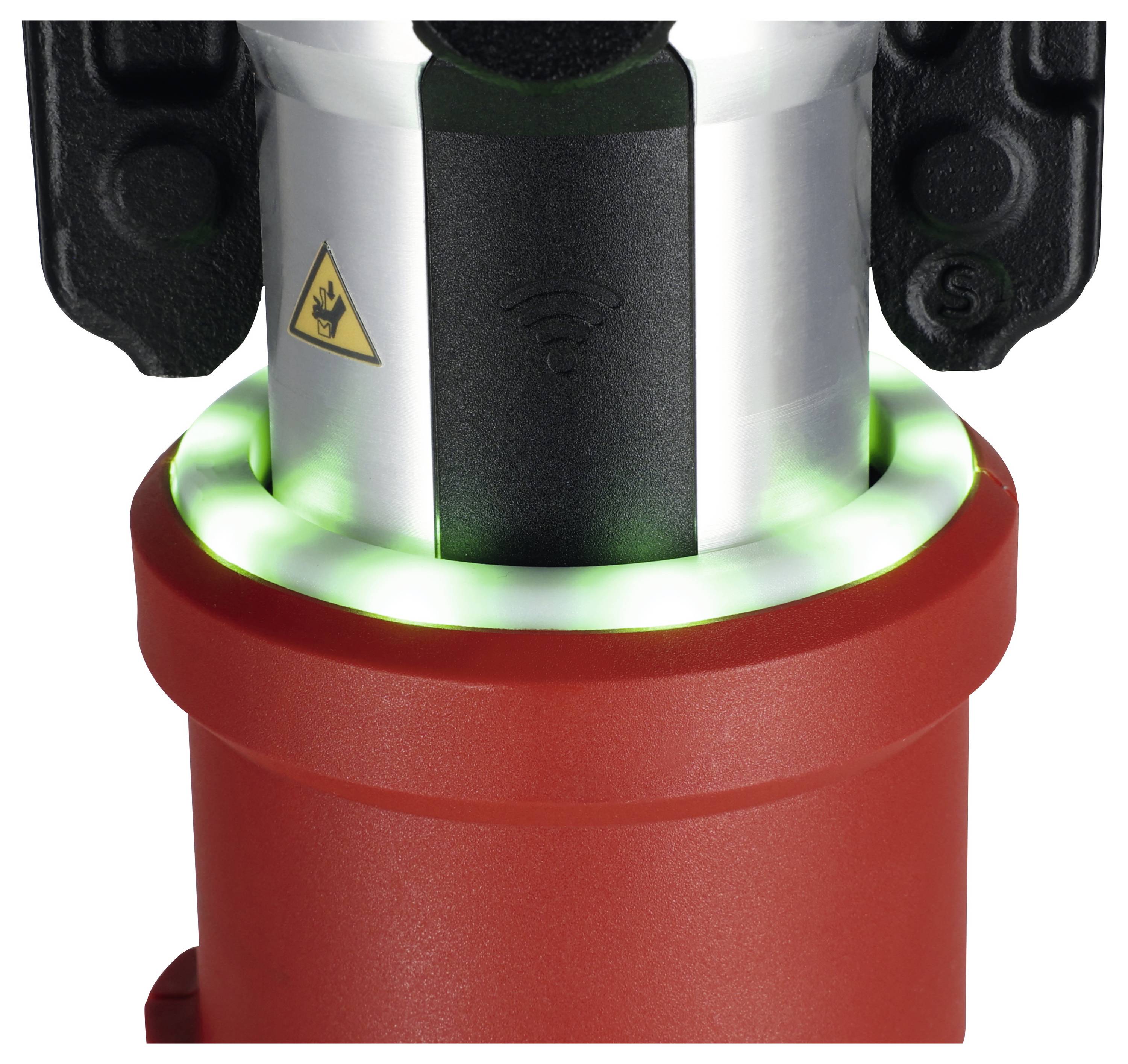

The ROMAX NANO CAS in ROCASE 4212 is the first hybrid press machine to combine two types of pressing force (NANO Ijaw or standard press jaws with 32 kN) in one machine. By using an electromechanical drive system, the ROMAX NANO could be optimized in terms of size (smallest 32kN machine) and weight (approx. 2.3 kg) to ensure accessibility for all installation conditions. The ROMAX NANO is also equipped with a sophisticated Smart connectivity concept consisting of RFID technology, LED HMI, APP and cloud services and increases both the user-friendliness of the machine and the user's work efficiency directly on the construction site. This intelligent press machine allows precise working in the working range up to 110 mm (system-related). Thanks to eDirectDrive technology and the 2in1 jaw bracket, which is suitable for both NANO iJAWS and Standard jaws, the application of variable pressing forces is possible.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ROMAX NANO Press Machine
- ROMAX NANO 32KN adapter
- User manual

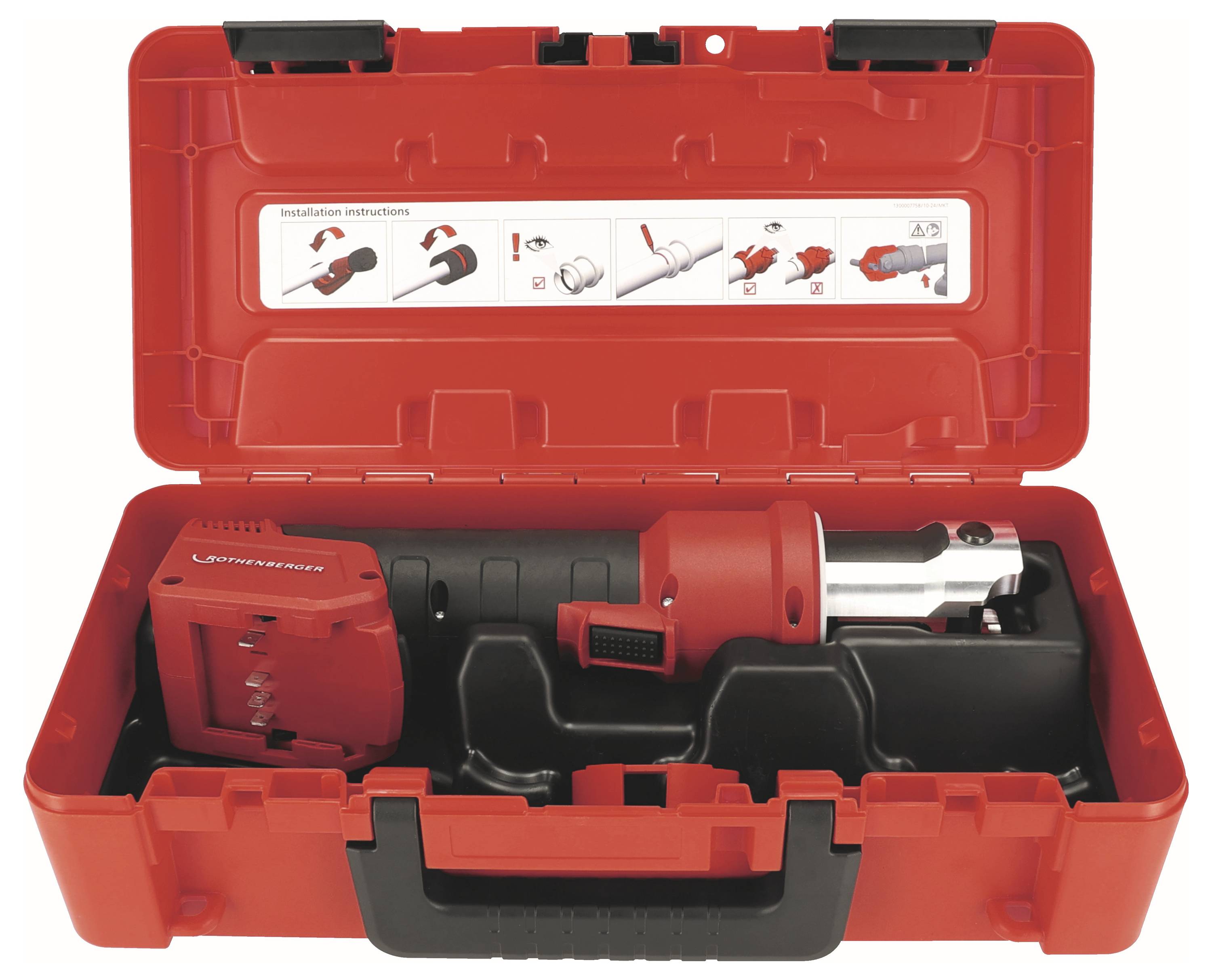

- ROCASE 4212
Hints
The ROMAX NANO CAS offers a working range of 0-108 mm owing to the eRotationDrive technology and the 2 in 1 jaw bracket, which is suitable for NANO iJAWS as well as standard jaws.
