1/4
Rothenberger 1000005046 Press
EAN:
Part number:
Item no:
Number
Total (€ 2,074.79 / piece)
€ 2,074.79
plus VAT.
14-day return policy included
Highlights & Details
ROMAX NANO iJAWS set, SV, 15-22-28mm, 2Ah, CAS
- First hybrid press machine on the market (NANO Ijaw or standard press jaws with 32 kN)
- Smallest and lightest 32kN machine (only 2.3 kg)
- ROMAX NANO is optimized for iJAWs
- Standard jaws interoperability (32kN mode only)
- Intelligent and networked
Technical specifications
- Voltage 18 V
- Working range diameter 0 - 108 mm
- Operating temperature -10 °C - 60 °C
- Number of batteries: 1 pieces
- Li-Ion/Li-Po battery system (rechargeable)
- Battery type: Rechargeable
- Press baking system: Ijaw
- CAS. System battery
- Li-Ion rechargeable battery
- Piston force 32 - 34 kN
- Battery capacity 2 Ah
- Product type
Press
- Compatible with diameters of
1 - 108 mm
- Suitable for diameters of (max.)
108 mm
- Suitable for pipe diameter (min.)
1 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639931 Rothenberger 1000005046 Press
Description
The ROMAX NANO Ijaw Set SV 15-20-26 EU CAS contains the pressure jaws of the SV contour in the sizes 16-20-26 mm and is thus suitable for Ideal for system-compliant crimping of fittings for metal pipe systems. ROMAX NANO CAS is the first hybrid press machine to combine two types of pressing force (NANO Ijaw or standard press jaws with 32 kN) in one machine. By using an electromechanical drive system, the ROMAX NANO could be optimized in terms of size (smallest 32kN machine) and weight (approx. 2.3 kg) to ensure accessibility for all installation conditions. The ROMAX NANO is also equipped with a sophisticated Smart connectivity concept, which consists of RFID technology, LED display and APP and increases both the user-friendliness of the machine and the work efficiency of the user directly on the construction site. This intelligent press allows precise working in the working range of 0-108 mm. The use of iJAWS and standard press jaws is made possible thanks to the eRotaDrive technology and the 2 in 1 jaw bracket, which is suitable for both NANO Ijaw and standard jaws.
This text is machine translated.
This text is machine translated.

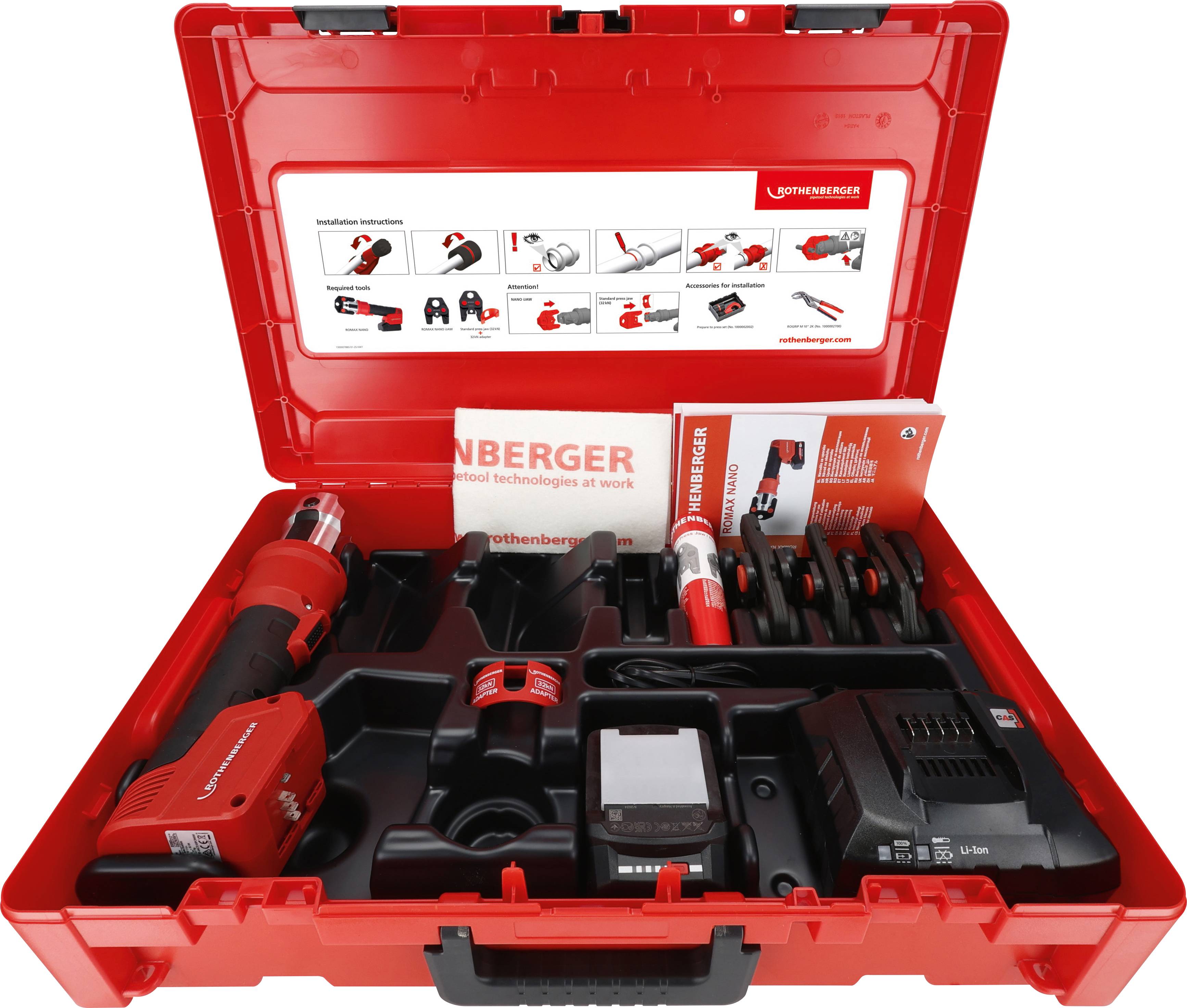

Scope of delivery
- ROMAX NANO
- Press jaw Ijaw, SV, 15 mm
- Press jaw Ijaw, SV, 20 mm
- Press jaw Ijaw, SV, 26 mm
- 18 V / 2 Ah rechargeable battery
- Charger EU
- ROMAX NANO 32KN adapter
- User manual
- ROCASE 6414
Hints
The ROMAX NANO CAS offers a working range of 0-108 mm owing to the eRotationDrive technology and the 2 in 1 jaw bracket, which is suitable for NANO iJAWS as well as standard jaws.
