Rothenberger 1000005056 Press ring set
EAN:
Part number:
Item no:
Number
Total (€ 452.94 / piece)
€ 452.94
plus VAT.
14-day return policy included
Highlights & Details
Standard press ring set, M, 15-22-28mm
- Locking position for single-handed positioning of the press ring on the fitting
- 180° swiveling allows a freely adjustable position of the press
- Compatibility to compact and standard intermediate jaw
- DURA LAZR TEC for 40% greater hardness and 100% more pressing cycles
- Flame-free connection: No more processing with open flame required
- Secure sealing: Reliable and permanent connection by 3-point crimping
- Fast, simple and economical installation
Technical specifications
- Product type
Press ring set
- Compatible with diameters of
15 - 28 mm
- Suitable for diameters of (max.)
28 mm
- Suitable for pipe diameter (min.)
15 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639935 Rothenberger 1000005056 Press ring set
Description
The high-quality pressing ring set standard of the contour M with intermediate jaw is specially designed and developed by Rothenberger for pressing applications on metallic piping systems (copper, steel, stainless steel). These press ring designs are equipped with Ideal user/user to crimp fittings in complex assembly situations in a system-compliant manner. Thanks to the Rothenberger DURA LAZR TEC® technology - an innovative, partial laser hardening method - precise and safe pressing is possible with a simultaneous increased service life. As a result, this results in reduced wear and a doubling of the crimp cycles compared to the non-treated press tools. Furthermore, long-term corrosion protection supports the resistance of the crimp rings/jaws. On the basis of the use of a special high-capacity steel, the Rothenberger press ring sets are suitable for all press machines on the market with a constant axial thrust force of 19 kN or 32 kN. The set includes the standard thrust rings for the M15, M22, and M28 contours.
This text is machine translated.
This text is machine translated.

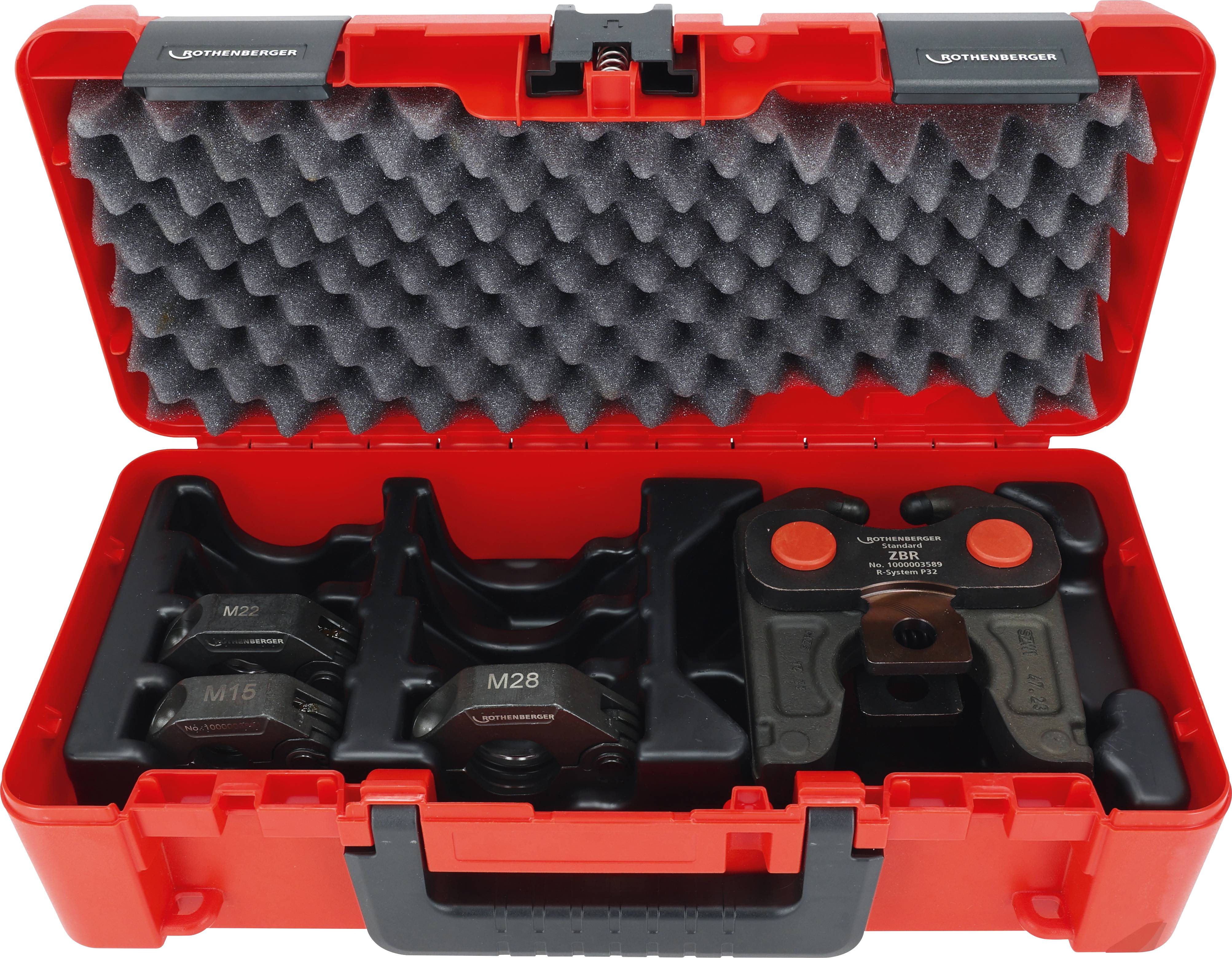

Scope of delivery
- Pressing ring, standard, M, 15mm
- Pressing ring, standard, M, 22 mm
- Crimp ring, standard, M, 28mm
- ROCASE
Hints
The standard crimp rings for system-compliant crimping of fittings for metallic piping systems (copper, steel, stainless steel) in the application area 15-28 mm.
